Description

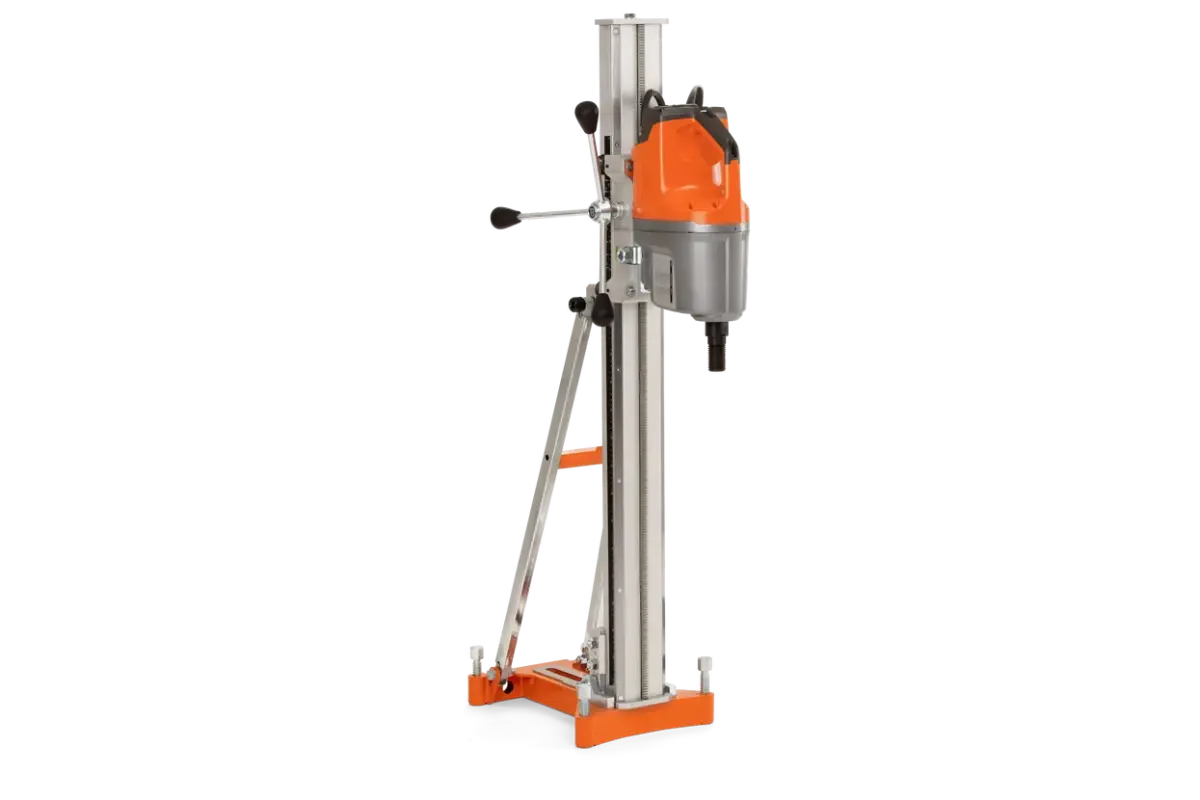

The Husqvarna DM 700 is the most powerful electric drill motor in our range, designed for all-day use by professional drilling contractors.
It is equipped with a maintenance-free, water-cooled 8 hp (6 kW) permanent magnet high-frequency motor, delivering extremely high torque to handle large drilling dimensions and depths. The intelligent motor control software enables optimized RPMs for a wide range of drilling diameters, from 3-24 in (80 to 600 mm).
Specifications
| Specification | Details |
|---|---|
| Rated Input Power | 8 hp |
| Weight | 30.8 lbs. |
| Drill Bit Diameter (with stand, max) | 24 in |
| Recommended Drill Bit Diameter (min) | 3.2 in |
Feature Overview
- Higher productivity
- Adjustable with wide RPM range
- Extremely powerful
- Minimal service needs
- Durable and ergonomic design
- Drill with maximum pressure
- Torque boost
- Elgard™
- Load indicator
| Rated input power | 8 hp |
| Phases | 1 and 3 ph |
| Power source | Corded |
| Equipment | |
| Drill bit diameter with stand, max | 24 in |
| Recommended drill bit diameter, min | 3.2 in |
| Coolant | Wet |
| Transmission | |
| Number of gearbox speeds | 2 |
| Numbers of electronical gearbox speeds | 9 |
| Spindle speed unloaded gear 1 | 310 rpm |
| Spindle speed unloaded gear 2 | 675 rpm |
| Product data | |
| Water connector | G 1 / 4″ |
| Water flow, min | 0.13 gal (US)/min |
| Water pressure, max | 116 psi |
| Spindle thread, outer | 1 1/4″ 7 UNC |
| Dimensions | |
| Product size length | 18 in |
| Product size width | 6.5 in |
| Product size height | 8.5 in |
| Weight | 30.8 lbs |
| Packaging length (Calc) | 20.669 in |
| Packaging width (Calc) | 10.827 in |
| Packaging height (Calc) | 10.433 in |
| Article gross weight (Calc) | 37.479 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 113 dB(A) |
| Sound power level, measured | 112 dB(A) |
| Sound pressure level at operators ear (LpA) | 98 dB(A) |
