Description

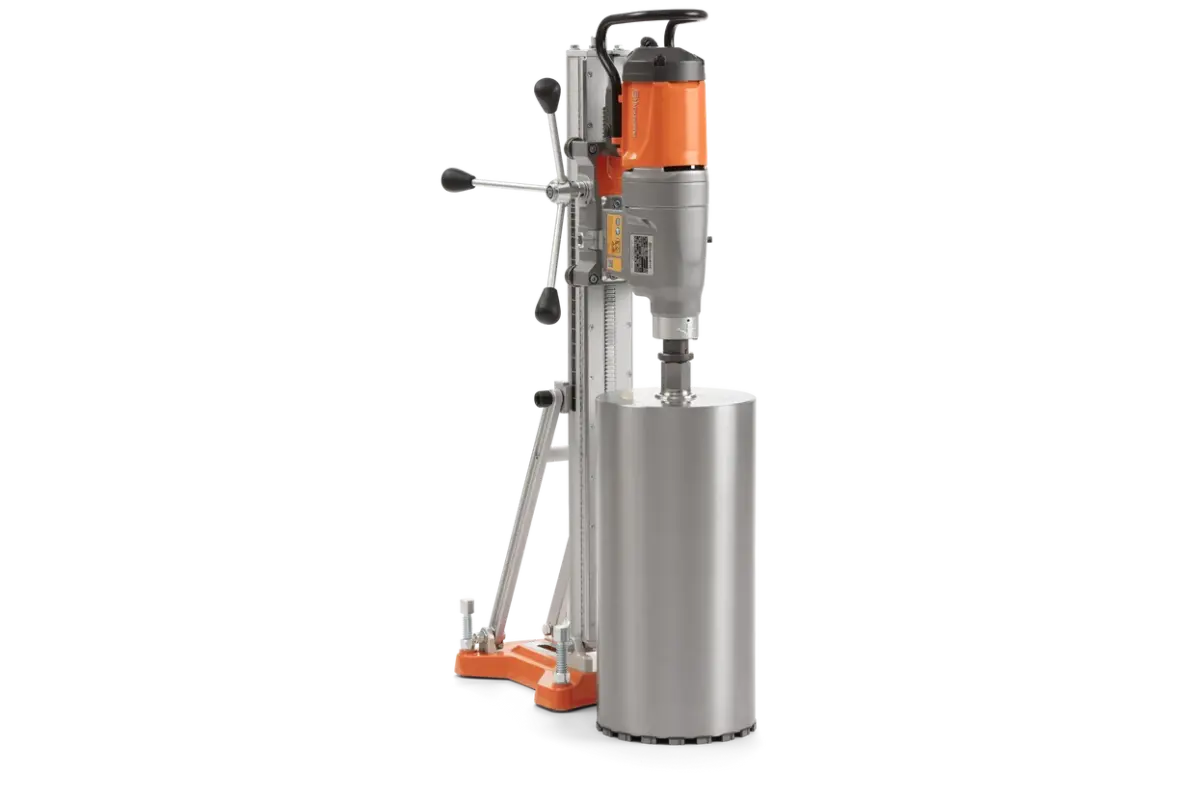

DM 430 is a powerful and sturdy electric core drill for medium to heavy core drilling where reliability and high productivity are needed, especially with large diameter core bits.
Recommended diameter 100-450 mm. With an aluminum motor housing to withstand tough handling and a carrying handle for ergonomic usage and additional impact protection of the drill motor. Equipped with Embedded Connectivity, an enhanced version of Husqvarna Fleet Services™ for data analytics and insights into the health of the machine. Suitable for water evacuation, ventilation, angle drilling, stitch drilling, and when you need to cut close to corners.
Specifications
| Specification | Details |
|---|---|
| Rated Input Power | 4.29 hp |
| Weight | 34.2 lbs |
| Drill Bit Diameter (with stand, max) | 18 in |
| Recommended Drill Bit Diameter (min) | 4 in |
Feature Overview
- Sturdy and durable
- Ergonomic
- Optimized RPMs
- Embedded Connectivity
- Quick connection
- Quick-release washer
- Functional design
- Load indicator
- Elgard™
- Reliable gearbox
- Easy start with reduced speed
- Angle drilling
- Barriers
- Horizontal drilling
- Stitch drilling
- Vertical drilling
- Water evacuation
| Rated input power | 4.29 hp |
| Frequency | 50-60 Hz |
| Voltage | 100-120 V |
| Phases | 1 ph |
| Power source | Corded |
| Equipment | |
| Drill bit diameter with stand, max | 18 in |
| Recommended drill bit diameter, min | 4 in |
| Coolant | Wet |
| Transmission | |
| Number of gearbox speeds | 3 |
| Spindle speed unloaded gear 1 | 250 rpm |
| Spindle speed unloaded gear 2 | 510 rpm |
| Spindle speed unloaded gear 3 | 800 rpm |
| Product data | |
| Water connector | G 1 / 4″ |
| Water pressure, max | 43.5 psi |
| Spindle thread, outer | 1 1/4″ 7 UNC |
| Dimensions | |
| Product size length | 23 in |
| Product size width | 5.5 in |
| Product size height | 7.3 in |
| Weight | 34.2 lbs |
| Packaging length (Calc) | 26.181 in |
| Packaging width (Calc) | 10.039 in |
| Packaging height (Calc) | 11.811 in |
| Article gross weight (Calc) | 38.581 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 112 dB(A) |
| Sound power level, measured | 110 dB(A) |
| Sound pressure level at operators ear (LpA) | 92 dB(A) |
