Description

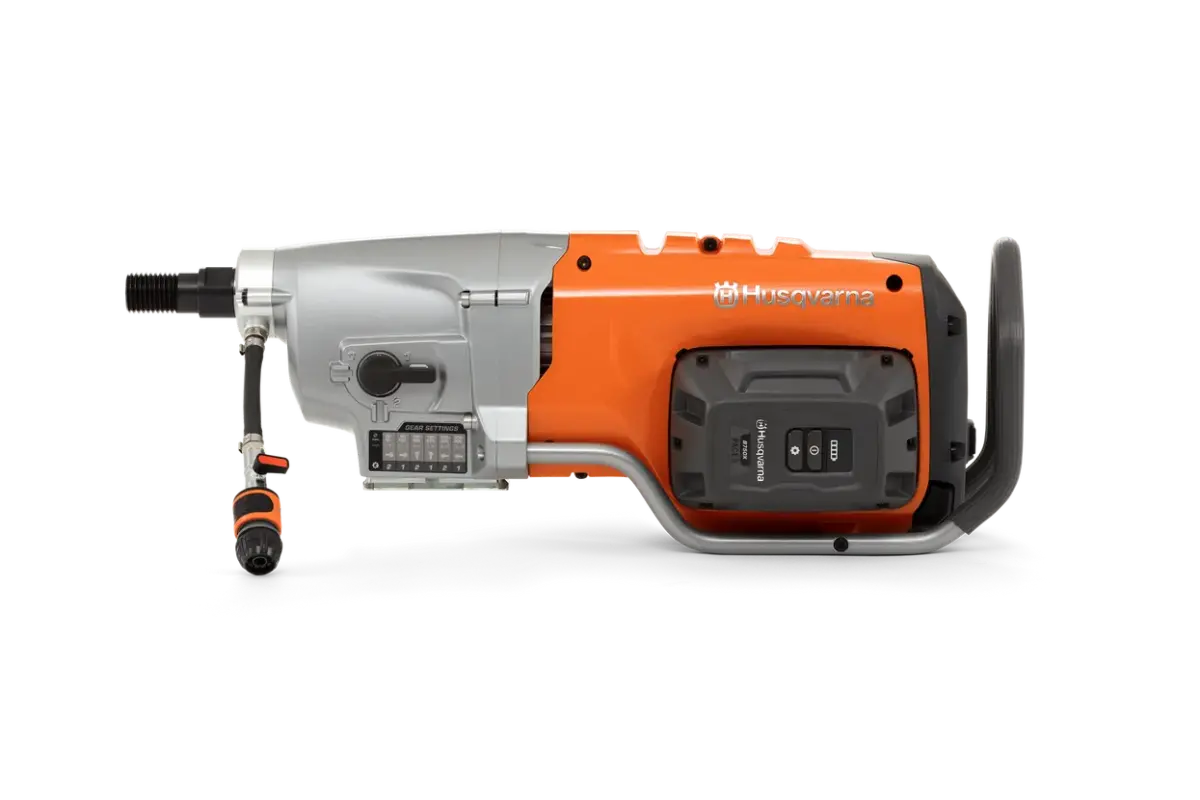

DM 1 PACE is a powerful battery core drill, designed for stand-mounted operation and part of the PACE battery system (94V).
It is compatible with the DS 500 drill stand and, together with the DE 120 H PACE, creates an effective solution. Cable-free operation eliminates the need for electric outlets or heavy extension cords, allowing you to start work immediately at any job site without delays.
Feature Overview
- Zero CO₂ emissions during use
- High productivity and efficiency
- One drill motor for most applications
- Longer lifetime and durability
- Low cost of ownership
- User-friendly
- Part of the PACE battery ecosystem
- Strong resource-smart plastic
| Motor type | BLDC (brushless) |
| Output power | 3.2 hp |
| Power source | Battery |
| Battery eco system | PACE |
| Equipment | |
| Drill bit diameter with stand, max | 16 in |
| Recommended drill bit diameter, min | 1 in |
| Transmission | |
| Number of gearbox speeds | 3 |
| Numbers of electronical gearbox speeds | 2 |
| Spindle speed unloaded gear 1 | 234 rpm |
| Spindle speed unloaded gear 2 | 431 rpm |
| Spindle speed unloaded gear 3 | 888 rpm |
| Product data | |
| Water connector | Gardena Male |
| Water pressure, max | 43.5 psi |
| Spindle thread, inner | G 1/2″ |
| Spindle thread, outer | 1 1/4″ -7 UNC |
| Dimensions | |
| Product size length | 26.5 in |
| Product size width | 6.8 in |
| Product size height | 9.3 in |
| Weight | 26 lbs |
| Packaging length (Calc) | 30.315 in |
| Packaging width (Calc) | 10.039 in |
| Packaging height (Calc) | 13.189 in |
| Article gross weight (Calc) | 33.51 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 109.1 dB(A) |
| Sound power level, measured | 109.1 dB(A) |
| Sound pressure level at operators ear (LpA) | 93.4 dB(A) |
