SafeLink Bases

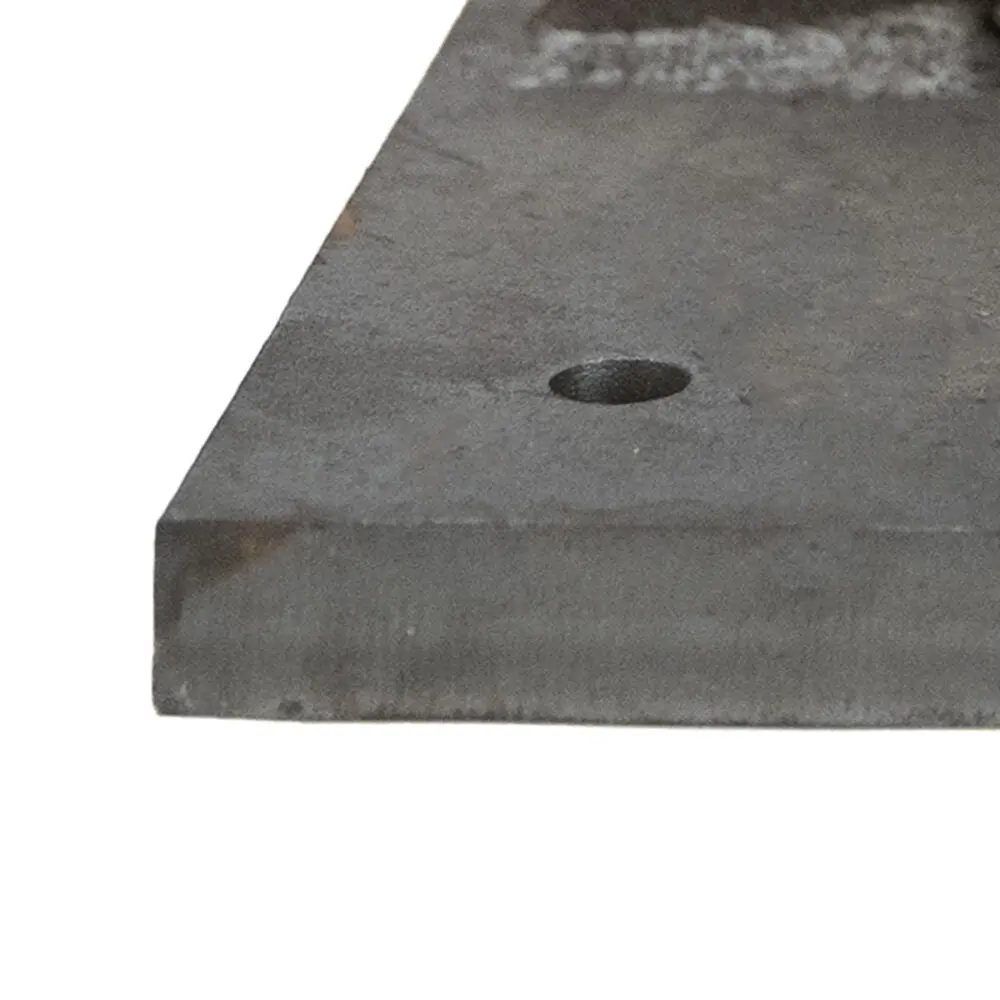

The Weld-on SafeLink Post Baseplate is designed for use with the Safewaze SafeLink HLL System. Mounts securely to steel structures and is used with our 7.5′ aluminum post.
Features:
- Use with FS-EX5501-5 aluminum posts
- For steel bolt installation:
– (4) 1/2” grade 8 bolts with locking hardware - For steel weld installation, must be installed by an AWS certified welder
Specifications:
| Materials: | 3/4″ (19.1 mm) Unplated steel |
| Weight: | 53 lbs. |
| Height: | 12.75″ |
| Base Dimensions: | 12″ x 12″ |
| ANSI Weight Capacity: | 130-310 lbs. (59- 141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| OSHA Standards: | 1926.502, 1910.66 |
