Description
SafeLink Bases

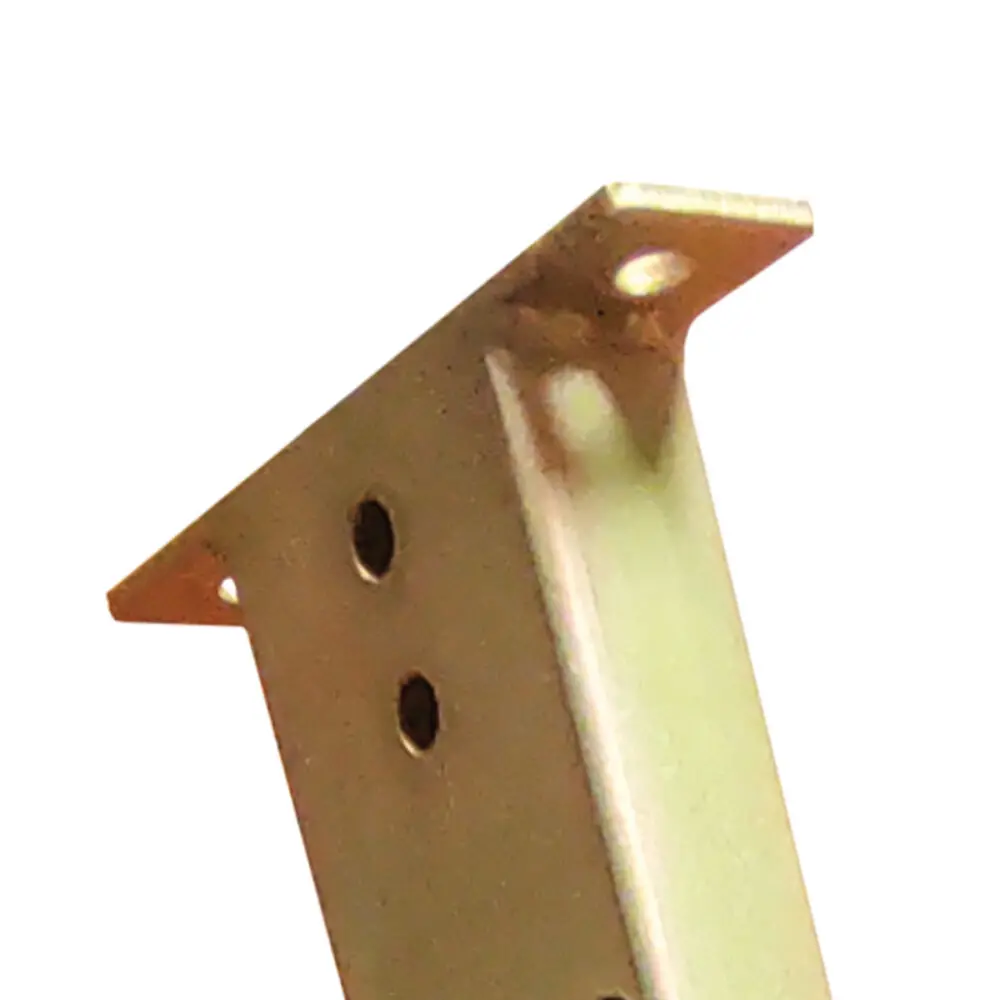

The SafeLink 42″ I-Beam Stanchion serves as the anchor or intermediate post for temporary horizontal lifeline systems. Versatile system can be configured as needed in single or multi-spans up to 65′ (19.8 m), increasing user flexibility and job site productivity.
Features:
- Ideal for leading edge and low clearance
- Durable long-lasting construction
- Easy bolt and wingnut installation
- Fits most HLL systems
- Versatile use as single or multi-span
- Maximum 2 users per span
- Adjustable clamps mount to various size I-beams [4″-12″, 4″-18″, 4″-24″]
- Fits I-beam flanges up to 2-1/4″ thick
- Includes 36″ tall upright (total stanchion height 42″)

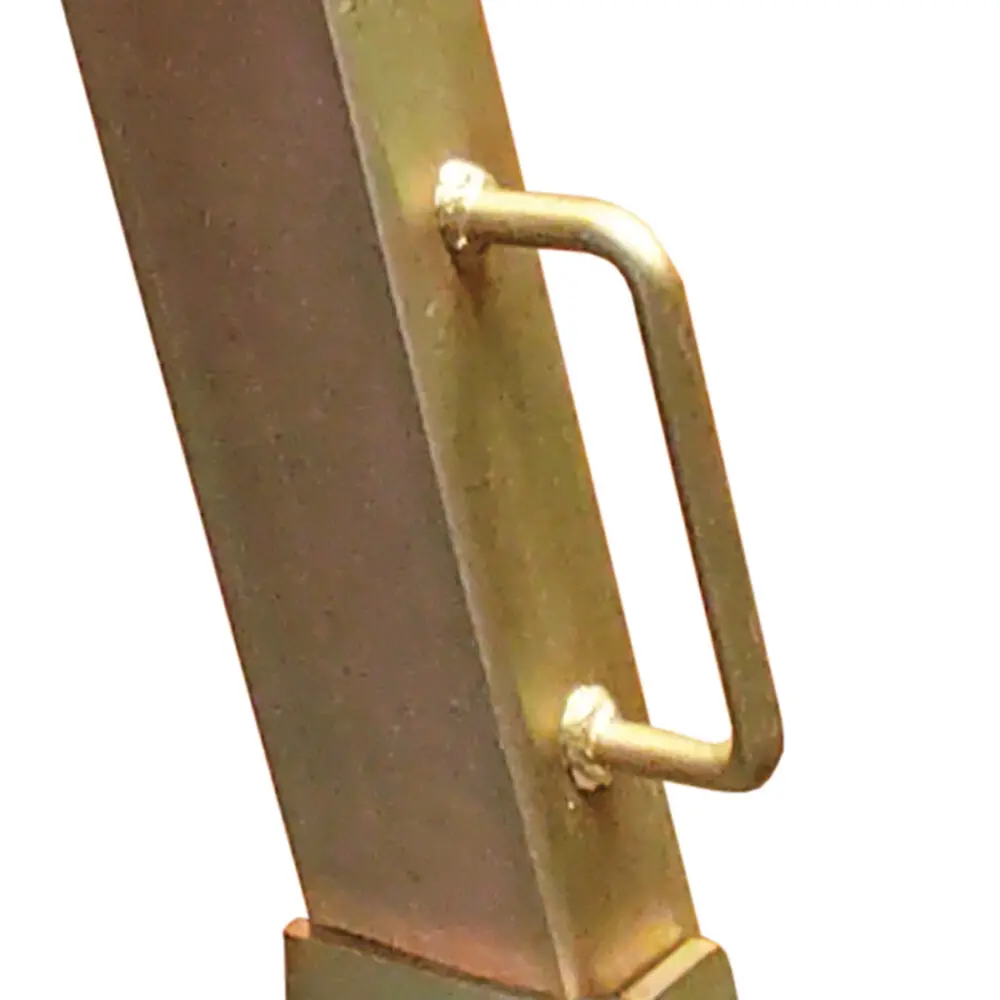

- Convenient built-in carrying handle
Specifications:
| Materials: | Zinc plated steel, galvanized steel |
| Weight: | 36.5 lbs. (16.5 kg) |
| Clamp Length: | Mounts to 4-12″ I-beams / Mounts to 4-18″ I-beams / Mounts to 4-24″ I-beams |
| Weight Capacity: | 130-310 lbs. (59-141 kg) |
| System Capacity: | Maximum 2 users per span |
| OSHA Standards: | 1910.66, 1926.502 |
