Description

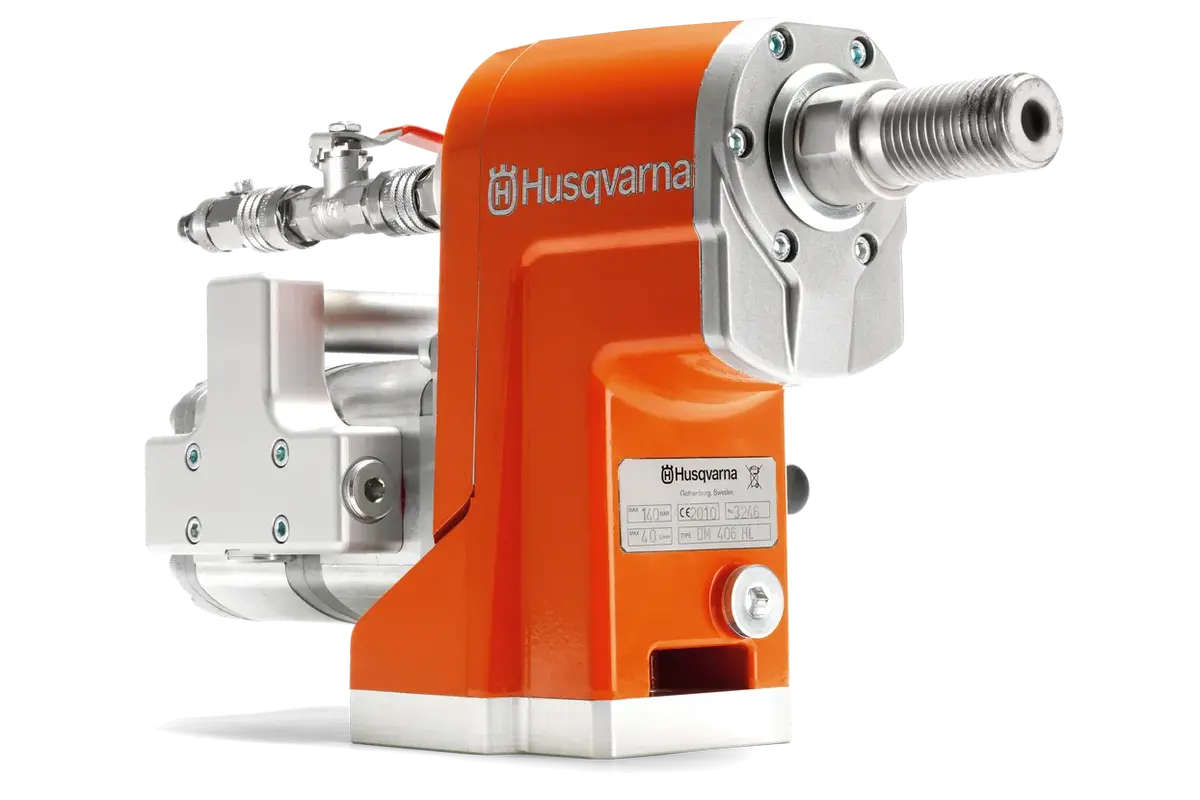

DM 406 H is our powerful hydraulic core drill for drilling holes up to 24 in. diameter | Stand sold separately
An excellent choice for heavy-duty core drilling applications where high production rates are needed, especially with large diameter core bits. The hydraulic speed can be changed while drilling, making the DM 406 H efficient and very easy to use. Suitable for large and deep holes, waste evacuation pipes and stitch drilling in a variety of materials including reinforced concrete.
- Drill bit diameter with stand, max
- 25.6 in
- Hydraulic pressure, max
- 2030 psi
Core Rig Features
Want to take a closer look? Learn more about the product in depth by exploring its features and benefits.
Speed regulation during drilling
Six different spindle speeds for optimum drilling performance.
Optimal speed for each application
Six-speed gearbox provides a wide rpm range for all applications.
| Rated input power | 125 hp |
| Power source | Hydraulic |
| Equipment | |
| Drill bit diameter with stand, max | 25.6 in |
| Recommended drill bit diameter, min | 1.97 in |
| Drill bit diameter, max | 26 in |
| Coolant | Wet |
| Transmission | |
| Number of gearbox speeds | 2 |
| Spindle speed unloaded gear 1 | 340 rpm |
| Spindle speed unloaded gear 2 | 1,400 rpm |
| Product data | |
| Water connector | R 1 / 2″ |
| Water pressure, max | 116 psi |
| Spindle thread, outer | 1 1/4″ 7 UNC |
| Hydraulics | |
| Hydraulic pressure, max | 2,030 psi |
| Dimensions | |
| Product size length | 10.2 in |
| Product size width | 8.3 in |
| Product size height | 20.5 in |
| Weight | 35 lbs |
| Packaging length (Calc) | 22.047 in |
| Packaging width (Calc) | 9.055 in |
| Packaging height (Calc) | 15.551 in |
| Article gross weight (Calc) | 46.297 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 113 dB(A) |
| Sound power level, measured | 112 dB(A) |
| Sound pressure level at operators ear (LpA) | 98 dB(A) |
