Description

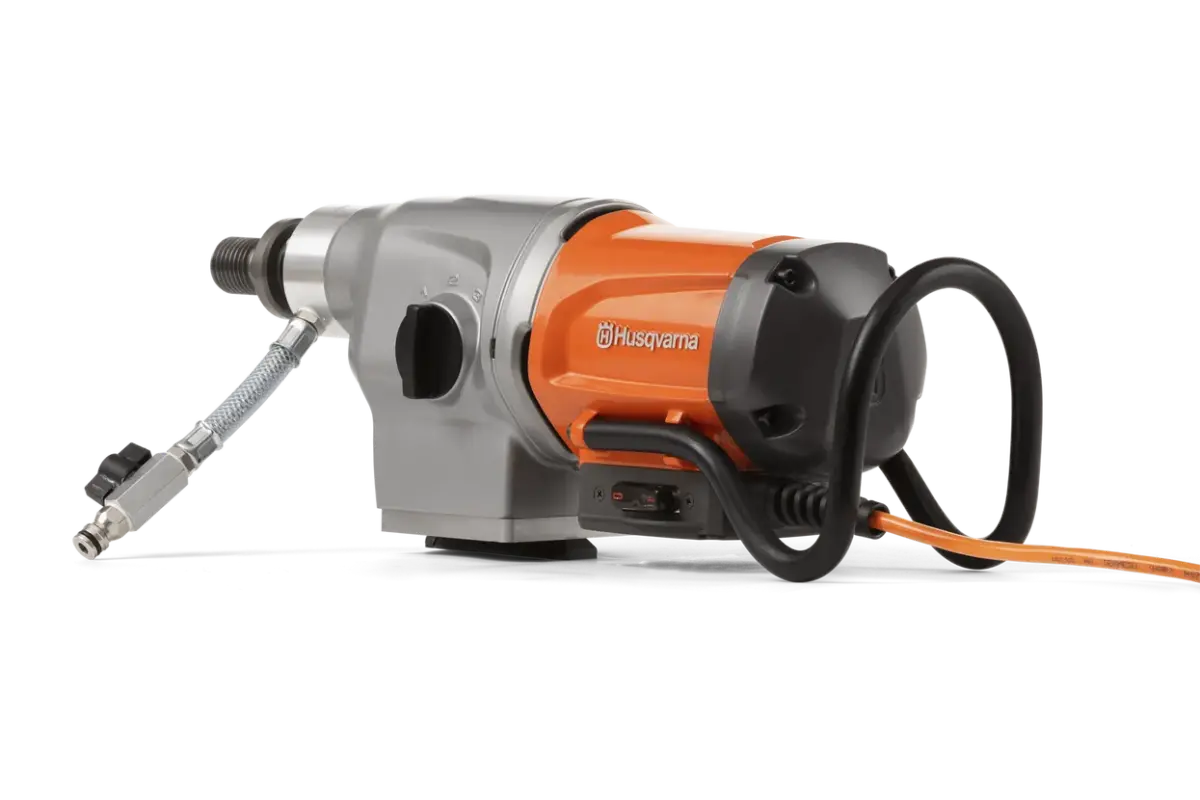

DM 400 is a powerful and sturdy electric core drill for medium to heavy core drilling where reliability and high productivity is needed.

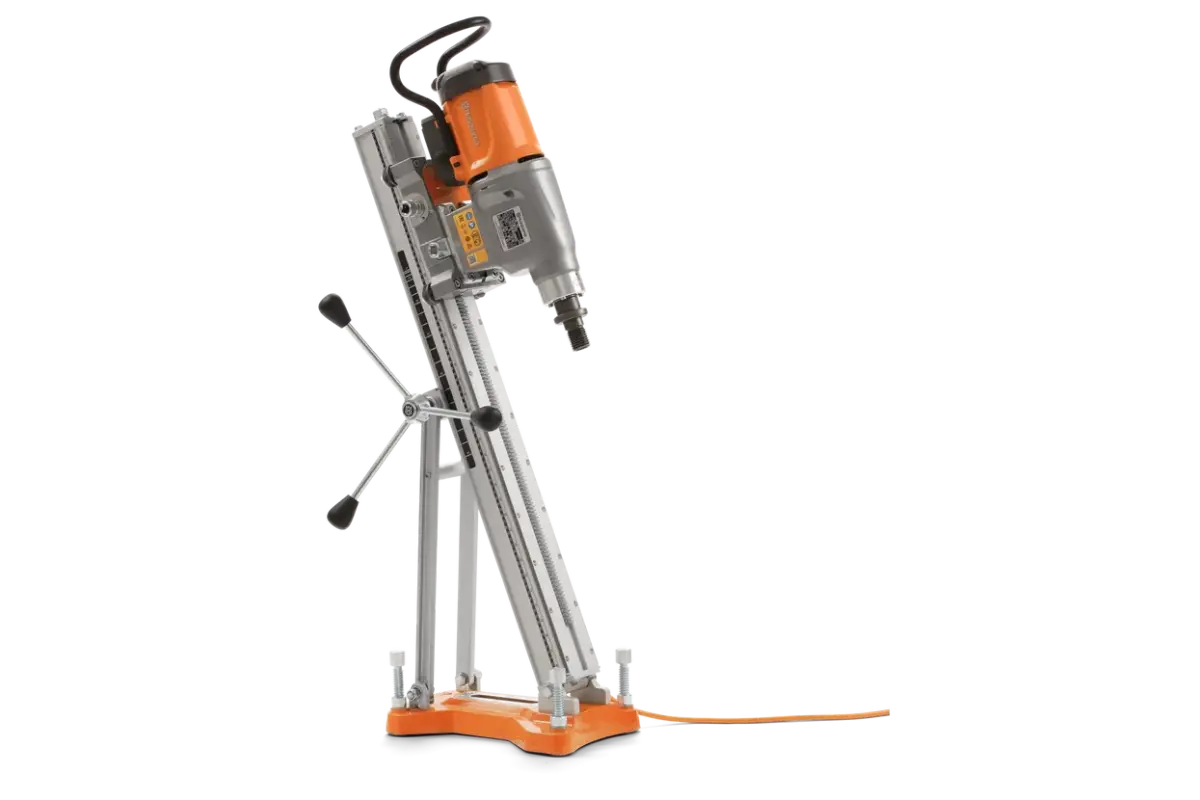

Recommended diameter 55-350 mm. With aluminum motor housing to withstand tough handling and a carrying handle for ergonomic usage and additional impact protection of the drill motor. Equipped with Embedded Connectivity, an enhanced version of Husqvarna Fleet Services™ for data analytics and insights into the health of the machine. Suitable for water evacuation, ventilation, angle drilling , stitch drilling and when you need to cut close to corners.
FEATURE OVERVIEW
- Sturdy and durable
- Ergonomic
- Optimized RPM’s
- Embedded Connectivity
- Quick connection
- Quick-release washer
- Functional design
- Load indicator
- Elgard™
- Reliable gearbox
- Easy start with reduced speed
- Angle drilling
- Barriers
- Horizontal drilling
- Stitch drilling
- Water evacuation
- Vertical drilling
TOP SPECIFICATIONS
Power source – CordedRated input power – 4.29 hpWeight – 31 lbsDrill bit diameter with stand, max14 in
ALL PRODUCTS SPECIFICATIONDM 400 |
DM 400 100-120V | 1-PH | 50-60HZ | US | 1 1/4″967 91 03‑03 |
|---|---|
| MOTOR | |
| Rated input power | 4.29 hp |
| Frequency | 50-60 Hz |
| Voltage | 100-120 V |
| Phases | 1 ph |
| Power source | Corded |
| EQUIPMENT | |
| Drill bit diameter with stand, max | 14 in |
| Recommended drill bit diameter, min | 2 in |
| Coolant | Wet |
| TRANSMISSION | |
| Number of gearbox speeds | 3 |
| Spindle speed unloaded gear 1 | 420 rpm |
| Spindle speed unloaded gear 2 | 820 rpm |
| Spindle speed unloaded gear 3 | 1,250 rpm |
| PRODUCT DATA | |
| Water connector | G 1 / 4″ |
| Water pressure, max | 43.5 psi |
| Spindle thread, outer | 1 1/4″ 7 UNC |
| DIMENSIONS | |
| Product size length | 21.5 in |
| Product size width | 5.5 in |
| Product size height | 7.3 in |
| Weight | 31 lbs |
| SOUND AND NOISE | |
| Sound power level, guaranteed (LWA) | 112 dB(A) |
| Sound power level, measured | 110 dB(A) |
| Sound pressure level at operators ear | 92 dB(A) |
