Description

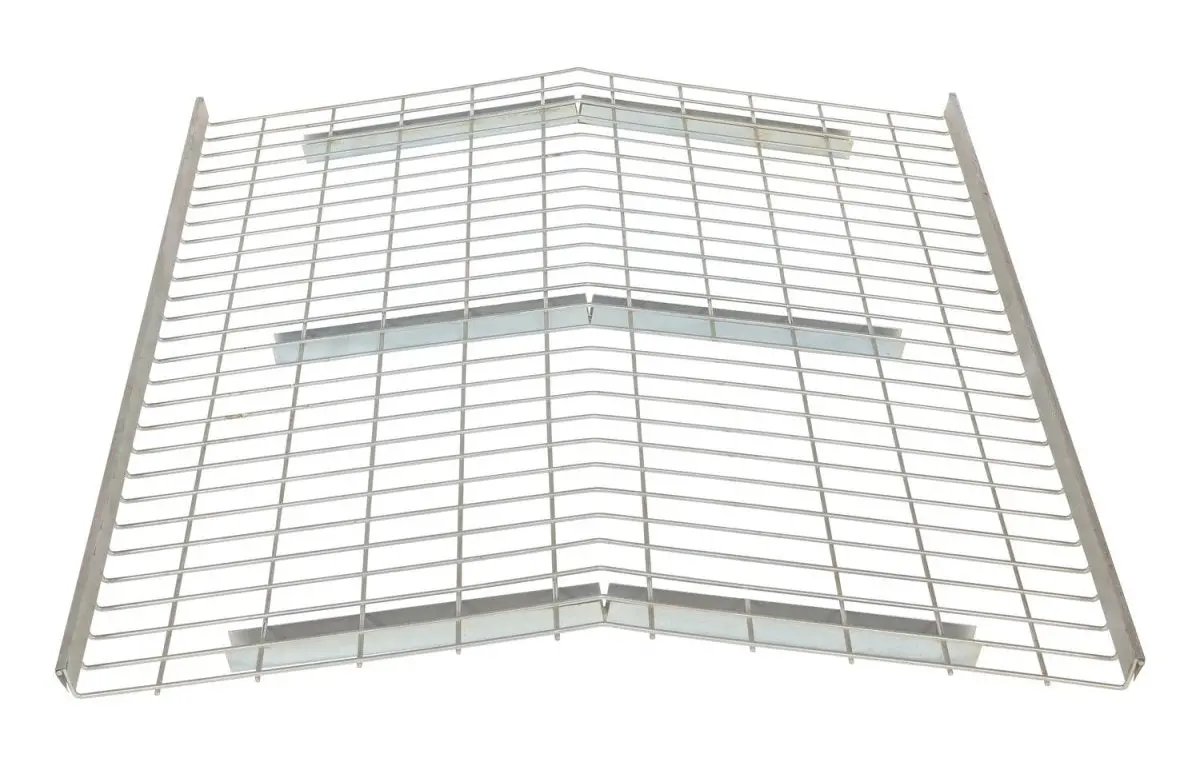

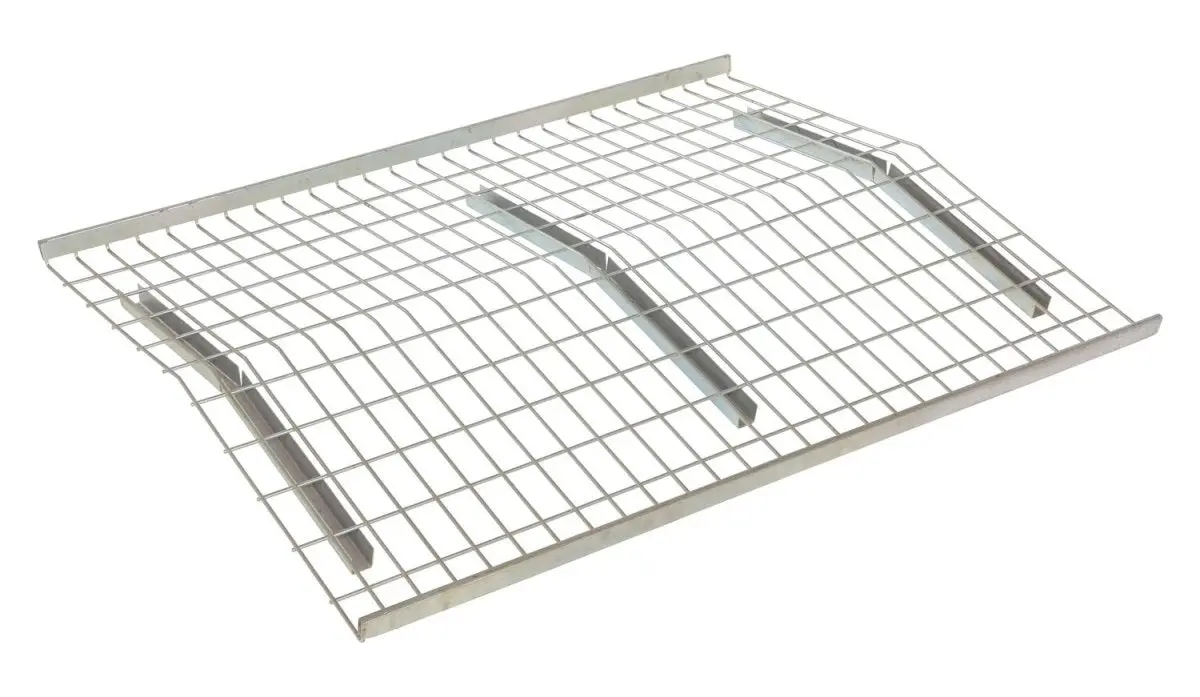

Add convenience, visibility and efficiency to your rack. By sloping the decking you help the user do their job.
The 6 gauge wire mesh provide 650 lbs. (uniformly distributed) capacity. Slope is 4-1/2″ in 21″. Designed for our 42″ deep x 1-1/2″ step type pallet rack beam. Powder coat finish.
|
Crown Pallet Rack Decking |
||||||
| Model | Image | Decking Depth |
Decking Length |
(2) Pieces Required For Beam Length |
Wt. (lbs) |
|
| SWMD-4246 |  |
   |
42″ | 46″ | 96″ | 24 |
| SWMD-4252 |  |
|
42″ | 52″ | 108″ | 25 |
| SWMD-4258 |  |
|
47-9/16″ | 58″ | 120″ | 26 |
KEY: = Approval Drawing — = Warranty — = Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
