Description
Dump Height 6’8″
Rated Output – 21HP
Operating Height – 2955 LBS.
AS12 Equipped with Tilt-up Operators Compartment, Pilot-operated Joystick Controls, Two Speed Travel, Aux. Hydraulics, 23×8.5-12 Tires, Universal Quick Attach, Push Button Boom Arm Float, 44″ Smooth Bucket

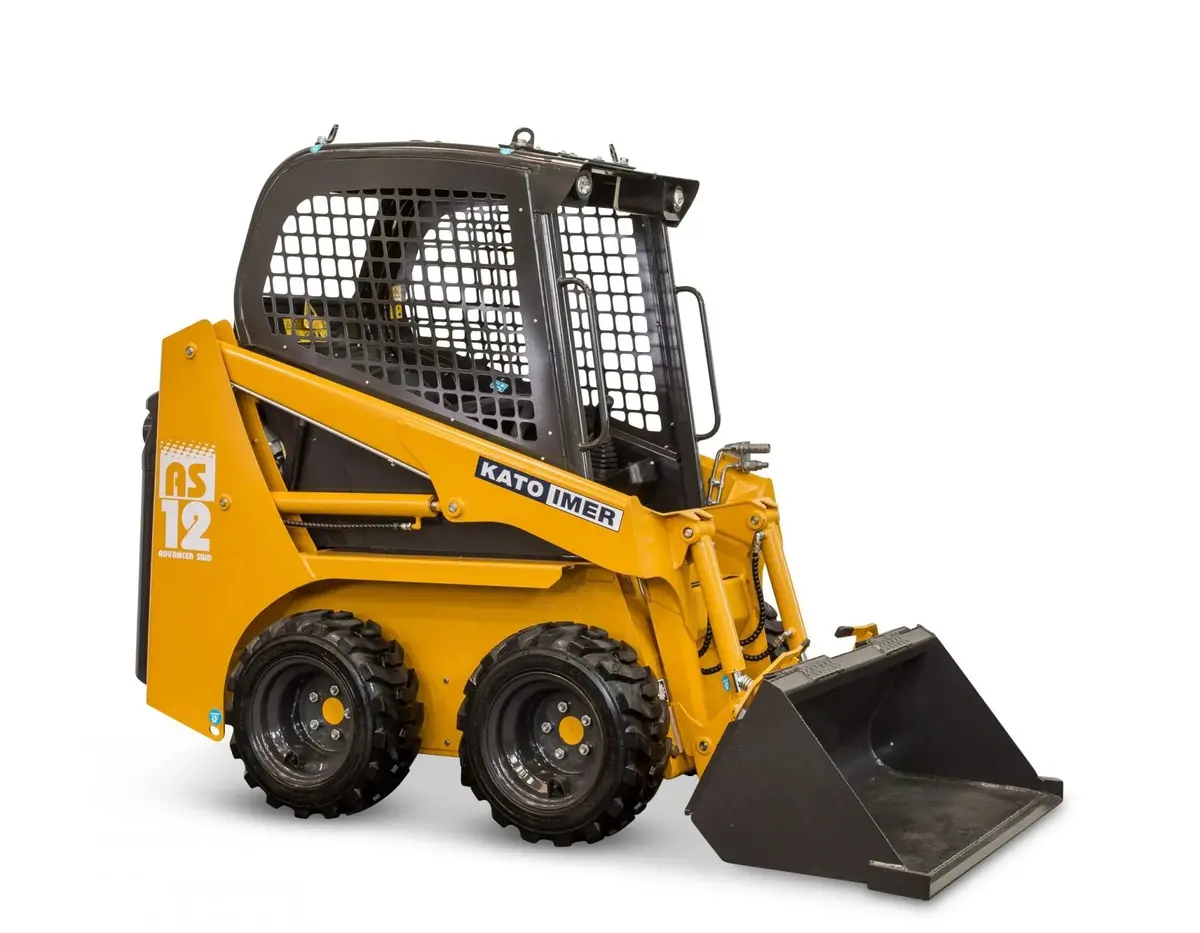

NEW! RUBBER TIRE SKID STEER. Reliability, speed, PILOT OPERATED JOYSTICK controls and compactness. The AS-12 is ideal for working in confined spaces with maximum flexibility. With an operating weight of 2955 lbs., the AS-12 can handle an operating load (SAE Standard) of up to 728 lbs., with a breakout force of 1658 ft/lb. The AS-12 Skid Steer Loader is equipped with a 21 Hp Yanmar diesel engine ensuring excellent performance in the most complex applications.
21 Hp Yanmar diesel engine
2955 Lbs. operating weight
728 Lbs. SAE load capacity
1658 Ft/Lb. bucket breakout force
Rubber tires (23 – 8.50 x 12)
Performance (Key Specs)
| Operating weight |
2,955 lbs. |
| Transportation weight |
2,778 lbs. |
| SAE load capacity 35% |
728 lbs. |
| Tipping load 50% |
1455 lbs. |
| Bucket Breakout Force |
1,658 lbs. |
| Maximum travel speed |
0-4.35 mph |
Engine
| Manufacturer |
Yanmar |
| Engine |
3TNV76 |
| Rated output |
21hp/2,500 rpm |
| Battery |
12V |
| Fuel consumption |
1.26 gal/hr |
| Cooling system |
Water Cooled |
| Fuel tank capacity |
2.2 gallons |
Hydraulic System
| Hydraulic pressure |
2,610 psi |
| Auxiliary Flow |
7.4 gpm |
STD Bucket WidthCapacity
| Standard bucket |
13.06 cu/ft |
Refilling
| Cooling system |
1 gallon |
| Fuel tank |
5.3 gallons |
