Sale!
Vortex Skid Steer Stump Grinder Attachment 1
Vortex Skid Steer Stump Grinder Attachment 2
Vortex Skid Steer Stump Grinder Attachment 3
Vortex Skid Steer Stump Grinder Attachment 4
Vortex Skid Steer Stump Grinder Attachment 5
Vortex Skid Steer Stump Grinder Attachment 6
Vortex Skid Steer Stump Grinder Attachment 7
Vortex Skid Steer Stump Grinder Attachment 8
Vortex Skid Steer Stump Grinder Attachment 9

Vortex Stump Grinder Attachment for Skid Steer Loaders

Price range: $92.00 through $92.89

Quantity
SKU: N/A Category: Brand:

Description

WHEN POWER MEETS EFFICIENCY

Eterra’s Vortex Stump Grinder was designed and manufactured to improve stump grinding efficiency and capacity with a beefy radial piston motor and 3/4″ non-symmetrical wheel. Available in 27″ or 31″ models. This attachment is ideal for operators looking to quickly remove hard or softwood tree stumps with a machine that doesn’t leave anything on the field. With this overbuilt, reliable, high-powered grinder system, you’ll be turning stumps to dust in no time.

GET TO KNOW THE VORTEX

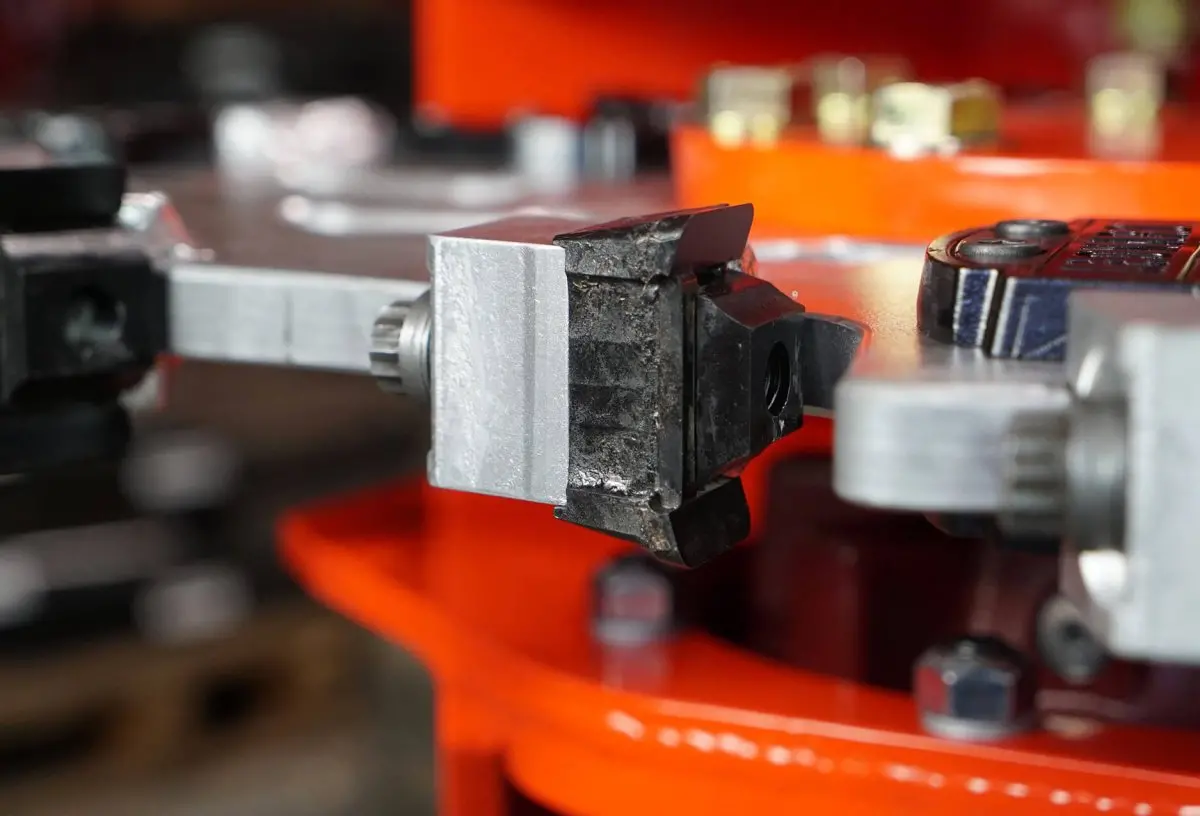

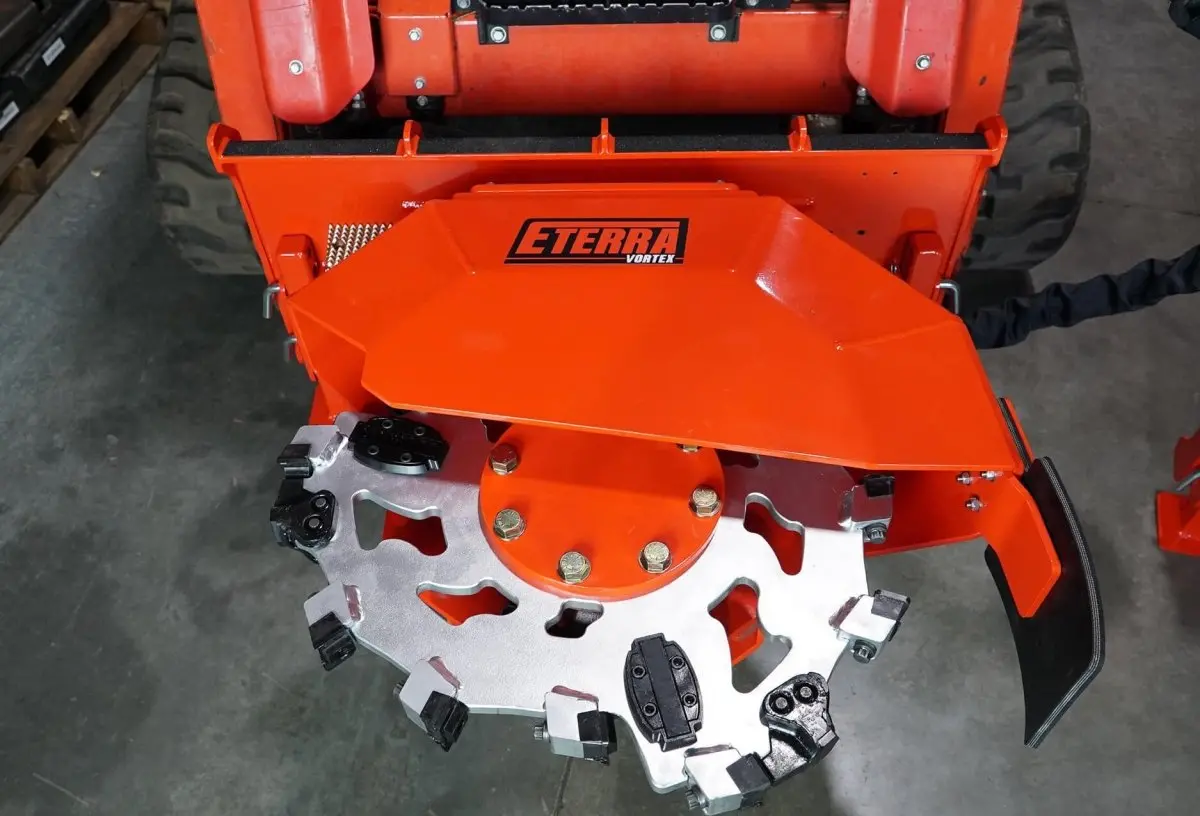

The Vortex Stump Grinder features a high torque output radial piston motor which is highly efficient, converting close to 95% of the hydraulic energy into horsepower. The direct drive system is an oil bath enclosed hub system, meaning there are no external couplers and nothing to grease. The asymmetrical high strength alloy steel wheel provides great visibility and features replaceable teeth, rock guards, and abrasion resistant wear plates.

UNDER THE HOOD

The Vortex Stump Grinder for Skid Steers utilizes an extremely efficient hydraulic radial piston motor that converts your machine’s hydraulic flow directly into grinding power. Capable of grinding hard and soft woods, the asymmetrical cutting wheel not only provides great visibility, but also maximizes the life of the cutter teeth.

DESIGNED FOR POWER

Constructed of A572 Grade 50 high strength steel. A Robust housing design is meant to handle the abuse required to grind stumps 20″+ below ground. A rubber chip guard absorbs debris impact and minimize the debris created from grinding the stump.

WATCH VIDEO
  • Overview
  • Features
  • Operation
  • Construction
  • Specs
  • Reviews

Features

SF Model Weight1075 lbs.SF Model Flow Range18-30 GPMSF Model Width46″SF Model Length41″SF Model Wheel Speed450-700 RPMSF Model MotorHydraulic Radial Piston MotorSF Model DriveDirect Drive Mega Hub Drive SystemSF Model Cutting Depth20 below ground”SF Model Number of Cutting Teeth12 Teeth, 3 Rock GuardsSF Model Type of TeethSand/Clay Tooth, Standard Tooth, Z-Tooth, Rock ToothSF Model MaterialASTM A572 Grade 50 Steel Housing and Mount

Design Specs

HF Model Weight1075 lbs.HF Model Flow Range30-45 GPMHF Model Width46″HF Model Length41″HF Model Wheel Speed450-735 RPMHF Model MotorHydraulic Radial Piston MotorHF Model DriveDirect Drive Mega Hub Drive SystemHF Model Cutting Depth20 below ground”HF Model Number of Cutting Teeth12 Teeth, 3 Rock GuardsHF Model Type of TeethSand/Clay Tooth, Standard Tooth, Z-Tooth, Rock ToothHF Model MaterialASTM A572 Grade 50 Steel Housing and Mount

Explore more from our collection.

Additional information

Options

Assembly – Mini Skid Steer Mounted – 12-20 GPM – 350-600 RPM, Assembly – MT Bobcat Mount – 12-20 GPM – 350-600 RPM, Assembly – Mini ASV Mount – 12-20 GPM – 350-600 RPM, Complete Kit – Standard Flow – 18-30 GPM Flow – 27" Cutting Wheel – 450-735 RPM – 1/2" Flat Face Couplers – 3/8" Female Case Drain, Complete Kit – Standard Flow – 18-30 GPM Flow – 27" Cutting Wheel – 450-735 RPM – 1/2" Flat Face Couplers – 3/8" Male Case Drain, Complete Kit – Standard Flow – 18-30 GPM Flow – 27" Cutting Wheel – 450-735 RPM – 3/4" Flat Face Couplers – 3/8" Female Case Drain, Complete Kit – Standard Flow – 18-30 GPM Flow – 27" Cutting Wheel – 450-735 RPM – 3/4" Flat Face Couplers – 3/8" Male Case Drain, Assembly – High Flow – 30-45 GPM Flow – 31" Cutting wheel – 450-700 RPM – 1/2" Flat Face Couplers – 3/8" Female Case Drain, Assembly – High Flow – 30-45 GPM Flow – 31" Cutting wheel – 450-700 RPM – 1/2" Flat Face Couplers – 3/8" Male Case Drain, Assembly – High Flow – 30-45 GPM Flow – 31" Cutting wheel – 450-700 RPM – 3/4" Flat Face Couplers – 3/8" Female Case Drain, Assembly – High Flow – 30-45 GPM Flow – 31" Cutting wheel – 450-700 RPM – 3/4" Flat Face Couplers – 3/8" Male Case Drain, Assembly – High Flow – 30-45 GPM Flow – 31" Cutting wheel – 450-700 RPM – No couplers, Excavator Mounted Assembly – Standard Flow – 18-30 GPM Flow – 31" Cutting Wheel, Assembly – Standard Flow – 18-30 GPM Flow – 27" Cutting Wheel – 450-735 RPM – No couplers, Excavator Mounted Assembly – Standard Flow – 18-30 GPM Flow – 27" Cutting Wheel
