Description
The TileLink Anchor (available in Screw and Rivet versions) provides maximum waterproofing with minimal structural impact on tile roofs.
Its unique under-tile design preserves roof aesthetics while the built-in energy absorber reduces stress on the structure.
Features
- Installs under tiles without cutting sarking – maximum weather protection
- Discreet low profile with only connection point exposed
- Built-in energy absorber reduces structural stress
- Suitable for roofs with pitch up to 7/12
- OSHA-compliant (1926.502, 1910.140)3,600 lb minimum breaking strength
- Not for use in material lifting, rappelling, or HLL systems

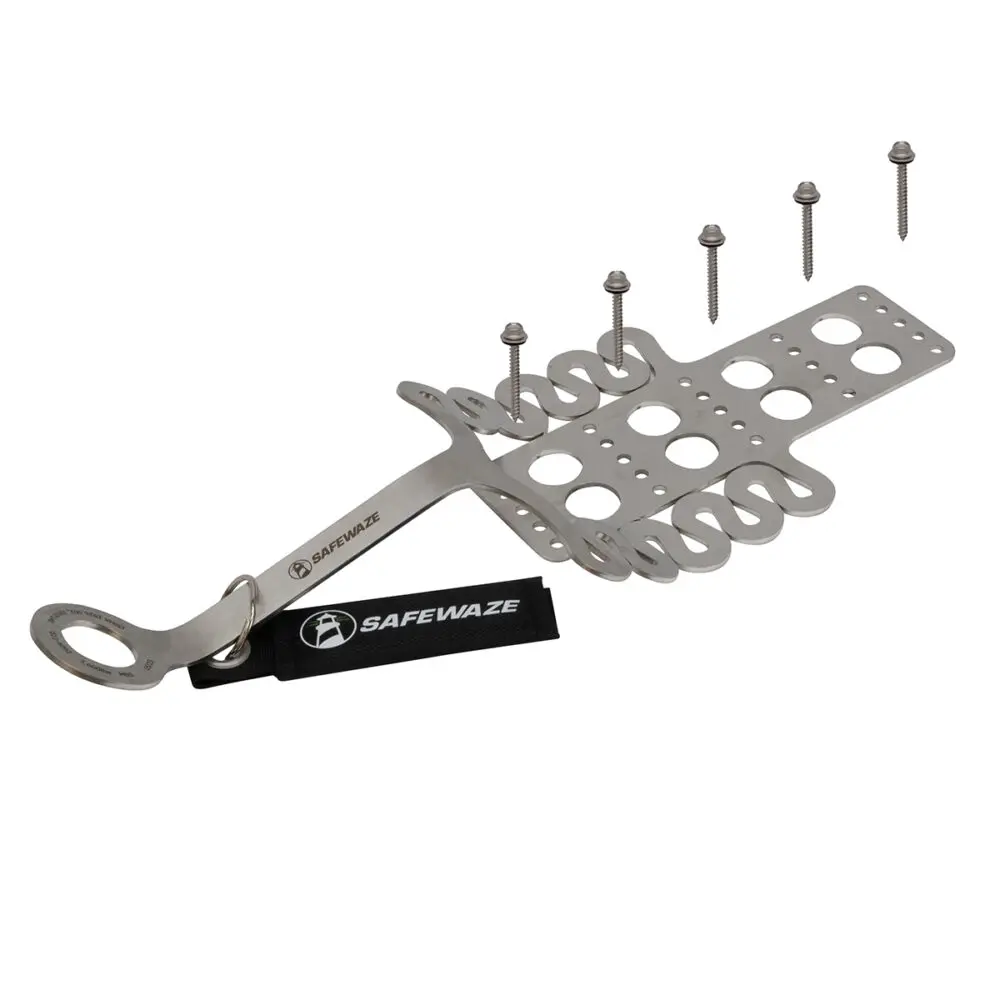

Screw Version (022-4092):
- Temporary or permanent installation into wooden truss
- Includes (5) 14-gauge 55mm hex head screws with seal

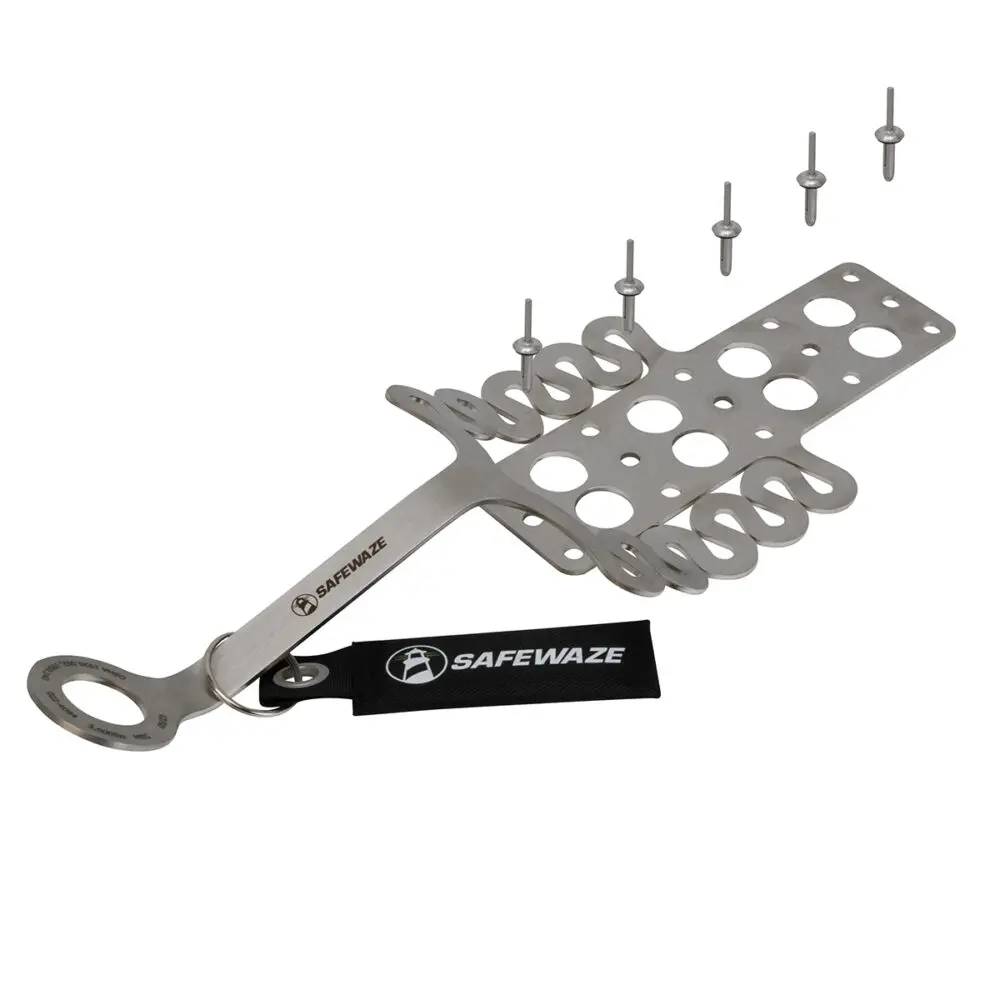

Rivet Version (022-4094):
- Permanent installation into metal truss
- Includes (5) 8mm bulb rivets
- Replacement rivets and hand tool available separately
| Materials: | Stainless steel |
| Weight: | 1.6 lbs. (0.7 kg) |
| Length: | 16.7″ (424 mm) |
| Number of Holes: | 5 |
| Minimum Breaking Strength: | 3,600 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
