Description

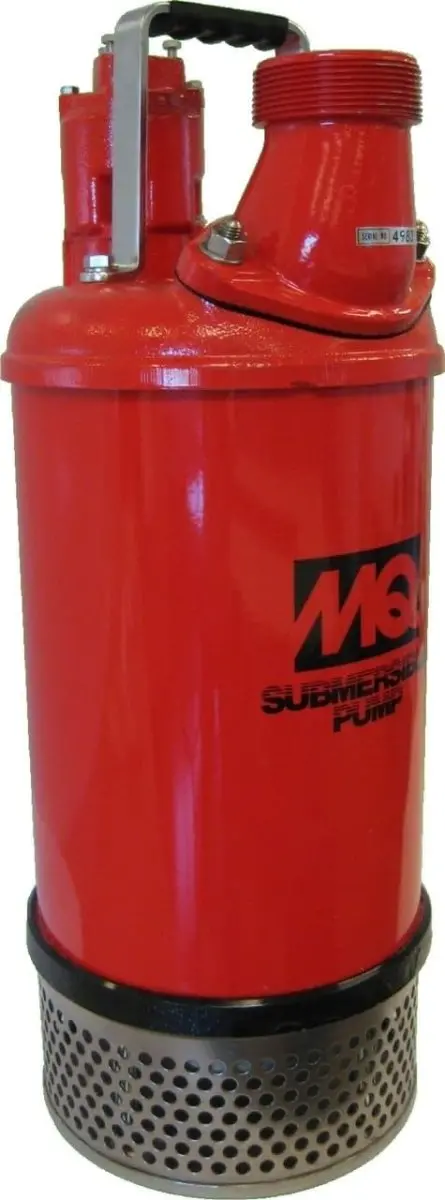

ST41230 / ST41460 Submersible Centrifugal Pump
4 Inch Discharge, 230/460 three-phase, 60 Hz 10 HP, 423GPM, 138ft Total HeadThis submersible centrifugal pump is a heavy-duty performance minded product for moving water in multiple confined and open area applications. This very powerful, versatile, low maintenance pump is perfect for a wide range of operations supporting Contractors, Service Utilities, and Municipalities. Further, the ST41 Series incorporates a rugged stainless steel housing, oil-filled, double mechanical pump seals, dynamically balanced high chrome impeller, and molded 33′ Power Cable with strain relief. This type of pump requires a Control Box to provide safe operations and safety shutdowns such as thermal & voltage overload protection. Further, the Control Box would permit float switch (if required) connections.
- 10.0HP, 230/460V, three-phase, 60 Hz.
- Running AMPS : 28.6A (230V) / 14.3A (460V).
- FLOW Capacity: 423 GPM.
- HEAD: 138′.
- Pump Diameter: 12.5″
- Weight: 205 lbs.
- Passes up to .6″ spherical solids.
- 4″ NPT Male Discharge Port.
- Reliable double mechanical oil-filled seals.
- Easy Impeller Clean-out.
- Output shaft is heat-treated 410 Stainless Steel.
- Suction Strainer: Stainless Steel (304).
- Pumps Liquid up to 140° F – pH 4-10.
- 33′ of molded power cord w/strain relief.
- Optional Control Box Model: CB1269 for 230V
- Optional Control Box Model: CB1456 for 460V
| Impeller Type | High Chrome Steel | |
| Impeller Disc Size | 4 in | 100 mm |
| Total Head | 138 ft | 35 m |
| Water Capacity | 423 gpm | 1565 lpm |
| Max. Solid Intake | .6 in | 15 mm |
| Power | 10 HP | 7.5 kW |
| Phase | Three | |
| Voltage | 230/460 V | |
| Starting Amperage | 230V/172. A / 460V/85.8 A | |
| Running Amperage | 230V/28.6A / 460V/14.3 A | |
| Cable Length | 33 ft | 10 m |
| Pump Diameter | 12.5 in | 318 mm |
| Overall Height | 32 in | 813 mm |
| Operating Weight | 205 lb | 93 kg |
Notice: Features and equipment specifications are subject to change without notice.
