Description

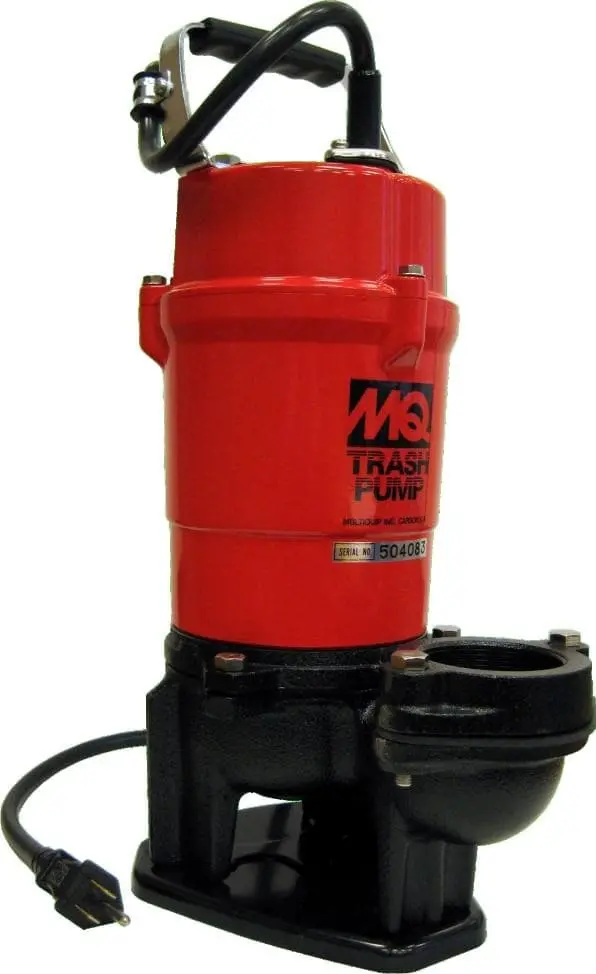

ST2010TCUL Submersible Trash Pump
2 Inch Discharge, 115V 1Ø, 1.0 HP, 95 GPM. 45 ft Total HeadThis compact submersible trash pump is ideal for moving water with debris (Maximum size – 1″ solids). The Industrial grade cast iron housing and abrasion resistant Cast Iron Impeller tackles tough dewatering applications and heavy usage operations. Further, the ST2010TCUL incorporates a carrying handle, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, easy impeller clean-out, and molded 50′ Power Cable with strain relief.
- 1.0HP, 115V/6.8A, 1Ø, UL & CUL Listed Electric Motor.
- Built-in Overload Protection.
- 2″ (NPT) Female Discharge.
- Total Head: 45 ft.
- MAX Capacity: 95 gpm.
-
Pumps Liquid Up To 120° F.
- Heavy-duty Cast Iron Housing construction.
- Dewaters Flat Surfaces Up To 2″ Levels.
| Impeller Type | Neoprene Rubber over Cast-Iron |
|
| Impeller Disc Size | 2 in | 51 mm |
| Total Head | 40 ft | 12.2 m |
| Water Capacity | 79 gpm | 299 lpm |
| Max. Solid Intake | 0 in | 0 mm |
| Power | 1 HP | 0.75 kW |
| Phase | Single | |
| Voltage | 115 V | |
| Starting Amperage | 34 A | |
| Running Amperage | 6.8 A | |
| Cable Length | 25 ft | 7.6 m |
| Pump Diameter | 10.3 in | 262 mm |
| Overall Height | 24.5 in | 622 mm |
| Operating Weight | 77 lb | 35 kg |
Notice: Features and equipment specifications are subject to change without notice.
