Description
SafeLink Bases
The SafeLink Nelson/Rebar Assembly is engineered for versatility in bridge construction. Used with the SafeLink Anchor Post, it supports various mounting options including Nelson Stud, L-shaped and straight rebar. This durable system serves as the anchor for temporary horizontal lifeline systems. It can be configured in single or multi-spans up to 195′ (59.4 m), increasing user flexibility and job site productivity.
Features:
- Most versatile base for bridge work
- Fits Nelson (Shear) Stud, L-shaped and straight rebar
- Quick, easy installation with minimal hardware
- Reduced trip hazard with 3′-4′ footprint
- Adjustable clamps fit 1/2”-1-3/8” diameter with a minimum stud shaft height of 4″ and spacing from 2-1/2”-7-1/4”
- Durable long-lasting construction
- Fits most HLL systems
- Versatile use as single or multi-span
- Maximum 2 users per span
- Use with FS-EX5501-5 aluminum posts
Specifications:

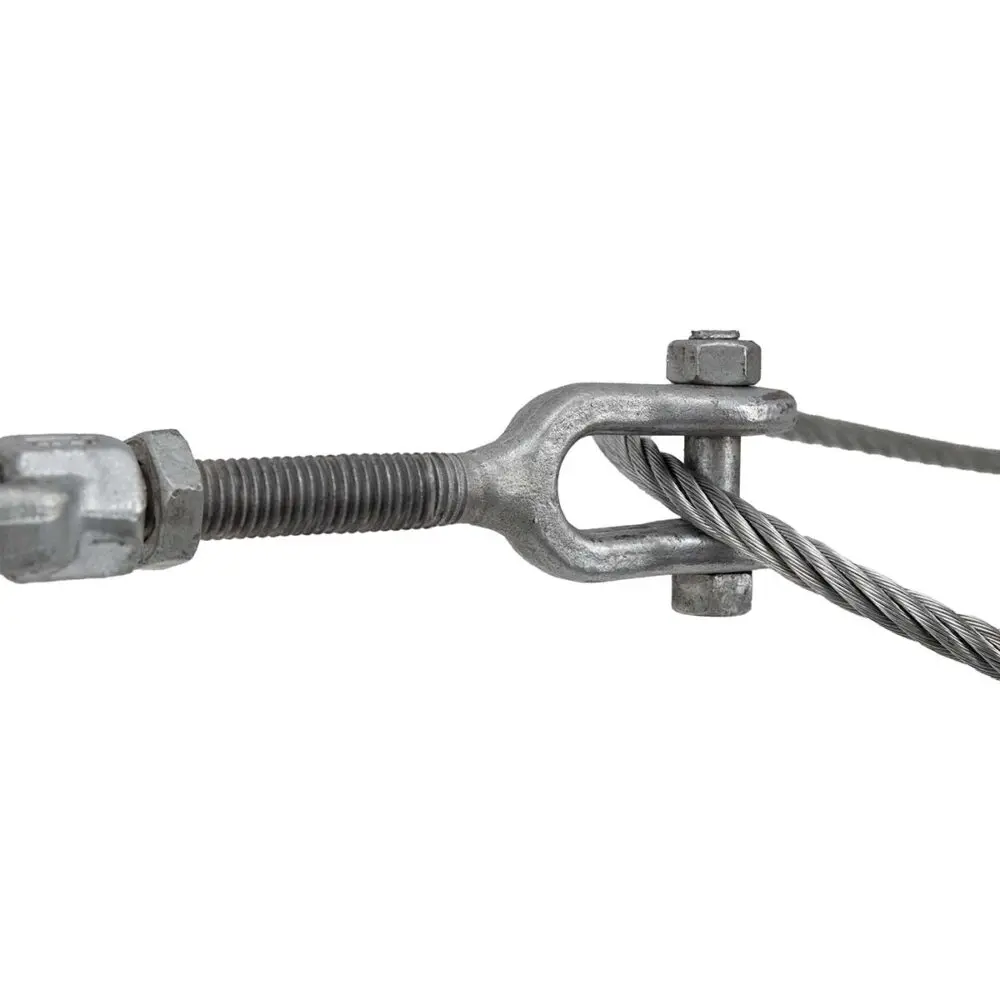

| Materials: | YCM plated steel base, clamps and wingnuts, 3/8″ galvanized steel cable with copper ferrules, galvanized steel turnbuckle |
| Weight: | 53.2 lbs. (24.1 kg) |
| Max. Height: | 12.75″ (323.9 mm) |
| Max. Width: | 15.5″ (393.7 mm) |
| Assembly Span: | 36″-48″ (914.4-1219.2 mm) |
| Minimum Breaking Strength: | 5,000 lbs. (2268 kg) |
| System Capacity: | Maximum 2 users per span |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Standards: | 1926.502, 1910.66 |
