Description

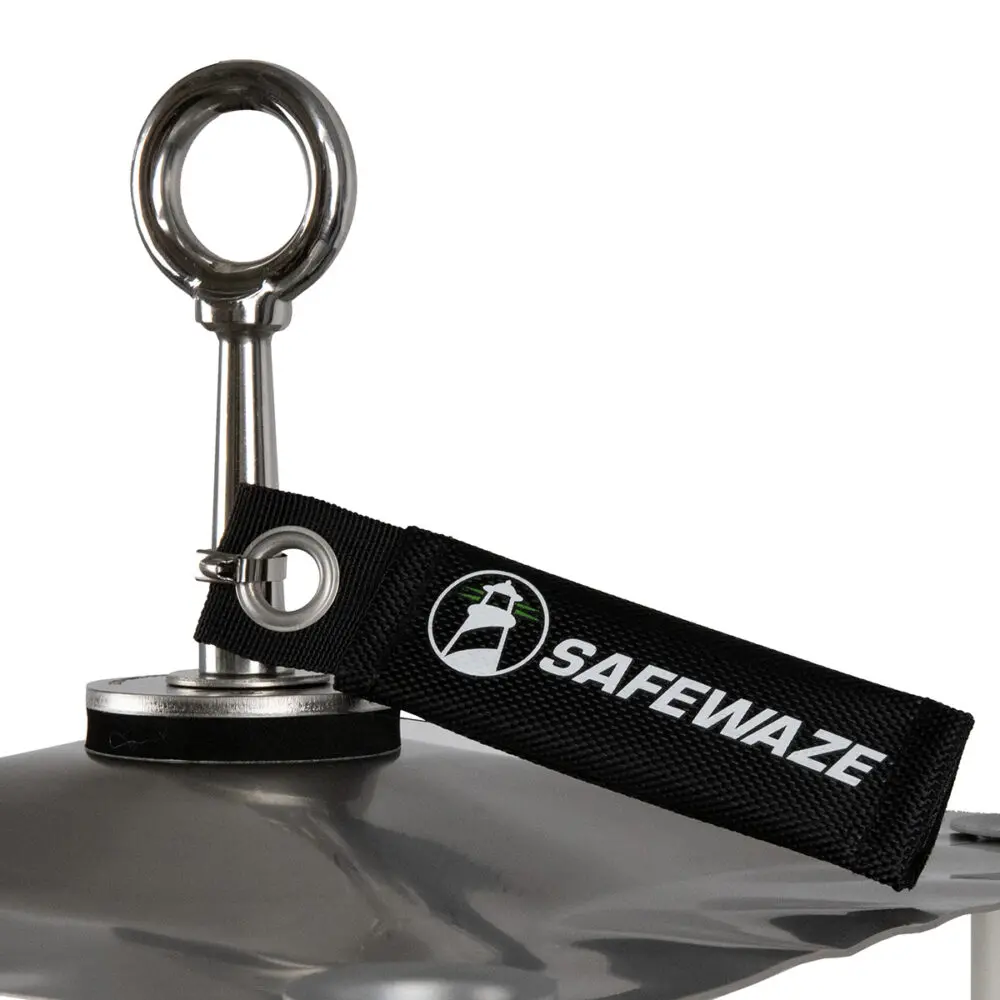

The Membrane Anchor offers easy drop-through installation from the roof surface; no access underneath required.
With a 360° working radius and a 4″ elevated anchor point to prevent wear and tear from connections dragging on the surface, this permanent anchor can be used as a single point anchor with lanyards, SRLs or VLLs.
Features:
- No access to underside of roof required with easy drop-through installation
- Permanent anchor designed exclusively for membrane roofs
- Elevated eye bolt (4″) prevents abrasion from connecting hardware
- 360° working radius increases efficiency
- Versatile to accommodate roof thicknesses from 3″ to 12″
- Ideal for use as single point anchor
- Not for use with HLL systems
| Materials: | Stainless steel, galvanized steel, zinc plated steel, PVC, closed cell foam |
| Weight: | 6.2 lbs. (2.8 kg) |
| Base Plate: | 11.6″ x 11.6″ (295 mm x 295 mm) |
| Number of Holes: | 4 |
| Hole Diameter: | 1-3/16″ (30 mm) |
| Minimum Breaking Strength: | 3,600 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
