Premium Roller Stands

Description

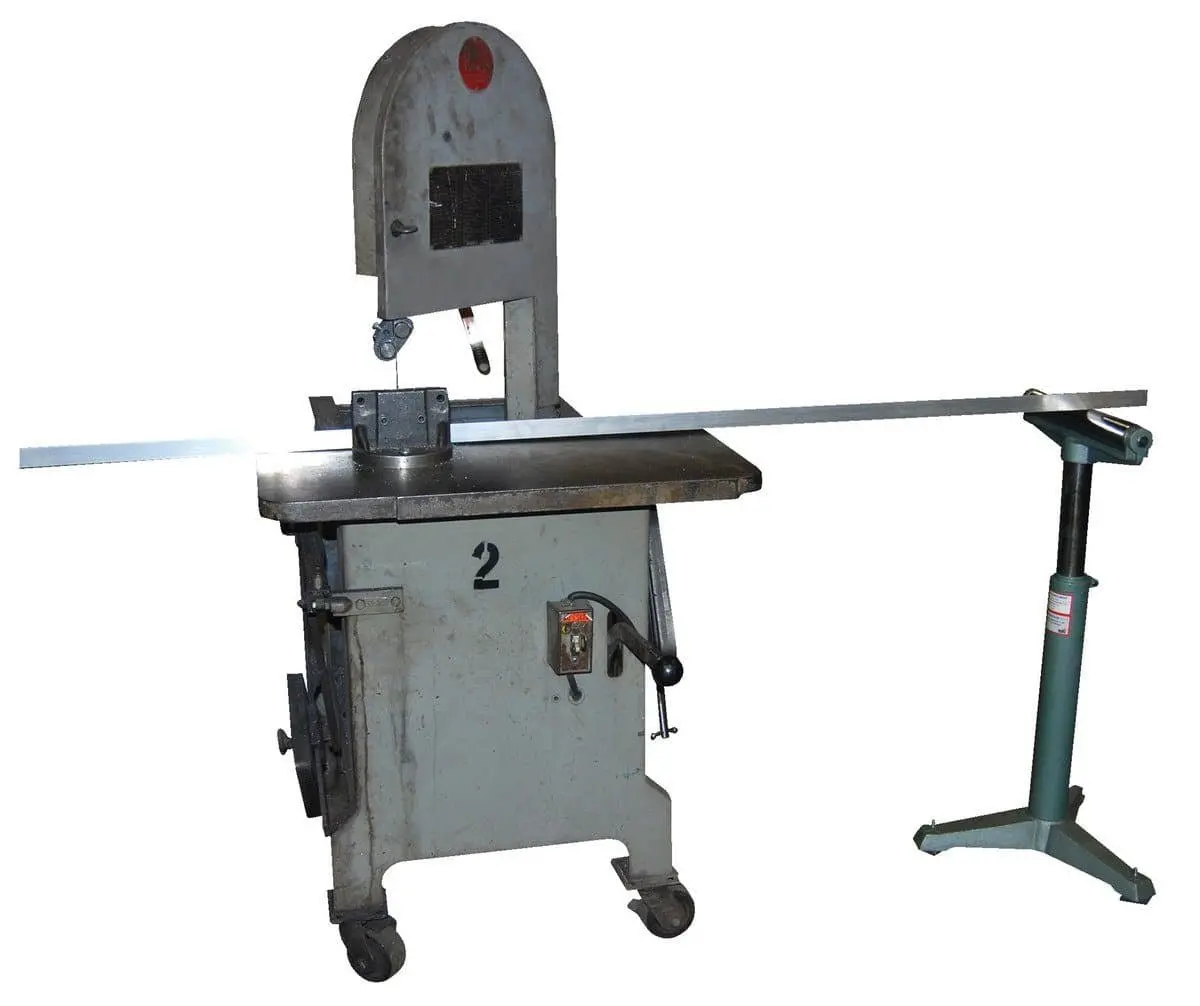

Deluxe Roller Stands are designed for use as an extra hand when working with long materials

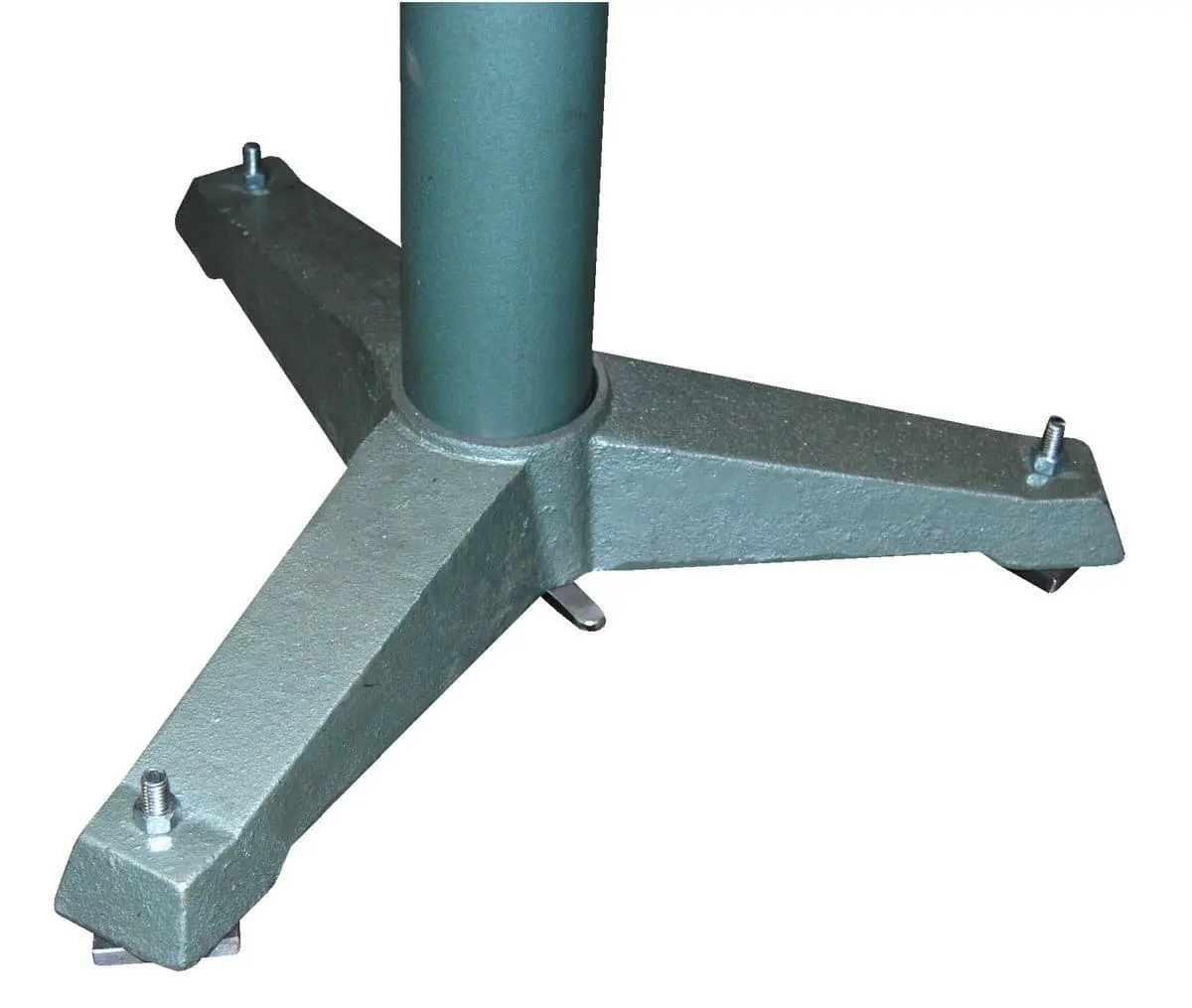

Each stand includes 2″ chrome plated rollers and heavy-duty cast-steel base. Choose either v-groove roller design or flat single roller design. The height of each stand is adjusted with a friction lock screw or a gas charged cylinder. Great for use in machine and wood shops. Ships knockdown.

Stand-G models utilize a gas charged cylinder for maximum efficiency and precise positioning. The gas cylinder minimizes adjustment time and limits manual interaction with the unit.

Model STAND-T is ideal for most tubing and bar stock applications. The STAND-T ball roller span is infinitely adjustable from 1-9/16″ to 6-1/8″. Roller plates can also be rotated 180 degrees to create different offsets and to handle larger diameter tubing. Blue baked-in powder-coat finish for added toughness. Does not work with STAND-MF.

Deluxe Roller Stands
Model	Image	PDFs	Description	Service Range	Capacity (lbs)	Wt. (lbs)
Manual Operation
STAND-H			14″ Horizontal Roller	24-7/16″ to 39-1/2″	1,760	32
STAND-V			(2) 5″ “V” Rollers (9″ W across)	23-1/2″ to 39-1/4″	1,760	35
STAND-H-HP			14″ Horizontal Roller	27-1/16″ to 42-1/2″	1,760	36
STAND-V-HP			(2) 5″ “V” Rollers (9″ W across)	26-1/8″ to 42-1/4″	1,760	36
Gas Cylinder, Counter Balanced, Operation
STAND-G-H			14″ Horizontal Roller	29″ to 39-1/8″	1,760	40
STAND-G-V			(2) 5″ “V” Rollers (9″ W across)	26″ to 38″	1,760	40
STAND-G-H-HP			14″ Horizontal Roller	33″ to 43″	1,760	40
STAND-G-V-HP			(2) 5″ “V” Rollers (9″ W across)	33″ to 43″	1,760	42
Multi-Function, 4-Way Roller Balls, 2-Way Roller, Fixed
STAND-MF			11-1/4″x1.9″ (8) Ball Rollers	27.5″ to 44″	125	15

KEY: = Approval Drawing — = Warranty — = Testing Certificate
