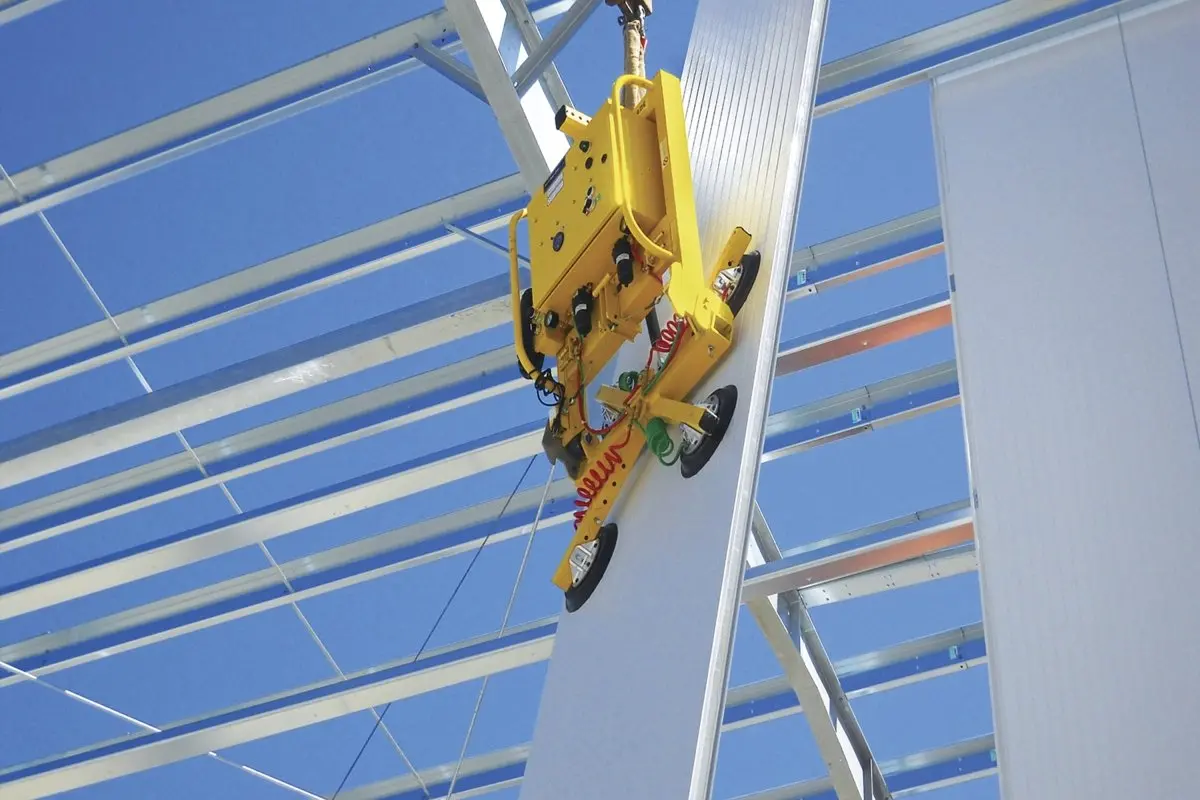

MTCL Cladding Lifter Series

Description

This versatile lifter can be configured up to 16 ft [5 m] in length to lift long cladding materials weighing up to 700 lbs [320 kg].

These lifters are now available w/ Intelli-Grip® Technology, automatically monitoring vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.

• Maximize productivity
• Help reduce human error
• Simplify maintenance and repairs
• Protect employees and property from harm

Maximum Load Capacity

• 300-700 lbs [135-320 kg]

Tilter

Operating Instructions

Service Manual

Specifications

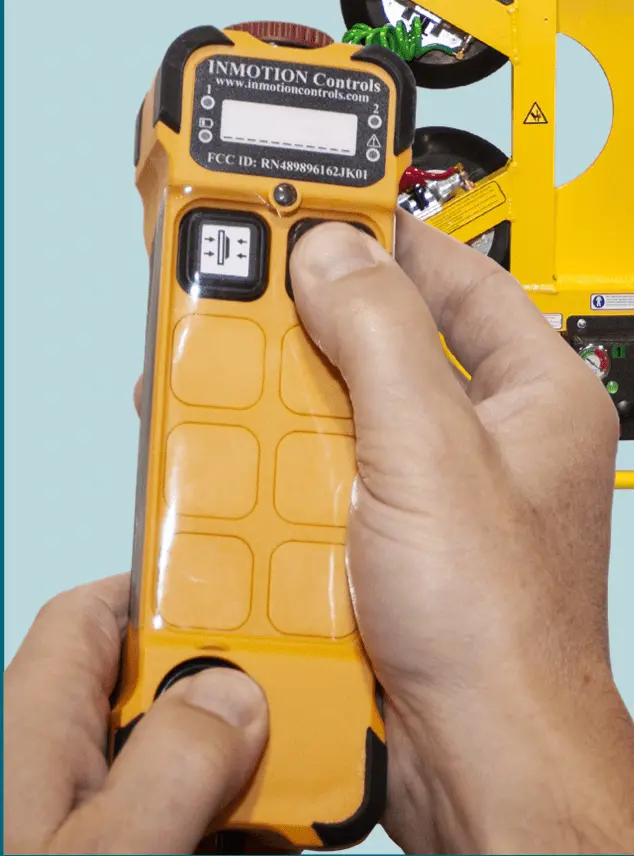

Remote Option

Remote Instructions

Remote Specifications

Intelli-Grip™ Technology

• Automatic self-testing ensures lifter is ready for use, every lift.
• Color display provides critically relevant information at a glance.
• Anticipates threats and alerts operator beforehand with clearly visible and audible warnings.
• Continuously monitors battery and prevents lifter from attaching to loads if energy is hazardously low.
• Multiple alarm levels plainly identify the severity of hazards.

Load Movement

• Manual tilt, 90° between upright and flat, with hydraulic damping and automatic latching in the upright and flat positions (when desired)

Standard Operating Power

• 12 volts DC, 10 amps

Weight of Lifter

• 360 lbs [164 kg] (maximum)
• (245 lbs [112 kg] without pad frame extensions)

Standard Pad Spread

• Minimum Width: 16-1/2″ [42 cm]
• Maximum Width: 56″ [142 cm]
• Minimum Length: 16-1/2″ [42 cm]
• Maximum Length: 196″ [498 cm]
• (see Spec Sheet for configuration details)

Number / Size of Vacuum Pads

• 2-6 (variable) / 6″ x 25″ [15 cm x 64 cm] pads
• (see Spec Sheet for configuration details)

Standard Features

• Intelli-Grip™ technology
• Dual vacuum system
• High-capacity battery and charger
• Battery energy gauge
• Low vacuum strobe light
• Low vacuum/power loss warning buzzer with back-up battery
• Green lift light
• Vacuum gauges
• Vacuum line filters
• Vacuum reserve tanks
• Spring-mounted vacuum pads
• Removable, sliding, adjustable-orientation pad mounts
• Pad frame extensions
• Replaceable, closed-cell foam pad seals (for surface contours up to 3/8″ [10 mm] in depth)
• Blow-off for quick release
• Two-action, push-button release

Dual Vacuum System

• Features two completely independent vacuum circuits.
• Provides vacuum system redundancy.
• Limits possibility of a catastrophic failure.
• Reduces chance of harm to personnel or equipment.
