Description

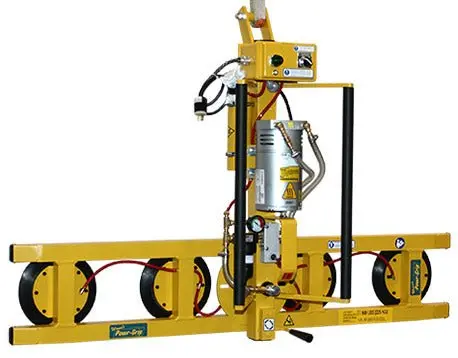

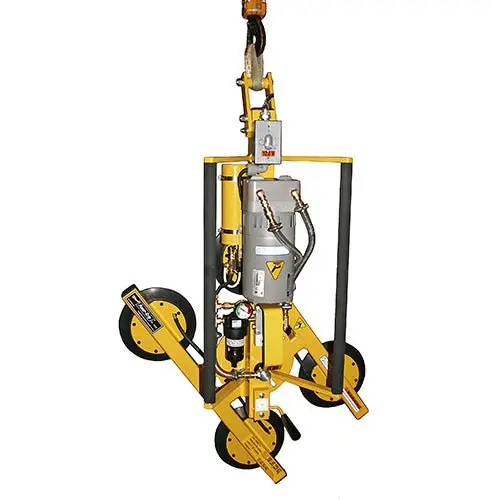

Manual Rotator 700 (AC) is a custom built piece of lifting and handling equipment that takes a couple weeks to produce
With continuous 360° rotation, these Powr-Grip® vacuum lifters supply an efficient and economical way to feed vertically oriented processing machinery.
Rotator
Specifications
| Model |
MR11LAC |
MR49AC |
| Load Capacity | 700 lbs [320 kg] |
500 lbs [225 kg] |
|
Standard Operating Power |
120 volts AC, 60 hertz, 5 amps |
120 volts AC, 60 hertz, 5 amps |
|
Load Movement |
Manual rotation, 360° edgewise with locking at each 1/4 turn |
Manual rotation, 360° edgewise with locking at each 1/4 turn |
|
Standard Features |
Adjustable-position lift spool Vacuum gauge |
Adjustable-position lift spool Vacuum gauge |
|
Lifter Weight |
92 lbs [42 kg] |
92 lbs [42 kg] |
|
Attach |
2 seconds (approximately) |
3 seconds (approximately) |
|
Release |
1 seconds (approximately) | 2 seconds (approximately) |
|
Standard Pad Spread |
231/2″ x 291/2″ [599 mm x 752 mm] |
26″ x 32″ [661 mm x 813 mm] |
|
Number / Size of Pads |
4 / 9″ [23 cm] diameter |
4 / 11″ [28 cm] dia. lipped |
