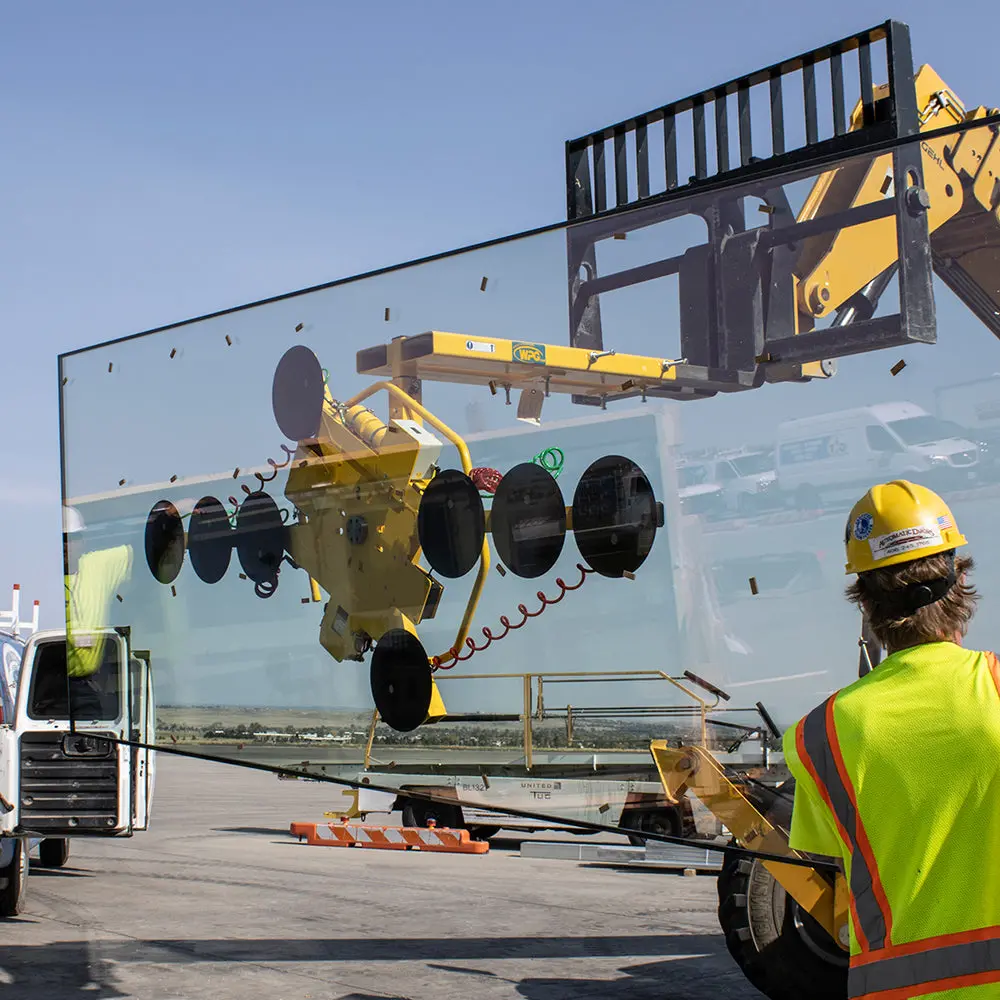

MR-TA8-DC3 Forklift Mounting Adapter

Description

QUADRA-TILT ROTATORS 1200 & 1400 WITH DC3 DUAL VACUUM SYSTEM MODELS: MRTA811LDC3 & MRTA810TDC3. These versatile rotator-tilters combine
a compact design, innovative tilt linkage and twice the load capacity of our popular MRT4-DC lifters.

Details:

• Compatible Fork Dimensions: 1-1/2″ to 2-1/4″ (38-57 mm) thick and 4″ to 6″ (102-152 mm) wide
• Inside Fork Spread: 4″ (102 mm)
• Weight: 125 lbs (57 kg)
• Maximum Load Thickness: 1″ (25 mm) at full capacity
• Maximum Load Capacity: 1400 lbs (635 kg) (or the max load capacity of the MRTA Lifter, whichever is less.)

Note: The forklift must have a rated capacity greater than the combined weight of the lifter, adapter, and load when extended to its forwardmost position.

Specifications:

• Instructions: Download
• Specifications: Download
• SKU:95457
• Ideal Uses: Ideal for warehouses or anywhere a forklift is desired
• Other Uses: When a crane is unavailable/unusable
• Power System: DC Battery Power
• Additional Information: Replaces MRTA8 Lift Bar
