Mobile Scissor Lift Tables

Description

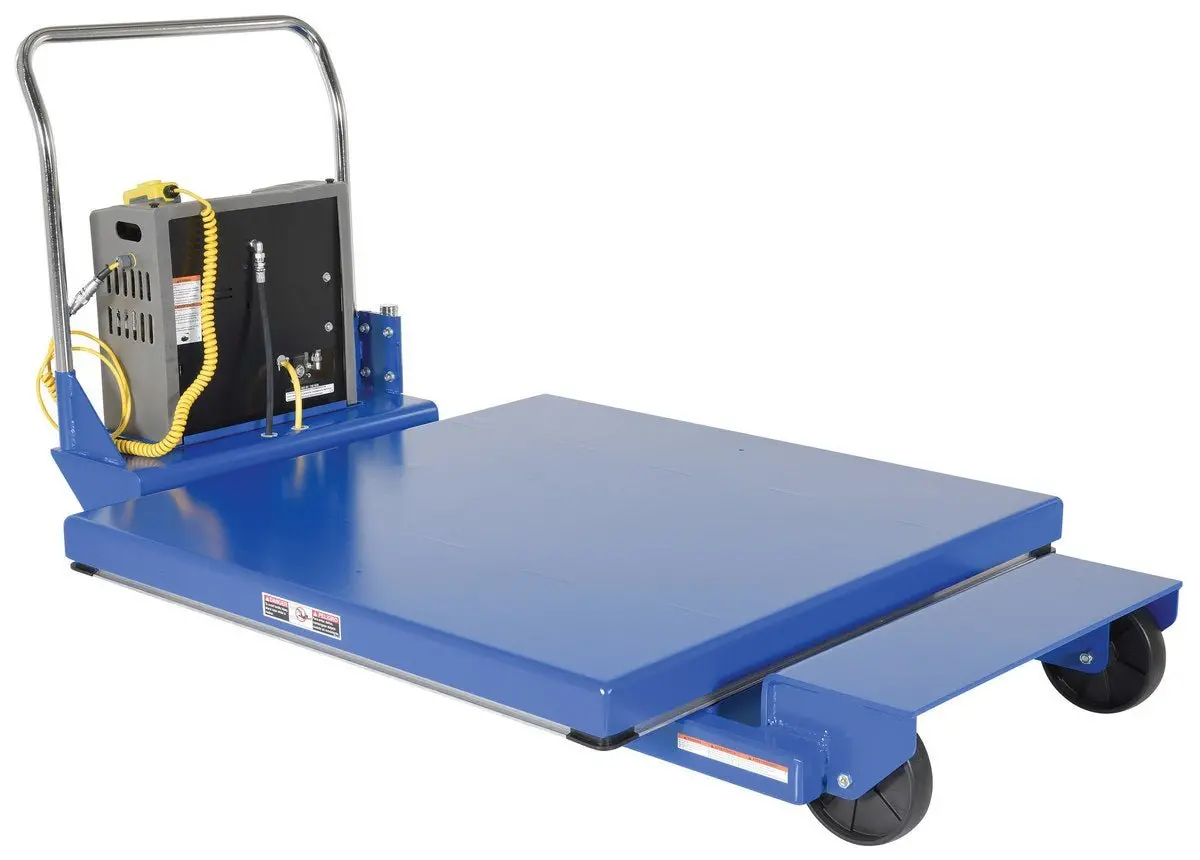

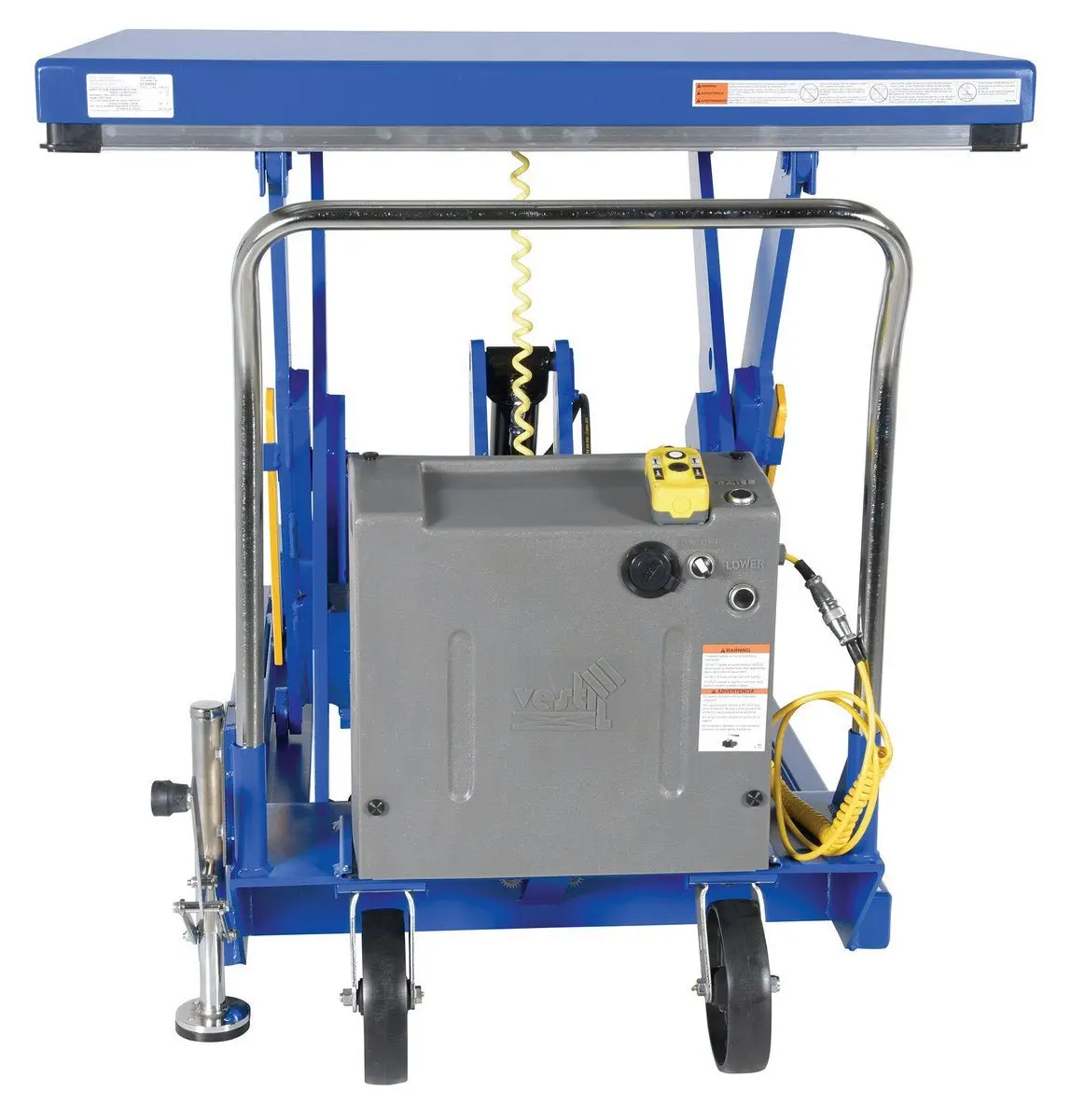

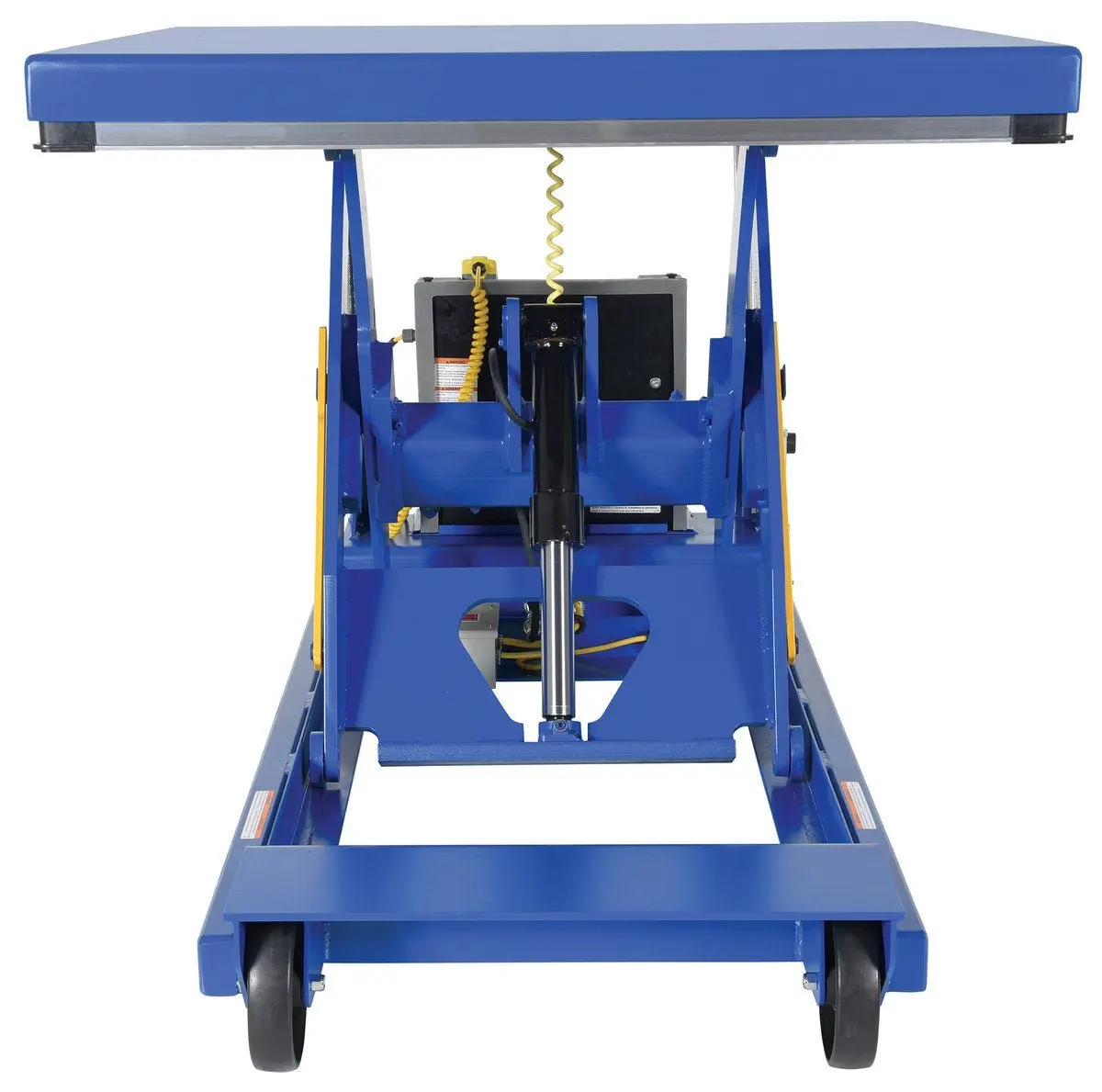

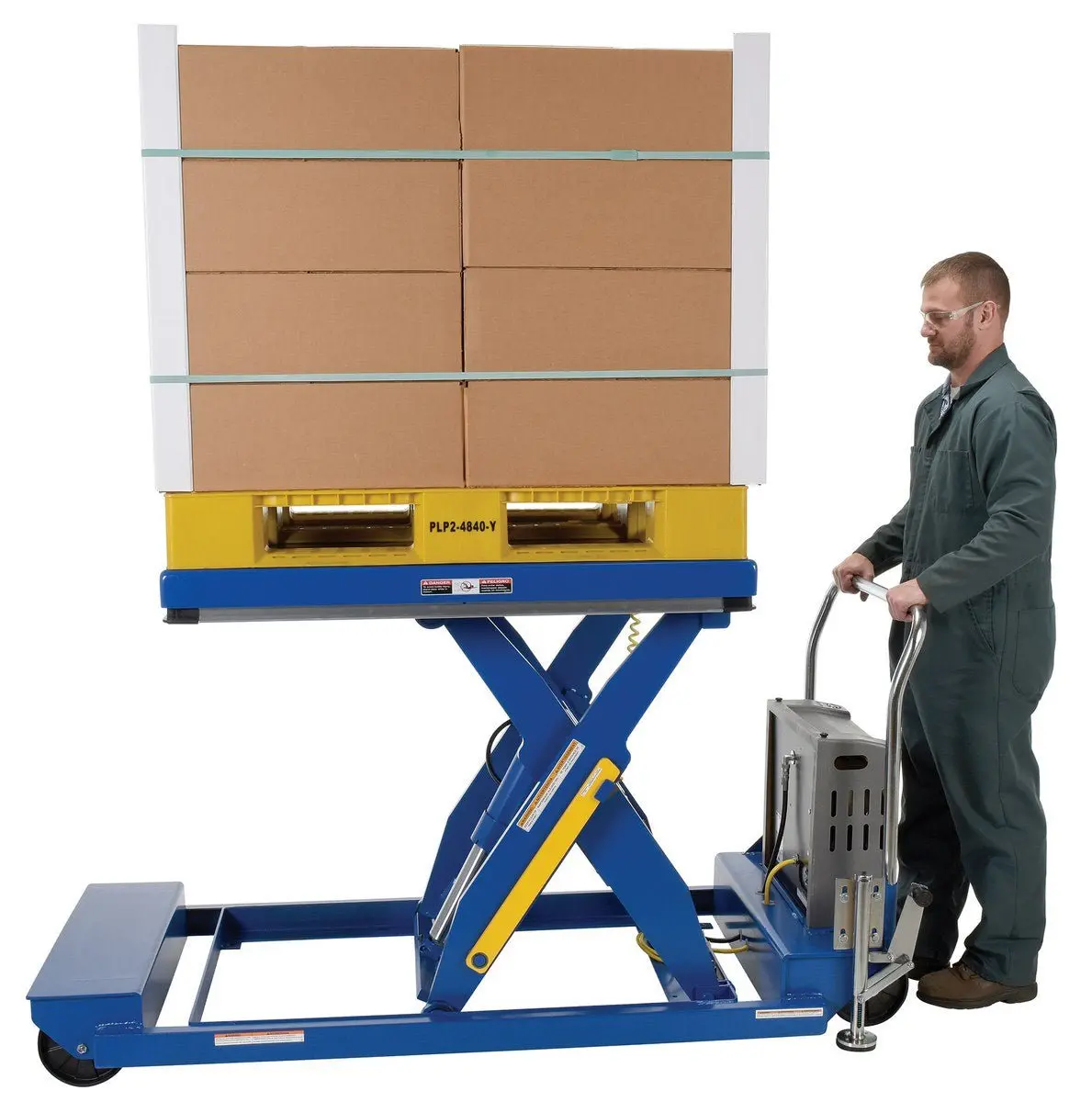

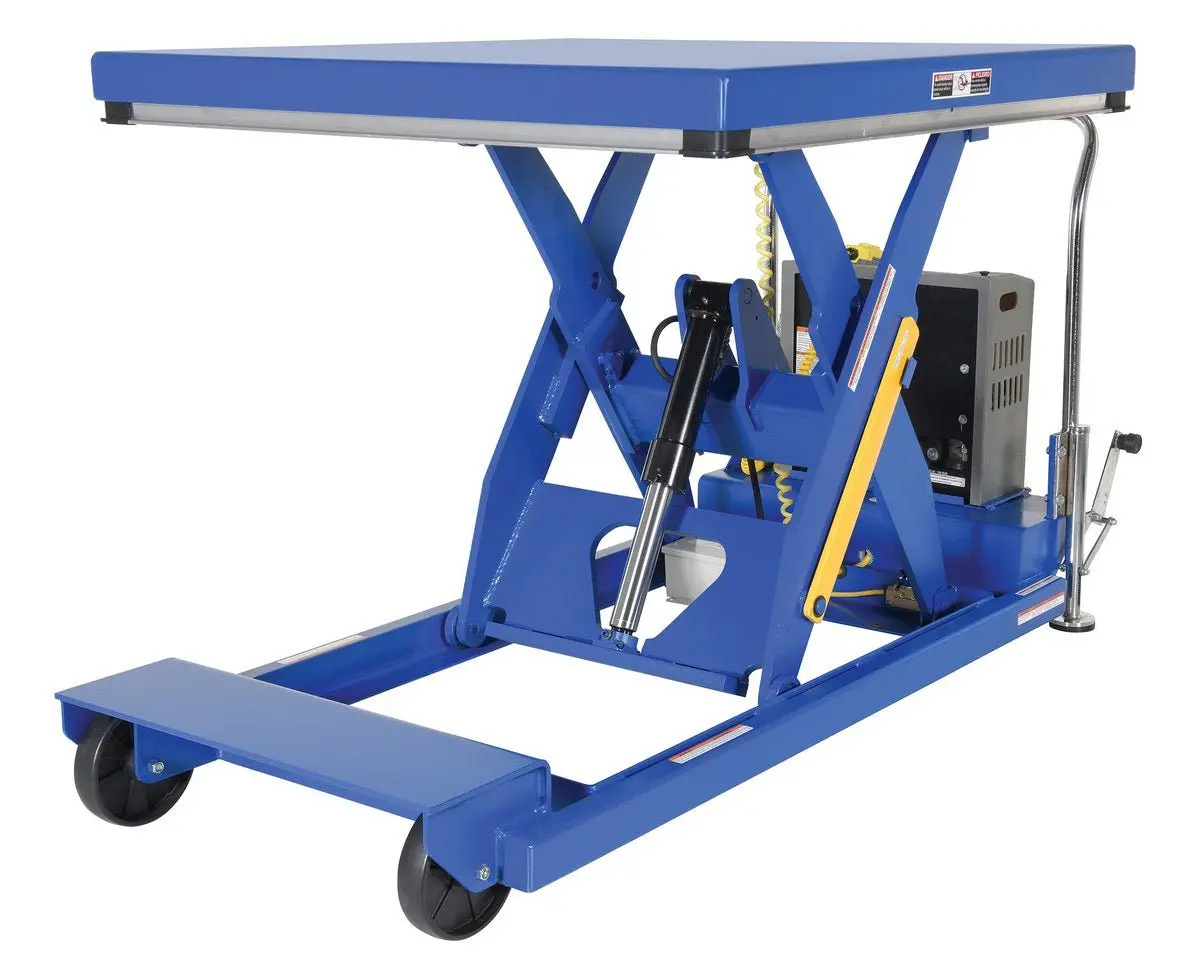

Portable Scissor Lift Tables are designed to transport and elevate your heaviest loads.

A heavy-duty 12V DC power unit with deep cycle battery, an on-board battery charger, and battery charge indicator gauge are standard. Features 8″ glass filled nylon casters (two swivel and two rigid) (4 & 5,000 lb. units have phenolic casters), floor lock, and patented electric pinch point guards. Push buttons to raise and lower lift, and the magnetic hand control on an 8 ft. cord are standard. Key-operated ON/OFF control for better security is built into the power unit.

Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h.

PTDS includes:

• Combination throttle / direction butterfly style controller
• An adjustable steering yoke
• An auto reverse emergency “belly switch”
• (2) 12V batteries

PTDS-E includes:

• Combination throttle / direction controller
• An auto reverse emergency “belly switch”
• (2) 12V batteries

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Model	Image	PDFs	Description	Attributes	Net Wt. (lbs)
PST-1-46		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 100-1/2 In. x 48 In. x 46 In. 1000 Lb. Capacity Blue	Uniform Capacity (lb.): 1,000 Platform Width Range (in.): 24 to 48	1064
PST-1-58		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 118-1/2 In. x 48 In. x 58 In. 1000 Lb. Capacity Blue	Uniform Capacity (lb.): 1,000 Platform Width Range (in.): 24 to 48	1349
PST-2-46		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 100-1/2 In. x 48 In. x 46 In. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Platform Width Range (in.): 24 to 48	1186
PST-2-58		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 118-1/2 In. x 48 In. x 58 In. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Platform Width Range (in.): 24 to 48	1331
PST-3-46		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 100-1/2 In. x 48 In. x 46 In. 3000 Lb. Capacity Blue	Uniform Capacity (lb.): 3,000 Platform Width Range (in.): 24 to 48	1353
PST-3-58		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 118-1/2 In. x 48 In. x 58 In. 3000 Lb. Capacity Blue	Uniform Capacity (lb.): 3,000 Platform Width Range (in.): 24 to 48	1192
PST-4-47		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 100-1/2 In. x 48 In. x 47 In. 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Platform Width Range (in.): 36 to 48	1170
PST-4-60		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 118-1/2 In. x 48 In. x 60 In. 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Platform Width Range (in.): 36 to 48	2068
PST-5-47		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 100-1/2 In. x 48 In. x 47 In. 5000 Lb. Capacity Blue	Uniform Capacity (lb.): 5,000 Platform Width Range (in.): 36 to 48	1778
PST-5-60		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 118-1/2 In. x 48 In. x 60 In. 5000 Lb. Capacity Blue	Uniform Capacity (lb.): 5,000 Platform Width Range (in.): 36 to 48	2234
PST-2448-1-46		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 79-1/16 In. x 33 In. x 46 In. 1000 Lb. Capacity Blue	Uniform Capacity (lb.): 1000 Raised Height (in.):46	875
PST-2448-1-46-115-1		1 Year Limited Warranty	Steel Heavy Duty Portable 115V AC Powered Scissor Lift Table 79-1/16 In. x 33 In. x 46 In. 1000 Lb. Capacity Blue	Uniform Capacity (lb.): 1000 Lowered Height (in.): 10	875
PST-2448-2-46		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 73-3/4 In. x 32-1/2 In. x 46 In. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Raised Height (in.):46	1147
PST-2448-2-46-115-1		1 Year Limited Warranty	Steel Heavy Duty Portable 115V AC Powered Scissor Lift Table 75-3/4 In. x 32-1/2 In. x 46 In. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Lowered Height (in.): 10	1147
PST-2448-3-46		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 75-1/2 In. x 32-1/2 In. x 46 In. 3000 Lb. Capacity Blue	Uniform Capacity (lb.): 3000 Raised Height (in.):46	1289
PST-2448-3-46-115-1		1 Year Limited Warranty	Steel Heavy Duty Portable 115V AC Powered Scissor Lift Table 75-1/2 In. x 32-1/2 In. x 56 In. 3000 Lb. Capacity Blue	Uniform Capacity (lb.): 3000 Lowered Height (in.): 10	1289
PST-2464-1-58		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 95-1/16 In. x 33 In. x 58 In. 1000 Lb. Capacity Blue	Uniform Capacity (lb.): 1000 Raised Height (in.):58	1044
PST-2464-1-58-115-1		1 Year Limited Warranty	Steel Heavy Duty Portable 115V AC Powered Scissor Lift Table 95-1/16 In. x 33 In. x 58 In. 1000 Lb. Capacity Blue	Uniform Capacity (lb.): 1000 Lowered Height (in.): 10	1044
PST-2464-2-58		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 91 In. x 32-1/2 In. x 58 In. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Raised Height (in.):58	1088
PST-2464-2-58-115-1		1 Year Limited Warranty	Steel Heavy Duty Portable 115V AC Powered Scissor Lift Table 91 In. x 32-1/2 In. x 58 In. 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Lowered Height (in.): 10	1530
PST-2464-3-58		1 Year Limited Warranty	Steel Heavy Duty Portable Scissor Lift Table 94-1/8 In. x 33 In. x 58 In. 3000 Lb. Capacity Blue	Uniform Capacity (lb.): 3000 Raised Height (in.):58	1088
PST-2464-3-58-115-1		1 Year Limited Warranty	Steel Heavy Duty Portable 115V AC Powered Scissor Lift Table 94-1/8 In. x 33 In. x 58 In. 3000 Lb. Capacity Blue	Uniform Capacity (lb.): 3000 Lowered Height (in.): 10	1663

Showing 1 to 22 of 22 entriesPrevious1Next
* Model Number Format: PST – (width)(length) – capacity – raised height

KEY: = Click For Expanded Model Details — = Approval Drawing — = Testing Certificate —
