Name: M1 Full Core Rig System
Brand: Diamond Products
SKU: 18331
Availability: InStock

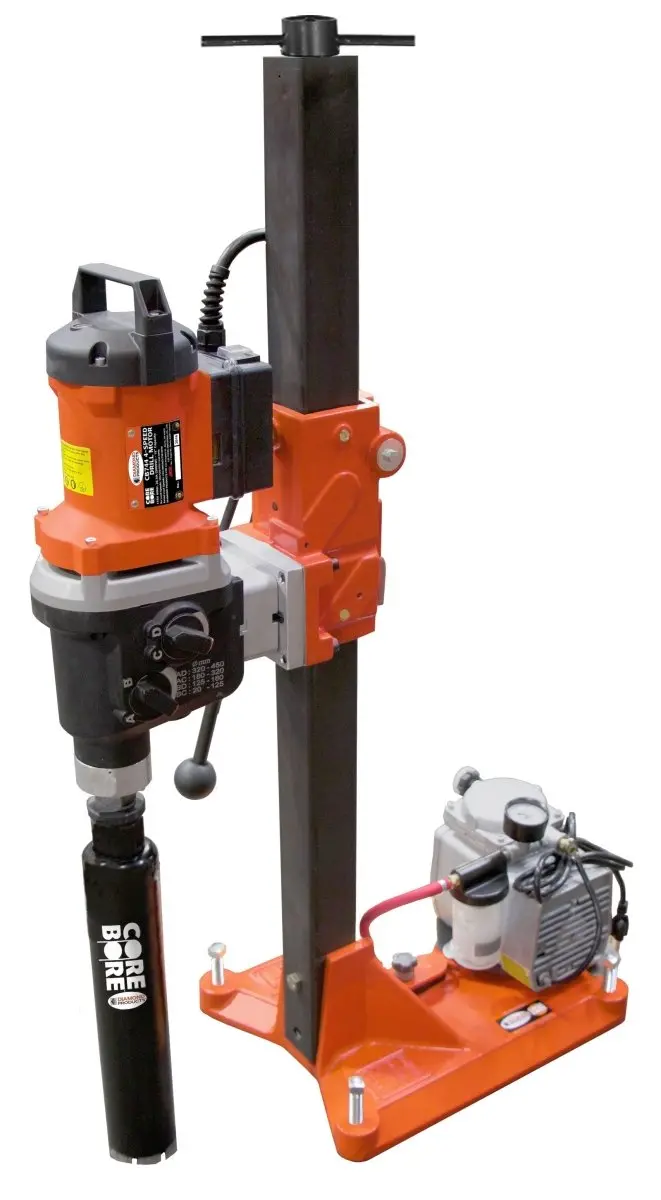

M1 Full Core Rig System

Description

M-1 Complete Core Rigs

Great for the General Contractor

#1 Selling Rig in the U.S.A.

10” Standard Bit Capacity, 14” w/Spacers (Weka)

14″ Standard Bit Capacity (CB733, CB744)

10” Standard Bit Capacity, 14” w/Spacers (Weka)

14″ Standard Bit Capacity (CB733, CB744)

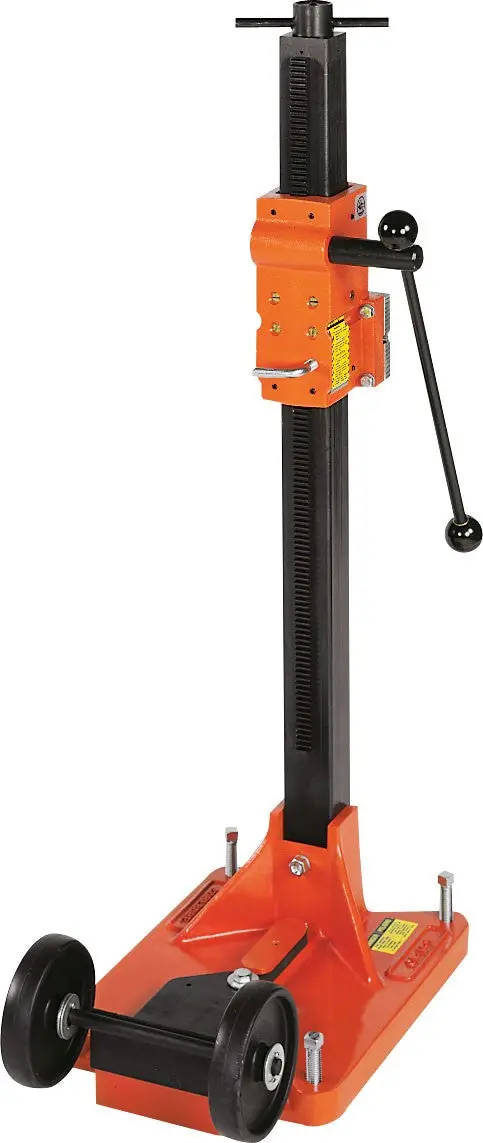

2-1/2” square column (mast) with black oxidized finish
6” wheels for easy mobility
Dual switch/outlet control panel with amp meter (except for CB700 models with LED amp meter)

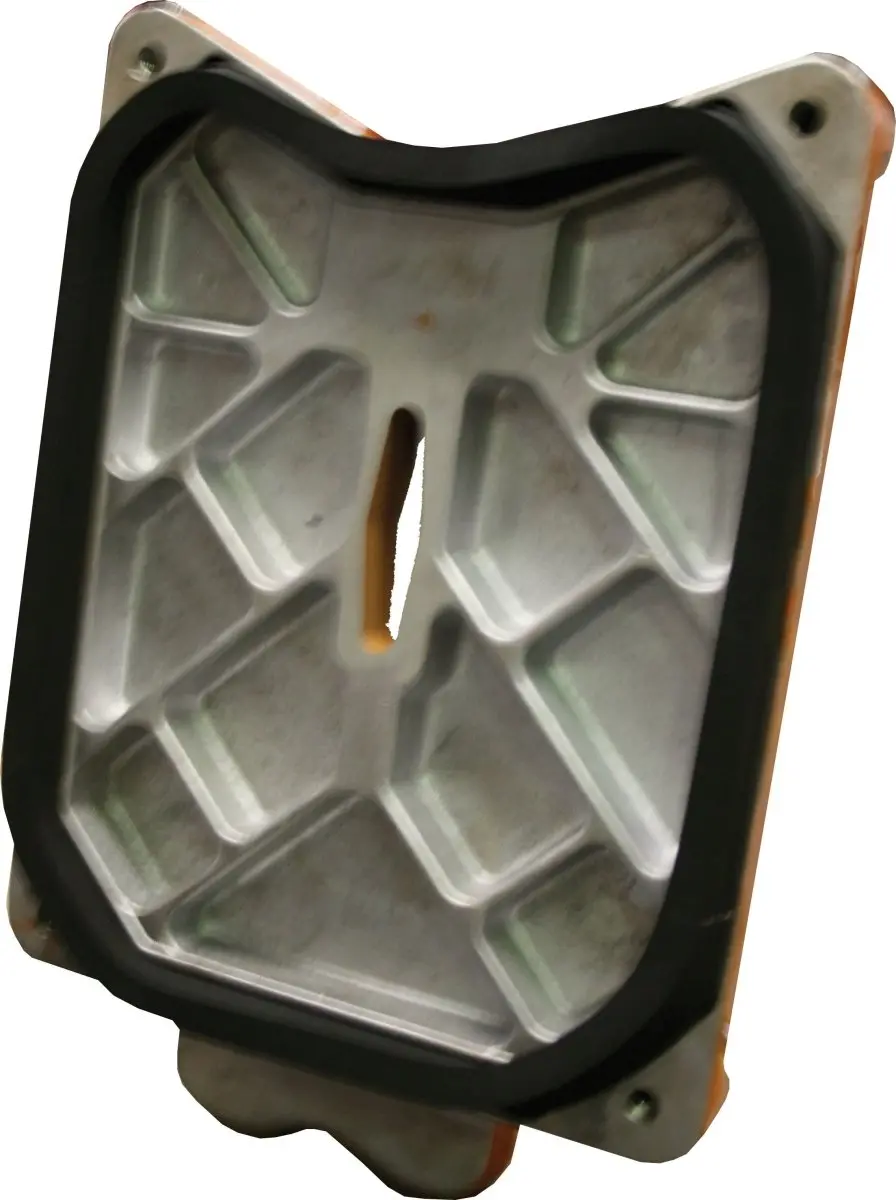

Vacuum pump for quick mounting to flat surface without drilling an anchor hole (included with combination rig)
4 leveling screws on the base
Up to 14” bit capacity with one spacer block
Slide handle allows for drilling in tight areas
Combination base is a quick change over from vacuum to anchor base

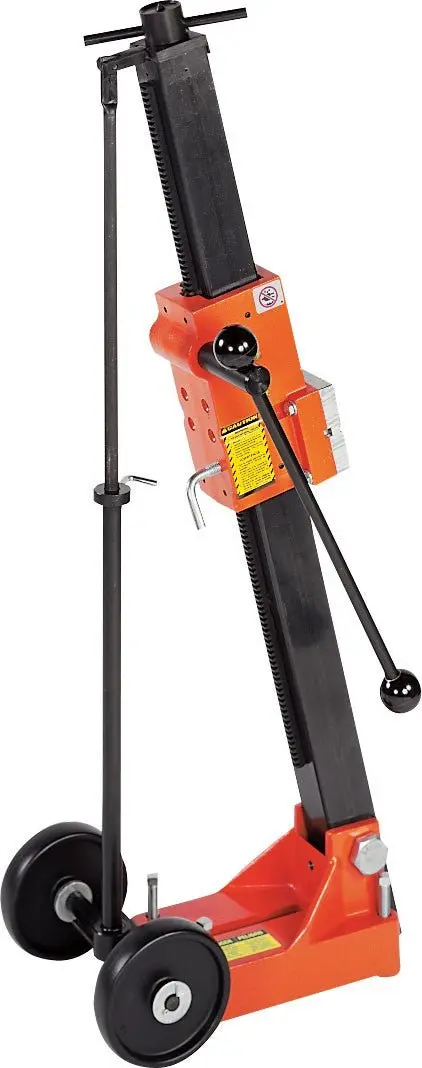

Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece-2 x 4 or other material)]

Engine/Motor Model	Motor/Engine Power	Engine/Motor Make	Motor RPM	Rig Type	Part Number	Catalog Number
CB744	25 amp, 110 volt	Core Bore	385/530/975/1340	Complete rig with add-on vacuum base and vacuum pump	4245104	81050
DK22	23 amp, 110 volt	Weka	300/640/960	Complete rig with add-on vacuum base and vacuum pump	4245053	47173
DK22S	23 amp, 110 volt	Weka	420/880/1300	Complete rig with add-on vacuum base and vacuum pump	4245046	50138
CB744	25 amp, 110 volt	Core Bore	385/530/975/1340	Complete rig without vacuum pump	4245111	81053
DK22	23 amp, 110 volt	Weka	300/640/960	Complete rig without vacuum pump	4245077	71962
DK22S	23 amp, 110 volt	Weka	420/880/1300	Complete rig without vacuum pump	4245078	72583
CB744	25 amp, 110 volt	Core Bore	385/530/975/1340	Anchor rig	4245103	81054
DK22	23 amp, 110 volt	Weka	300/640/960	Anchor rig	4245008	52339
DK22S	23 amp, 110 volt	Weka	420/880/1300	Anchor rig	4245011	66795
CB733	20 amp, 115 volt	Core Bore	550/1000/1600	Complete rig with add-on vacuum base and vacuum pump	4245112	85327
CB733	20 amp, 115 volt	Core Bore	550/1000/1600	Anchor rig	4245114	39195

ATTACHMENTS

Explore more from our collection.

Drills	Core Bore CB733 – 20 Amp, Weka DK22, Weka DK22S, Core Bore CB744 – 25 Amp
Set Up Options	Combo Stand/Motor/Vacuum Pump/Control Panel, Combo Stand/Motor/Vacuum Pump (NO CONTROL PANEL), Combo Stand/Motor (NO PUMP OR CONTROL PANEL), Anchor Stand/Motor (NO COMBO / PUMP OR CONTROL PANEL), Combo Stand/Motor/Control Panel (NO PUMP), Anchor Stand/Motor/Control Panel (NO PUMP OR COMBO)
