Lightweight Portable Offset Jib Cranes

Description

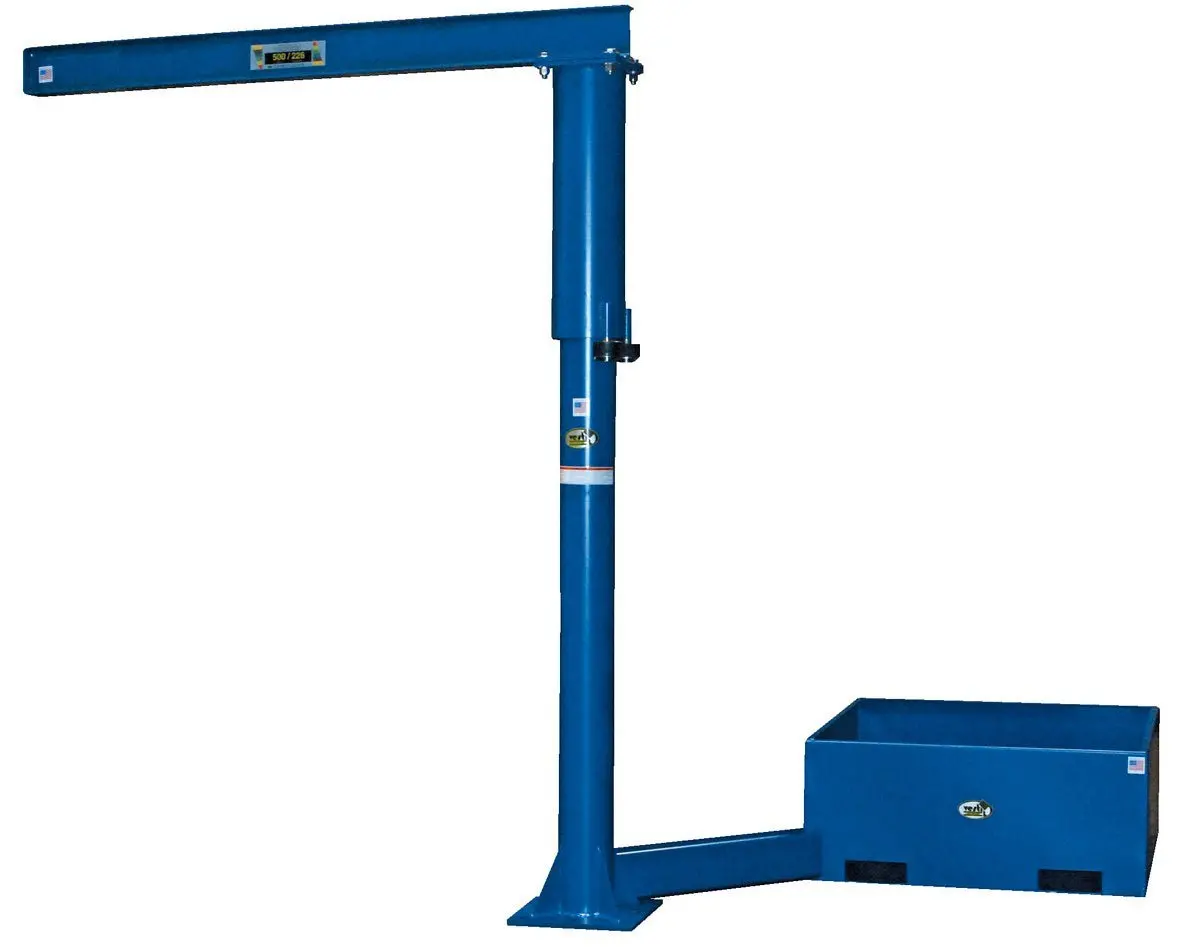

Portable Offset Jib Cranes allows for easy transportation of jib crane with fork truck

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck. Fixed length I-beam will pivot 360 degrees for complete access. Empty base models include instructions for proper filling with concrete. Base size is 42-3/16″ W x 42-3/16″ L x 18″H or 36″H. Built-in fork tubes, measuring 7-1/2″W x 2-1/2″H usable on 24″ centers, for transportation with fork truck. Steel construction with blue painted finish. Units ship knocked down. Not for use as a fork truck attachment. 10′ under I-beam.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Portable Offset Jib Cranes
Model	PDF	Uniform Capacity	I-BEAM Length/Height	Base Height	I-BEAM Flange Width	Wt. (lbs)
JIB-CBX-25-8-10		250	96″/ 6″	18″	4″	1240
JIB-CBX-25-10-10		250	120″/ 6″	18″	4″	1193
JIB-CBX-50-8-10		500	96″/ 6″	18″	4″	1169
JIB-CBX-50-10-10		500	120″/ 10-1/8″	36″	4″	1446
JIB-CBX-100-8-10		1,000	96″/ 10-1/8″	36″	4″	1360
JIB-CBX-18-B		Additional Offset Steel Base- 18″H- Empty				532
JIB-CBX-36-B	–	Additional Offset Steel Base- 36″H-Empty				655
Portable Offset Jib Cranes with Concrete Base
JIB-CBX-25-8-10-BC		250	96″/ 6″	18″	4″	3527
JIB-CBX-25-10-10-BC		250	120″/ 6″	18″	4″	3570
JIB-CBX-50-8-10-BC		500	96″/ 6″	18″	4″	3527
JIB-CBX-50-10-10-BC		500	120″/ 10-1/8″	36″	4″	6268
JIB-CBX-100-8-10-BC		1,000	96″/ 10-1/8″	36″	4″	6234
JIB-CBX-18-BC		Additional Offset Steel Base- 18″H-With Concrete				2870
JIB-CBX-36-BC		Additional Offset Steel Base- 36″H- With Concrete				5449

KEY: = Approval Drawing — = Warranty — = Testing Certificate
