Description

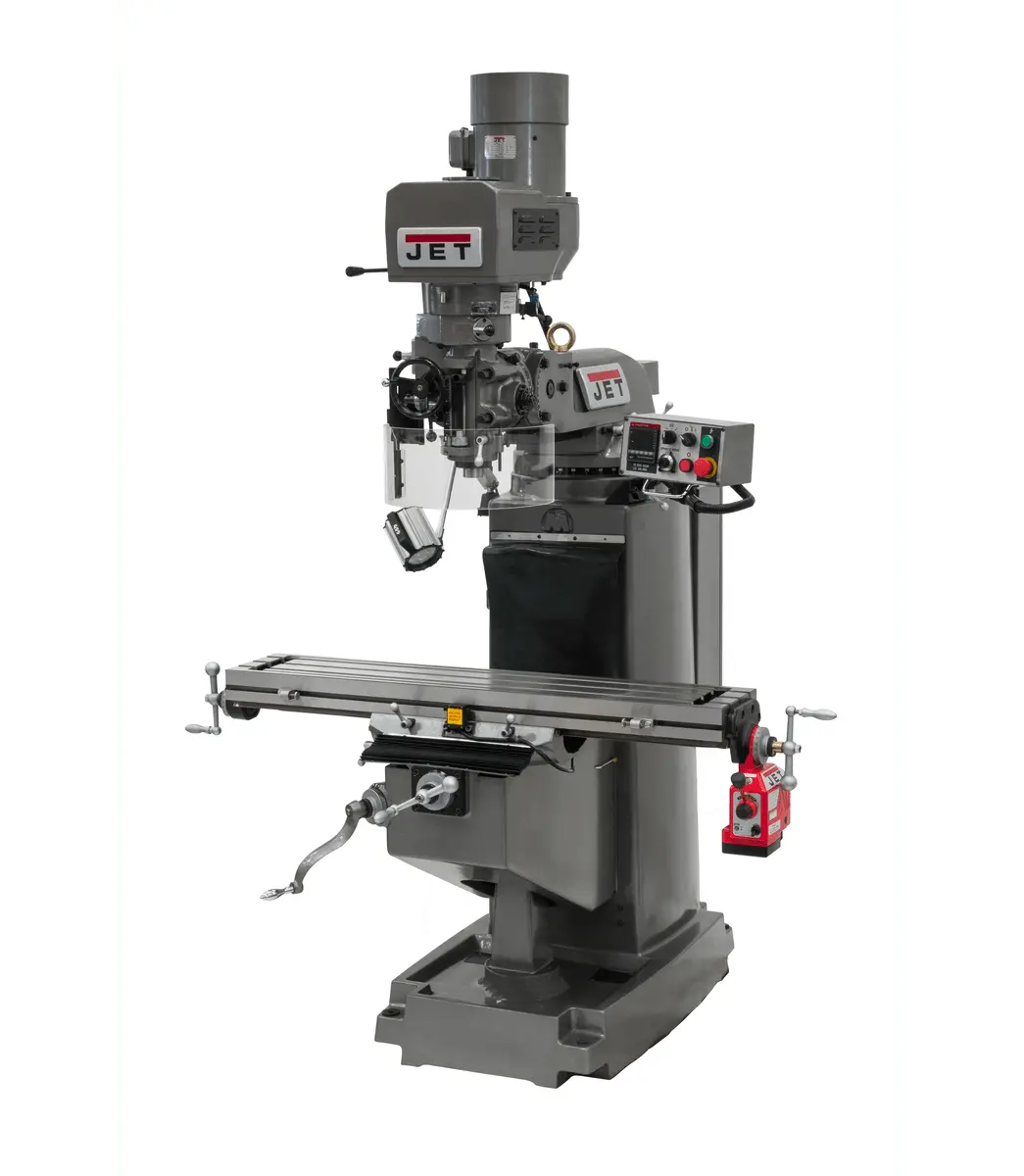

JET offers complete, factory-installed CNC packages with your choice of 2- or 3-axis CNC controls.

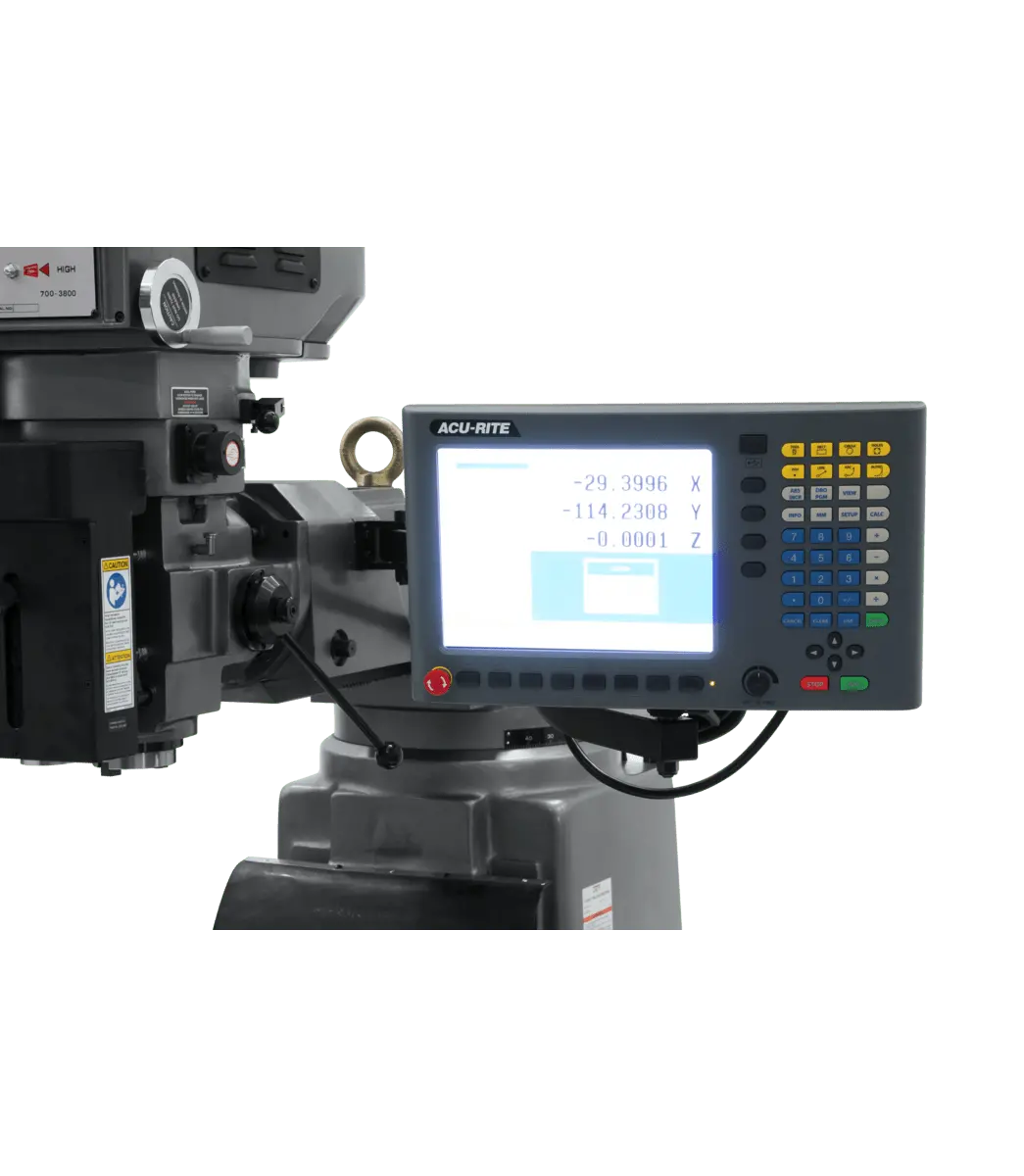

The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features you’ve come to expect backed by the industry-leading JET Two Year Warranty.
Features12.1″ High resolution display (1024 x 768) with 3D graphicsAvailable offline softwareBuilt-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programsClosed loop feedback using Acu-Rite precision linear encoders with 0.00005″ resolutionCNC electronic variable speed vertical milling machine package for JTM-1050EVSEstimated run time featureJog Control allows table movement, quickly from one location to another – using one axis at a time or any two axes simultaneouslyPowerful DC Servo motor assemblies that include mounting castings and hardwarePrecision ground ball screws eliminate backlash for precise lateral movementsUSB + Ethernet compatible
Specs
| Stock Number | 690684 |
|---|---|
| CNC Package | ACU-RITE MILLPWR® G2 |
| Collet Capacity | 1/8 – 7/8 |
| Column Width (In.) | 20 |
| Distance Spindle to Column (Max.) (In.) | 26-3/4 |
| Inverter Type | Delta, B |
| Max Distance Spindle to Table (In.) | 20-3/4 |
| Motor (HP) | 3 HP, 230V, 3Ph |
| Number of Axis | 3 |
| Overall Dimensions (L x W x H) (In.) | 66 x 63 x 87 |
| Power Draw Bar | Pneumatic |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | .0015 – .003 – .006 |
| Range of Spindle Speeds (RPM) | 60 – 4,500 |
| Saddle Width (In.) | 11-1/2 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | CNC |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 14-3/4 |
| Table Longitudinal Travel (In.) | 35-1/3 |
| Table Longitudinal Travel With Powerfeed (In.) | 29-7/8 |
| Table Size (L x W) (In.) | 10 x 50 |
| Travel of Knee (In.) | 16-1/8 |
| Travel of Ram (In.) | 15-7/8 |
| Weight (Lbs.) | 2860 |
| Work Table Weight Capacity (Lbs.) | 840 |
