Description

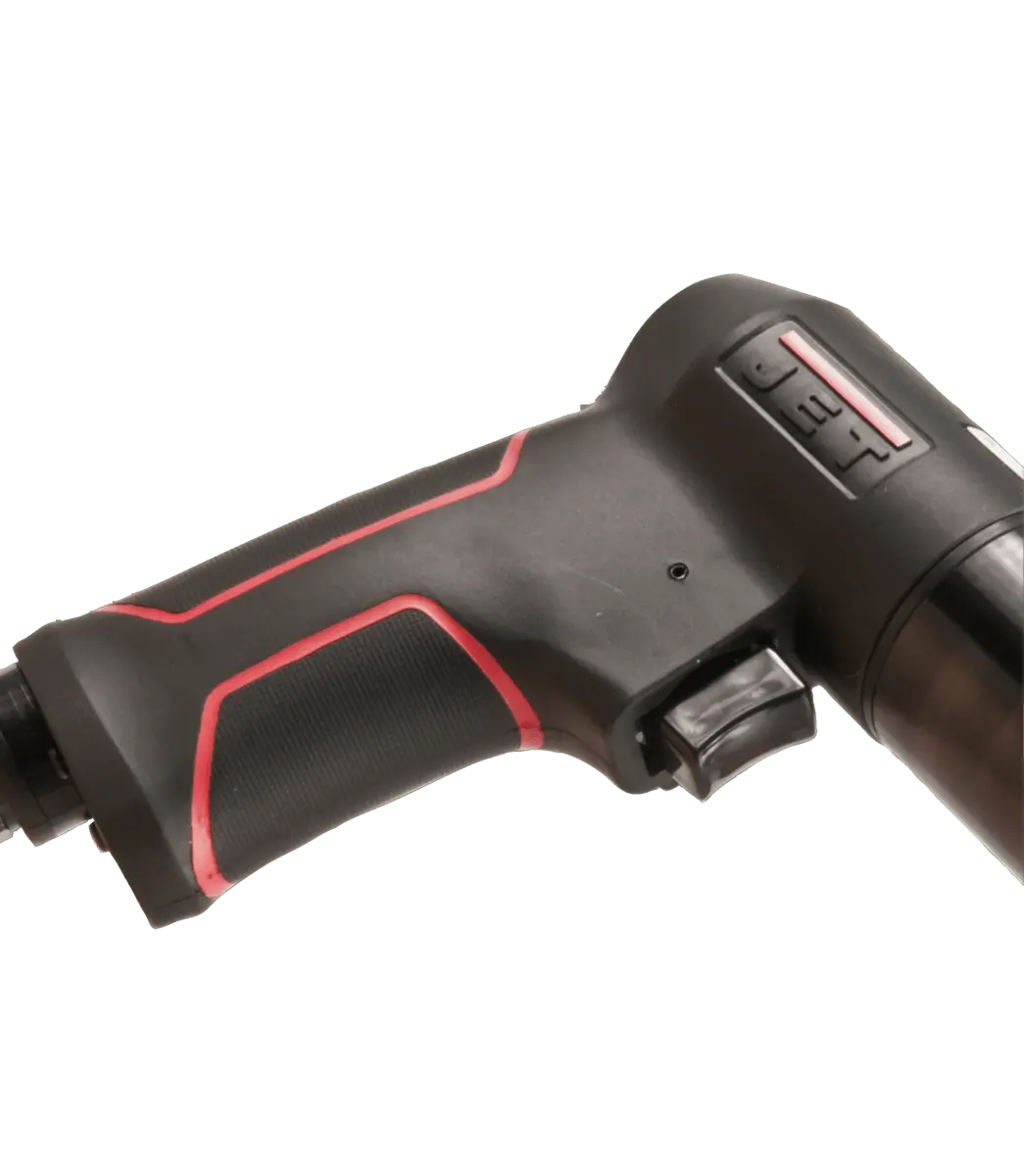

The JAT-620 is 3/8″ composite housing drill build with 1,800 rpm of speed for the Transportation and MRO markets with reversible design and industrial keyed chuck.
Features:
- Impact resistant composite housing reduces tool weight, improving balance and reduces user fatigue
- Industrial Jacobs’s keyed chuck efficiently transfers torque when needed
- Rugged, ball-bearing design for durability
- Sealed ball bearing design keeps out contaminants promoting smooth operation
- Side-mounted, forward/reverse switch for quick and easy direction changes
- Variable-speed trigger for precise speed control
Specs:
| Stock Number | 505620 |
|---|---|
| Air Consumption (CFM) | 4.0000 |
| Air Hose (ID/In.) | 3/8 |
| Air Inlet (NPT) | 1/4 |
| Air Pressure (PSI) | 90 |
| Bullets | Impact resistant composite housing reduces tool weight, improving balance and reduces user fatigue, Industrial Jacobs’s keyed chuck efficiently transfers torque when needed, Rugged, ball-bearing design for durability, Sealed ball bearing design keeps out contaminants promoting smooth operation, Side-mounted, forward/reverse switch for quick and easy direction changes, Variable-speed trigger for precise speed control |
| Chuck Size (In.) | 3/8 |
| Free Speed (RPM) | 1800.0000 |
| Horse Power (HP) | 0.5000 |
| Min. Air Hose (ID) | 3/8 |
| Overall Length (In.) | 7-5/8 |
| Prop 65 | Cancer and Reproductive Harm |
| Sound Power (db) (A) | 101.0000 |
| Sound Pressure (db) (A) | 85.0000 |
| Spindle Thread (In./TPI) | 3/8″-24 UNF |
| Vibration Value (m/s²) | 0.4000 |
| Weight (Lbs.) | 2.56 |
