Description

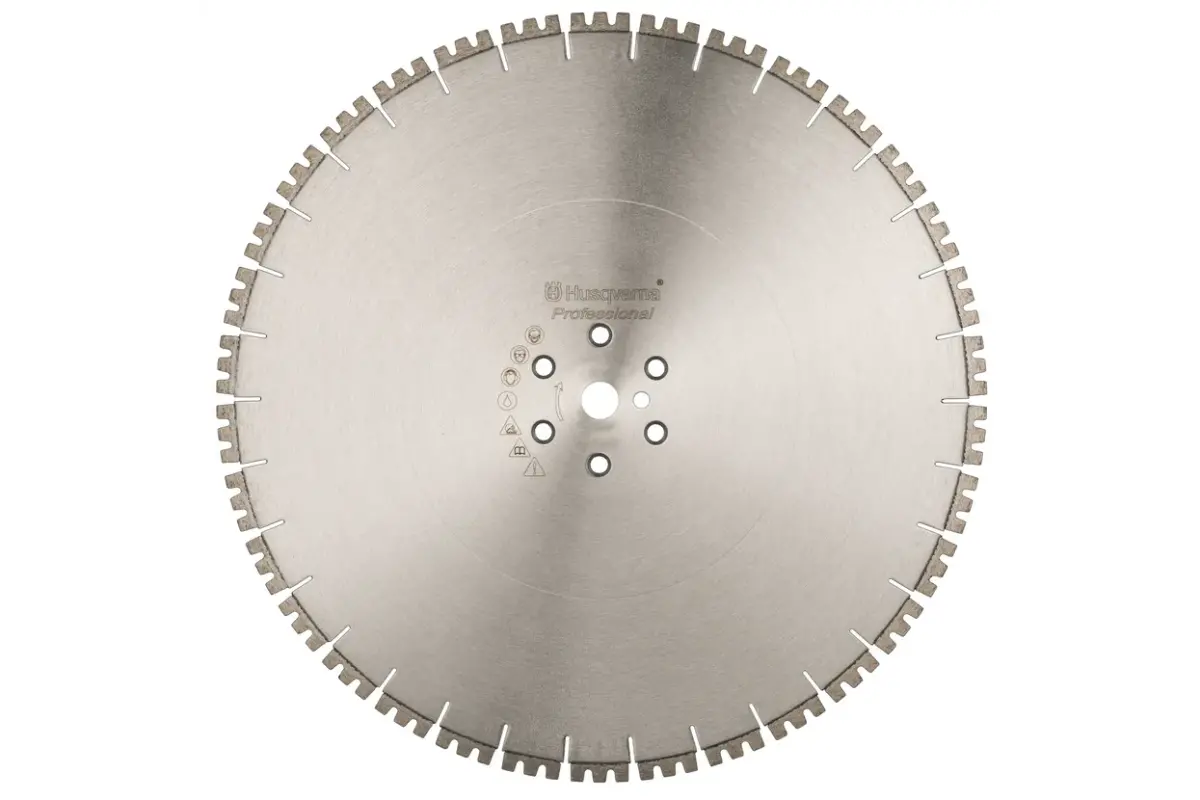

The HH 1430 Hydraulic Hand Saw Blade is an extremely fast cutting blade for use in medium to hard concrete.
Optimal Materials
- Abrasive cured concrete
- Medium reinforcement in concrete
Specifications
| Specification | Details |
|---|---|
| Performance Level | Gold |
| Blade Configuration | Narrow slots |
| Coolant | Wet |
| Arbor Hole Pattern | LYBHP |
| Power Range (Min – Max HP) | 5 hp – 8 hp |
| Silent Blade | No |
Dimensions
| Product Code | Diameter (in) | Arbor Diameter (in) | Segment Length (in) | Segment Width (in) | Segment Height (in) | Packaging Dimensions (in) | Gross Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 24 140 LYBHP HH1430 | 24 | 1″ | 1.575 | 0.14 | 0.52 | 28.504 x 28.504 x 1.378 | 18.706 |
| 20-5/8 140 LYBHP HH1430 | 20.625 | 1″ | 1.575 | 0.14 | 0.52 | 22.48 x 22.48 x 0.984 | 12.13 |
| 20 140 LYBHP HH1430 | 20 | 1″ | 1.575 | 0.14 | 0.52 | 22.52 x 22.52 x 0.984 | 12.13 |
