Description
DMS 400 is a powerful and sturdy electric core drill and stand for medium to heavy core drilling where reliability and high productivity is needed.

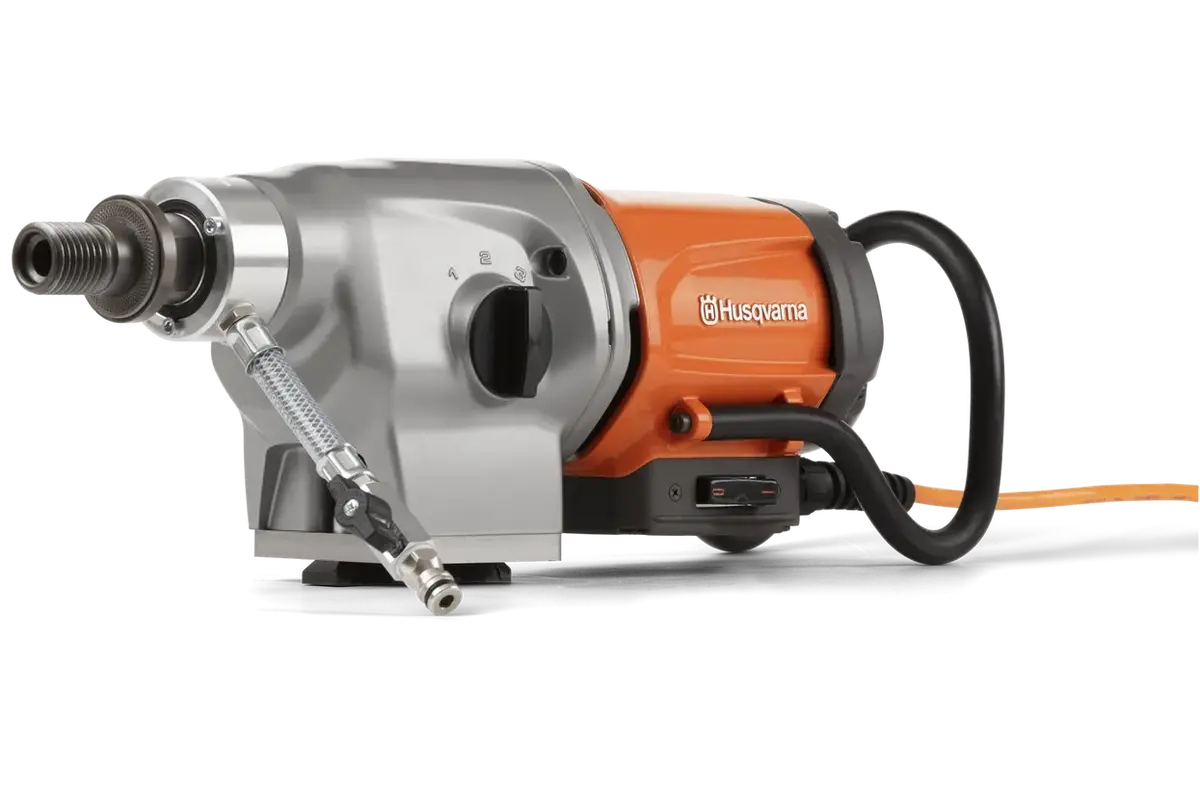

DM 400 is a powerful and sturdy electric core drill for medium to heavy core drilling where reliability and high productivity is needed. Recommended diameter 55-350 mm. With aluminum motor housing to withstand tough handling and a carrying handle for ergonomic usage and additional impact protection of the drill motor. Equipped with Embedded Connectivity, an enhanced version of Husqvarna Fleet Services™ for data analytics and insights into the health of the machine. Suitable for water evacuation, ventilation, angle drilling, stitch drilling and when you need to cut close to corners.
| Rated input power | 4.29 hp |
| Frequency | 50-60 Hz |
| Voltage | 100-120 V |
| Phases | 1 ph |
| Power source | Corded |
| Equipment | |
| Drill bit diameter with stand, max | 14 in |
| Recommended drill bit diameter, min | 2 in |
| Coolant | Wet |
| Transmission | |
| Number of gearbox speeds | 3 |
| Spindle speed unloaded gear 1 | 420 rpm |
| Spindle speed unloaded gear 2 | 820 rpm |
| Spindle speed unloaded gear 3 | 1,250 rpm |
| Product data | |
| Water connector | G 1 / 4″ |
| Water pressure, max | 43.5 psi |
| Spindle thread, outer | 1 1/4″ 7 UNC |
| Dimensions | |
| Product size length | 21.5 in |
| Product size width | 5.5 in |
| Product size height | 7.3 in |
| Weight | 31 lbs |
| Packaging length (Calc) | 24.606 in |
| Packaging width (Calc) | 10.039 in |
| Packaging height (Calc) | 11.811 in |
| Article gross weight (Calc) | 36.597 lbs |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 112 dB(A) |
| Sound power level, measured | 110 dB(A) |
| Sound pressure level at operators ear (LpA) | 92 dB(A) |
Easy to install and operate
The quick-release coupling for drill motor and easy adjustment of back support angle allow for easy setup and angle drilling. The carriage can easily be removed from the column when needed.
Sturdy and durable
The metal design with optimal setup of steel, aluminum and magnesium components ensures stability and durability without adding unnecessary weight.
Optimized RPM’s
Enables high drilling performance
Load indicator
The LED indicator shows the load of the machine, allowing the operator to always drill at maximum pressure, for best performance.
- Angle drilling
- Barriers
- Horizontal drilling
- Stitch drilling
- Water evacuation
- Vertical drilling
