Heavy-Duty Pallet Trucks for Specialized Material Handling

Description

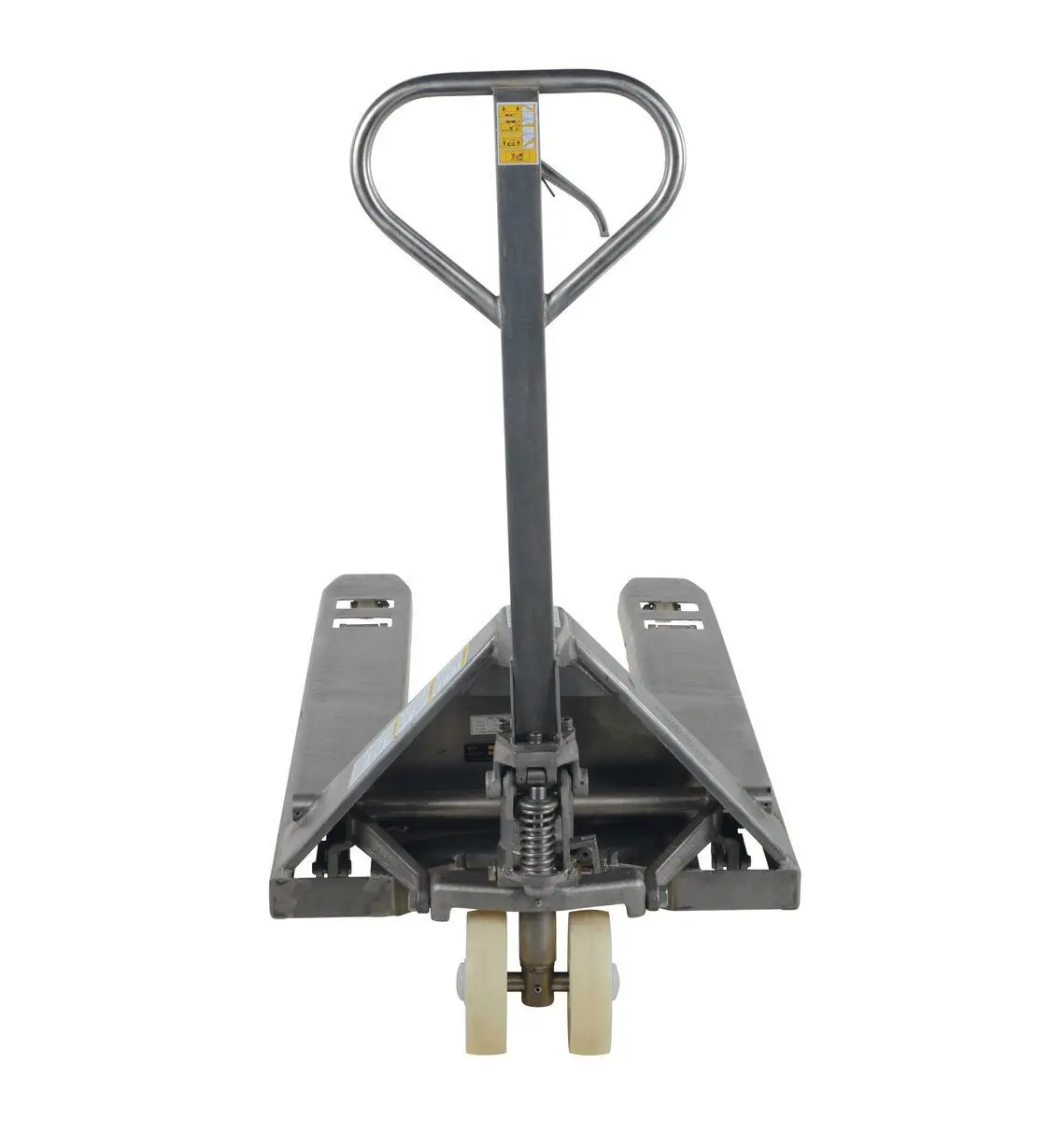

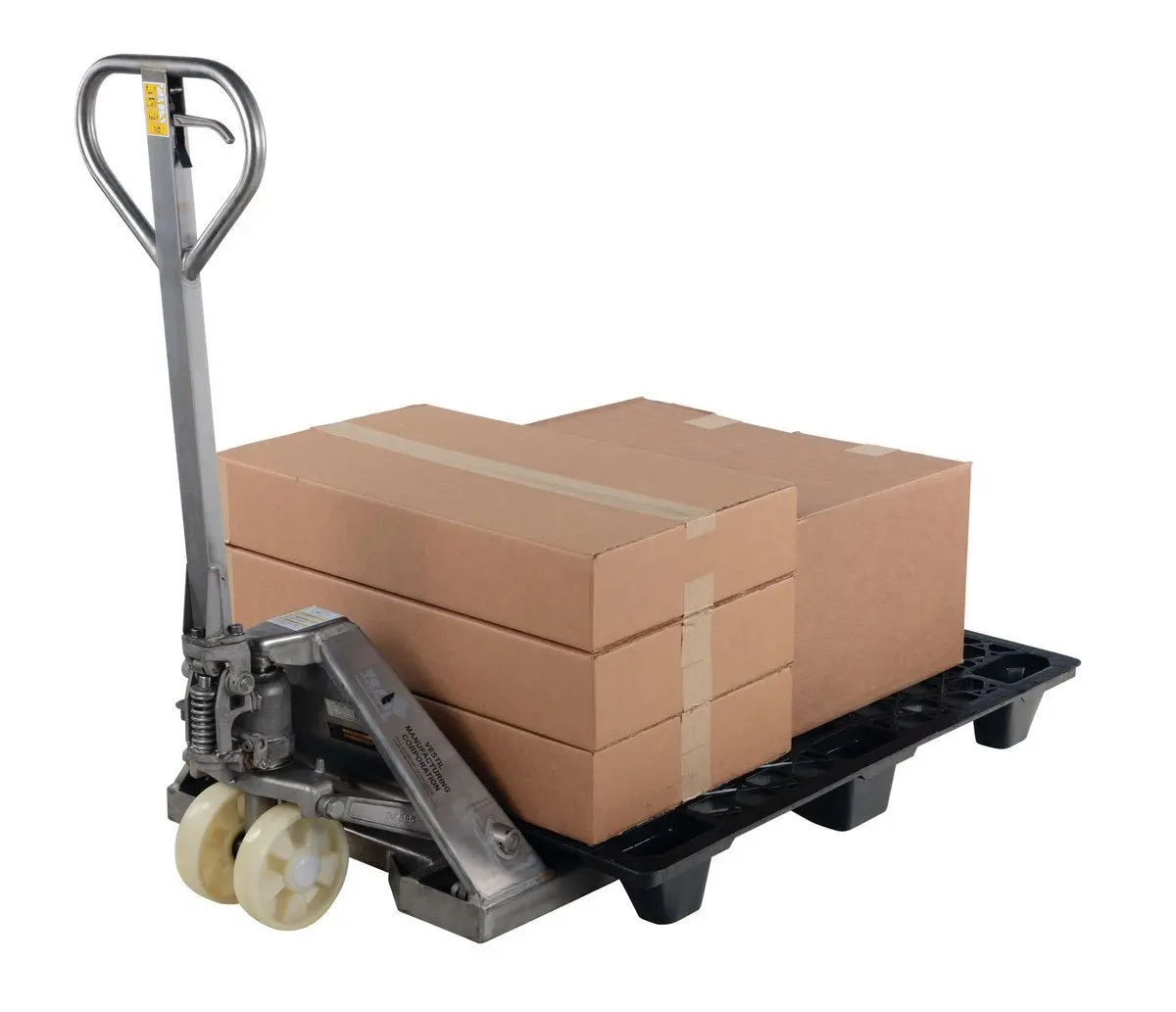

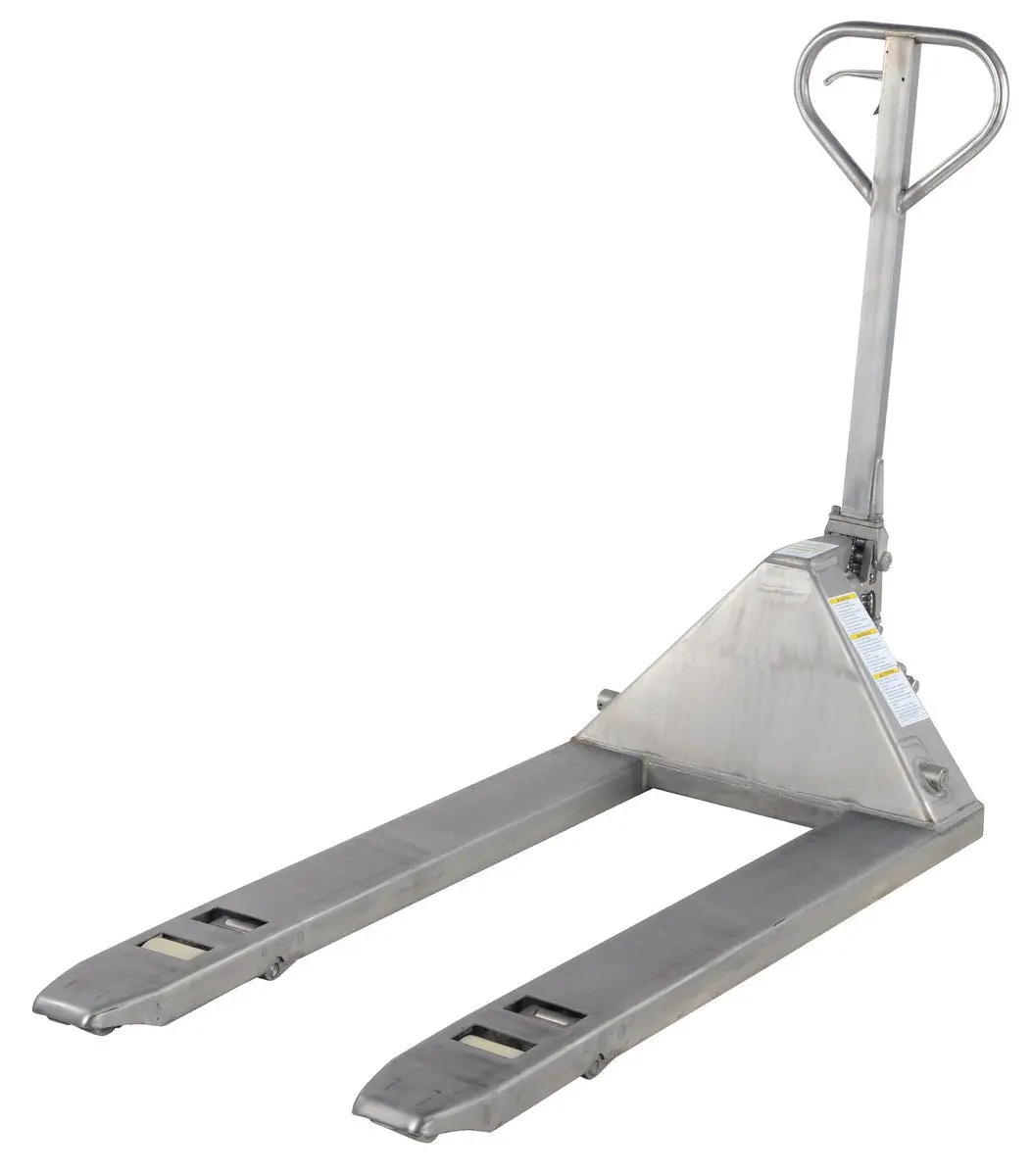

Stainless Steel and Stainless Steel Frame & Forks – Ideal for sanitary, pharmaceutical, medical, food, corrosive, and wet environments.

Ships with the Handle Detached Standard

Choose type 304 stainless steel frame and forks only (chrome handle) or 100% type 304 stainless steel pallet truck for long life in the harshest environments. 5,500 pounds uniform capacity. Individual fork width is 6-1/2″.

Galvanized and Zinc Coated – Ideal for corrosive environments. Full-featured pallet trucks were designed for chemical, pharmaceutical, and wash-down applications. 5,500 pounds uniform capacity.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Specialized Steel Pallet Trucks
Model Number	Image	PDF	Description	Capacity (lbs)	Fork Dim.	Service Range	Wt. (lbs)
PM5-2048-SS			304 Stainless Steel	5,500	21-1/2″Wx45″L	2-7/8″-7-3/4″	232
PM5-2748-SS			304 Stainless Steel	5,500	27″Wx48″L	2-7/8″-7-3/4″	225
PM5-2748-SFF			304 Stainless Frame & Forks	5,500	27″Wx48″L	2-7/8″-7-3/4″	194
PM5-2748-S-Z			Zinc Coated	5,500	27″Wx48″L	2-7/8″-7-3/4″	211
PM5-2048-S-G			Galvanized	5,500	20″Wx48″L	2-7/8″-7-3/4″	182
PM5-2748-S-G			Galvanized	5,500	27″Wx48″L	2-7/8″-7-3/4″	197
(6) SIX PACKS – CRATED
PM5-2748-S-G-6PKG			Galvanized	5,500	27″Wx48″L	2-7/8″-7-3/4″	1141

KEY: = Approval Drawing — = Warranty — = Testing Certificate
