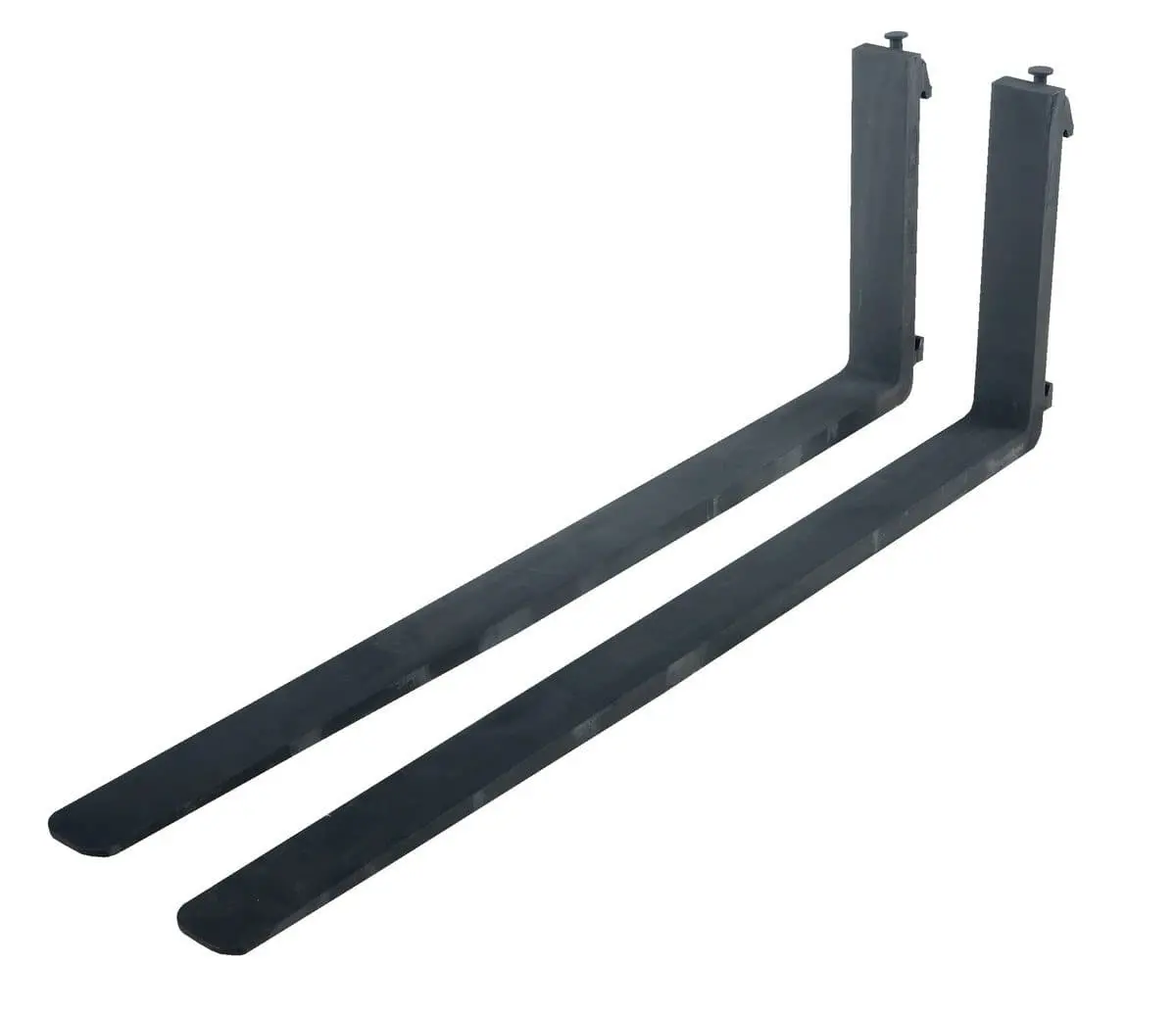

Heavy-Duty Forged Steel Forks

Description

Change your current fork length or buy an extra pair of forks for an emergency with our new Forged Steel Forks. Forks are 4″ wide each. Designed for class II carriage mounting. Meets I.T.A. standards. Available with and without carriage pins.

Forged Steel Forks
Model	Image	PDF	Length (Inches)	Thickness (Inches)	Capacity (lbs)	Wt. (lbs)
F4-1.25-36			36	1-1/4″	3,000	188
F4-1.25-48			48	1-1/4″	3,000	218
F4-1.50-36			36	1-1/2″	4,000	273
F4-1.50-42			42	1-1/2″	4,000	249
F4-1.50-48			48	1-1/2″	4,000	277
F4-1.50-60			60	1-1/2″	4,000	328
F4-1.75-36			36	1-3/4″	5,000	251
F4-1.75-42			42	1-3/4″	5,000	277
F4-1.75-48			48	1-3/4″	5,000	289
F4-1.75-60			60	1-3/4″	5,000	344
Carriage Pin Included
F4-1.25-36-CPL			36	1-1/4″	3,000	188
F4-1.25-48-CPL			48	1-1/4″	3,000	218
F4-1.50-36-CPL			36	1-1/2″	4,000	273
F4-1.50-42-CPL			42	1-1/2″	4,000	249
F4-1.50-48-CPL			48	1-1/2″	4,000	277
F4-1.50-60-CPL			60	1-1/2″	4,000	328
F4-1.75-36-CPL			36	1-3/4″	5,000	251
F4-1.75-42-CPL			42	1-3/4″	5,000	277
F4-1.75-48-CPL			48	1-3/4″	5,000	289
F4-1.75-60-CPL			60	1-3/4″	5,000	344

KEY: = Approval Drawing — = Warranty — = Testing Certificate
