Description

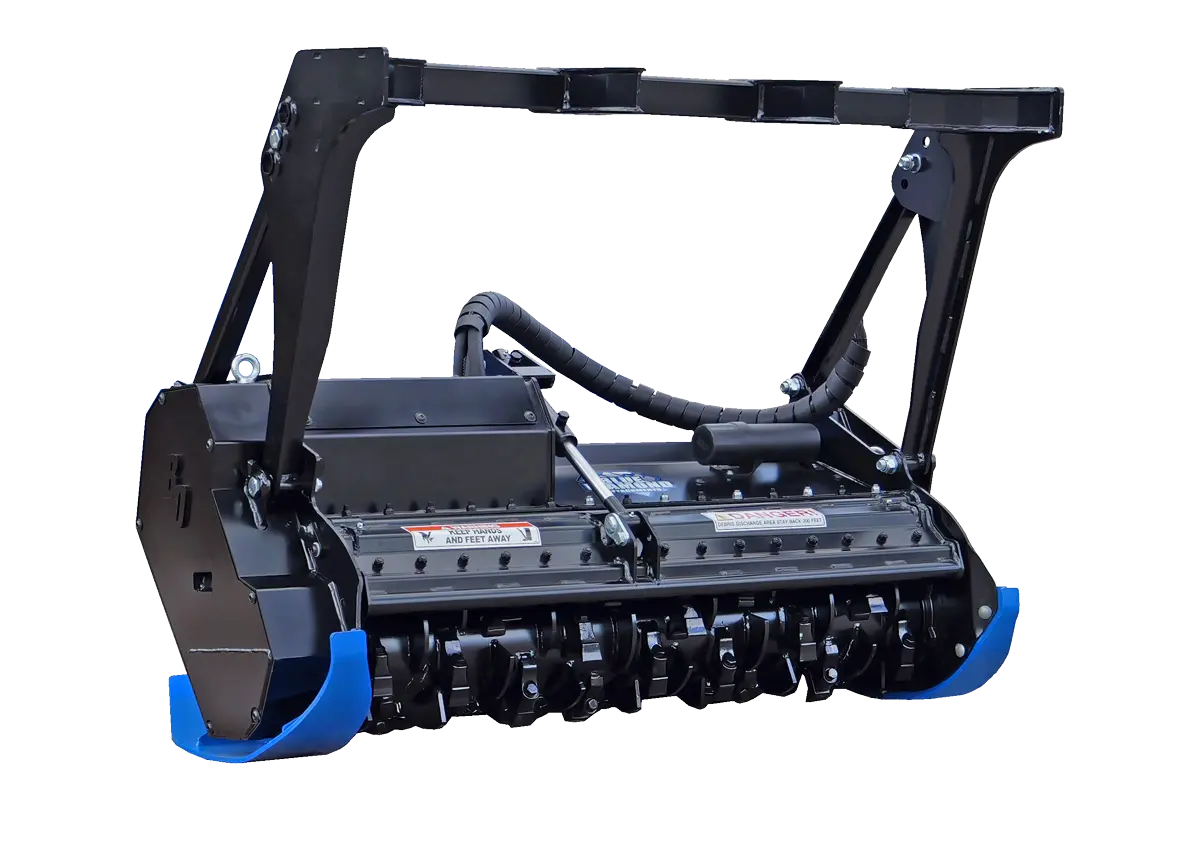

The Blue Diamond Heavy Duty Drum Mulcher is built to tackle the toughest mulching and brush clearing jobs.
Compatible with a wide range of skid steers and compact track loaders, the Heavy Duty model features a 60″ drum and requires only 22-46 GPM hydraulic flow for optimal performance. Perfect for applications in forestry, land clearing & property development, this skid steer mulcher attachment is a cut above the competition!
Features
- 60” drum with carbide or reversible chipping teeth
- Hydraulic gate comes standard
- 3-line or 5-line hydraulic options available
- 1/2” or 3/4” coupler options
- Body built of high strength steel
- Adjustable push bar

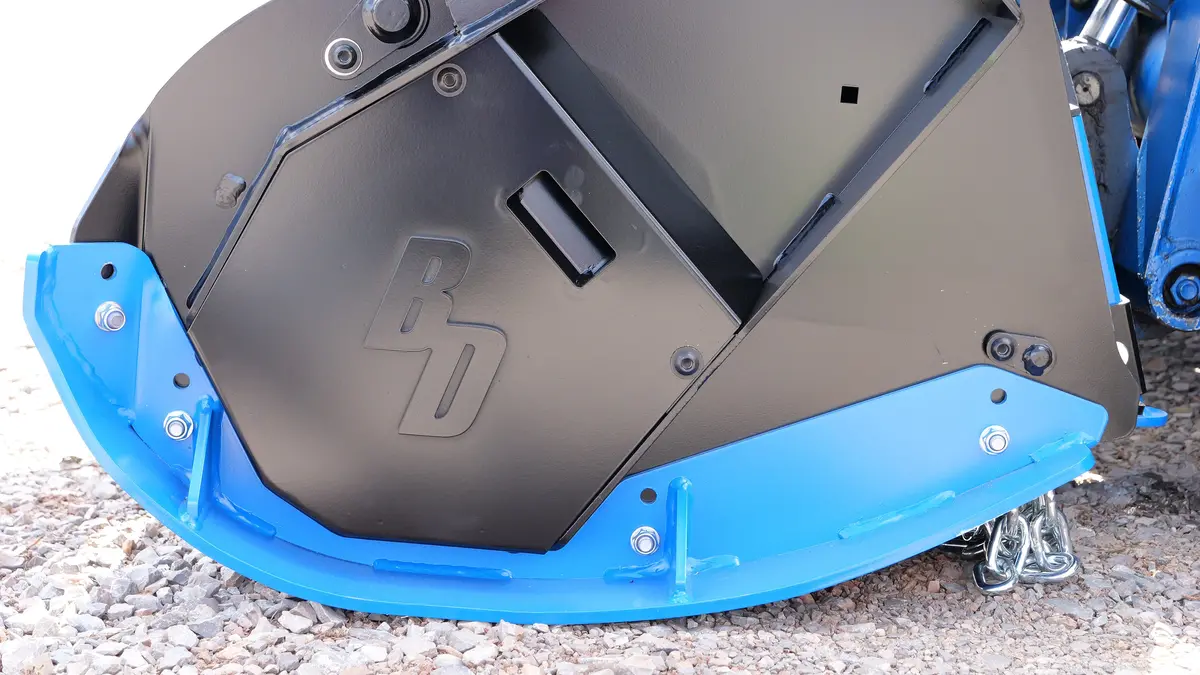

- Adjustable depth skid shoes
- Rotor with replaceable shafts and with fixed teeth in helical position with “P-CUT” bite limiters
- Polychain carbon fiber drive belts
- Side extension device between motor and pulleys with ESB system
- Hydraulic piston motor with variable displacement up to 85CC with built-in anticavitation valve
- 22-46 GPM hydraulic flow required
| Part Number | Model | Coupler | Weight |
|---|---|---|---|
| 390100 | 60” W/Chipping Teeth, 3-line | 1/2″ | 2,105 lbs. |
| 390101 | 60” W/Carbide Teeth, 3-line | 1/2″ | 2,105 lbs. |
| 390102 | 60” W/Chipping Teeth, 5-line | 1/2″ | 2,105 lbs. |
| 390103 | 60” W/Carbide Teeth, 5-line | 1/2″ | 2,105 lbs. |
| 390104 | 60” W/Chipping Teeth, 3-line | 3/4″ | 2,105 lbs. |
| 390105 | 60” W/Carbide Teeth, 3-line | 3/4″ | 2,105 lbs. |
| 390106 | 60” W/Chipping Teeth, 5-line | 3/4″ | 2,105 lbs. |
| 390107 | 60” W/Carbide Teeth, 5-line | 3/4″ | 2,105 lbs. |
