Heavy-Duty Aluminum Yard Ramps with Steel Grating

Description

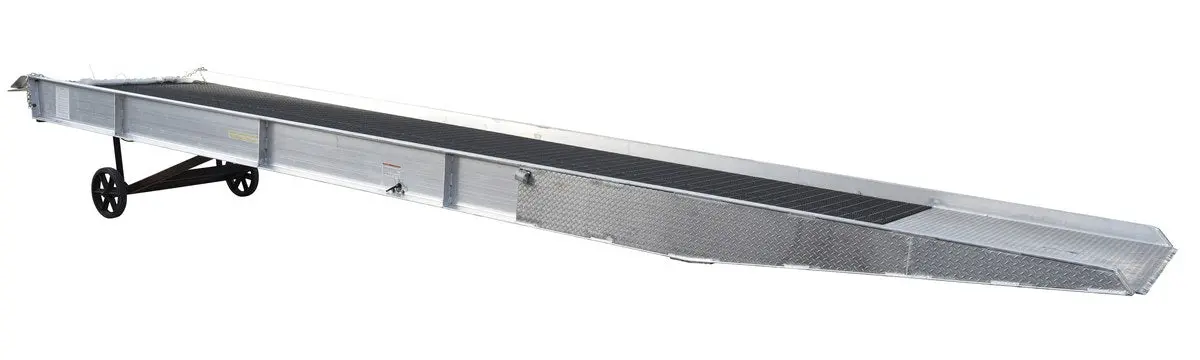

Portable Aluminum Yard Ramps have a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level.

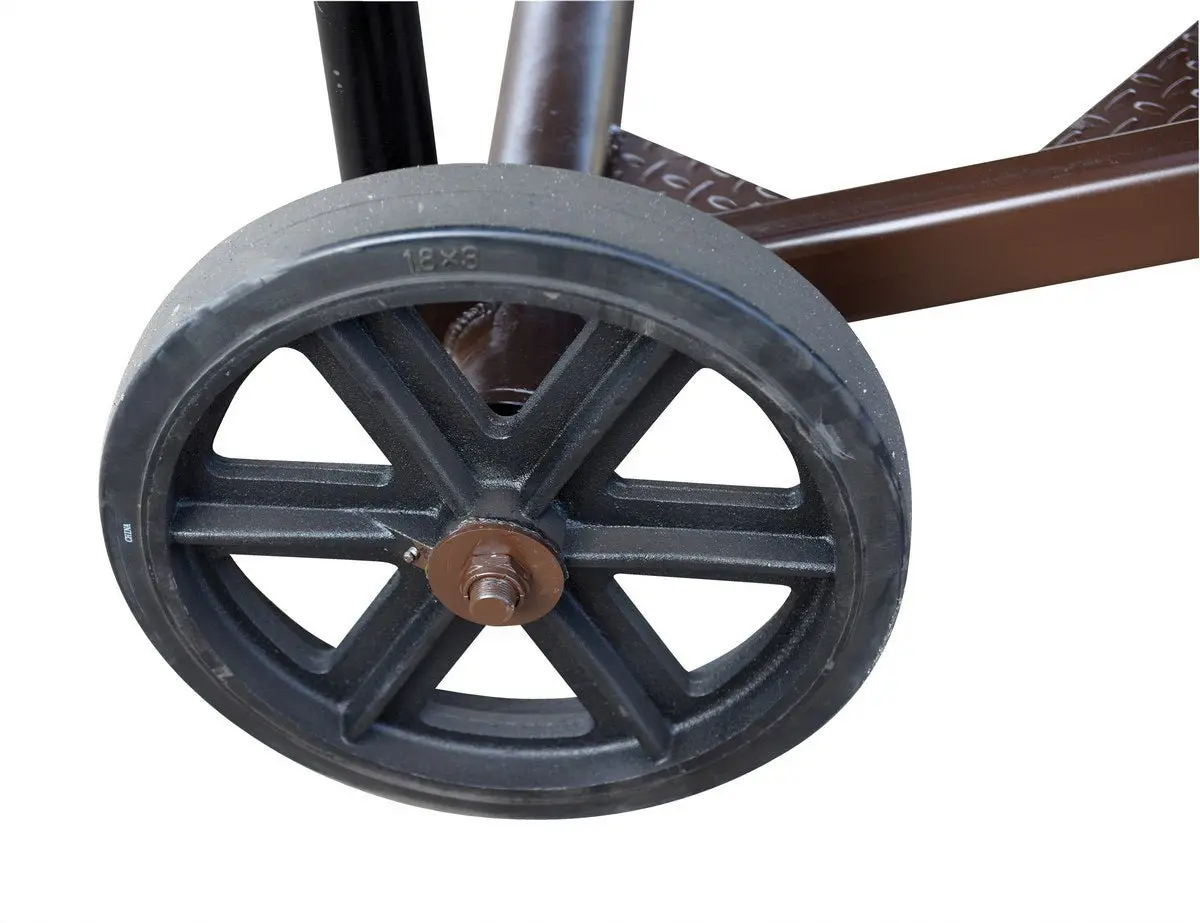

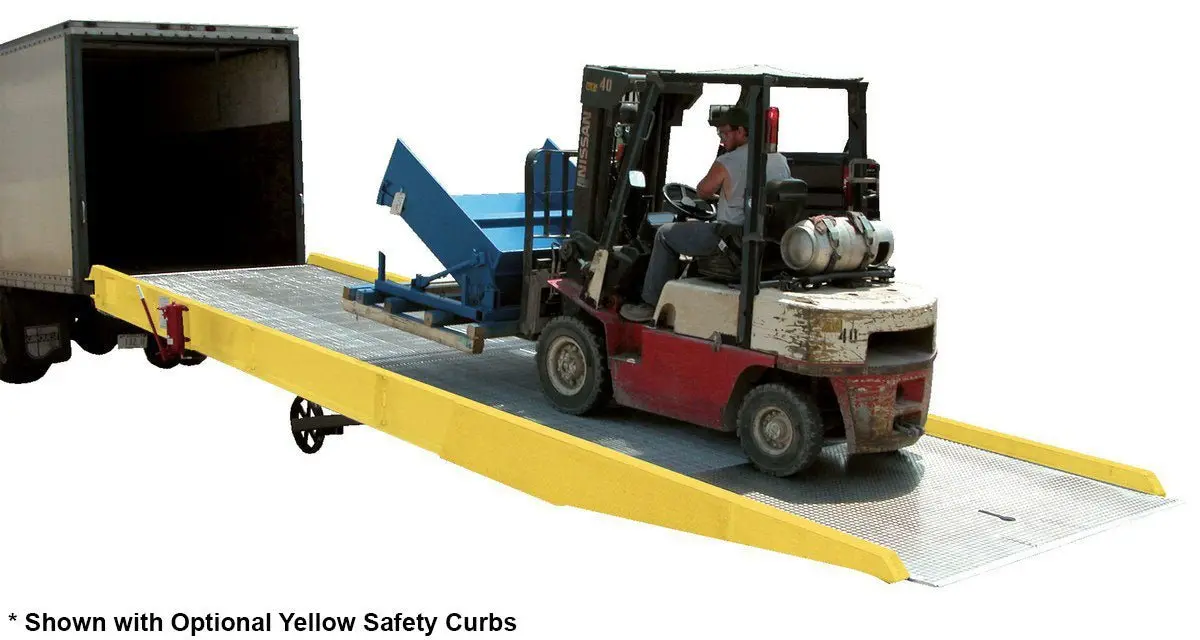

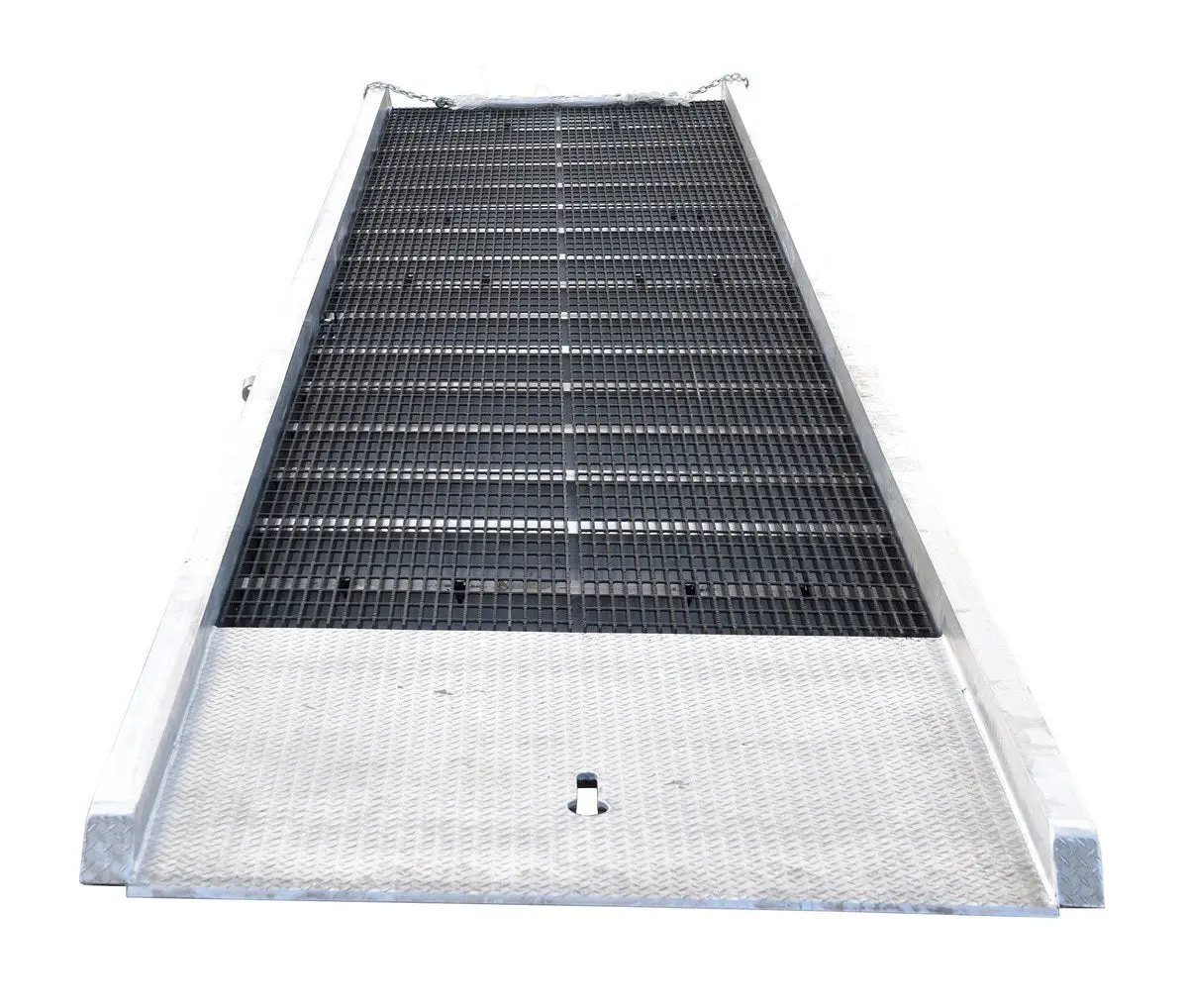

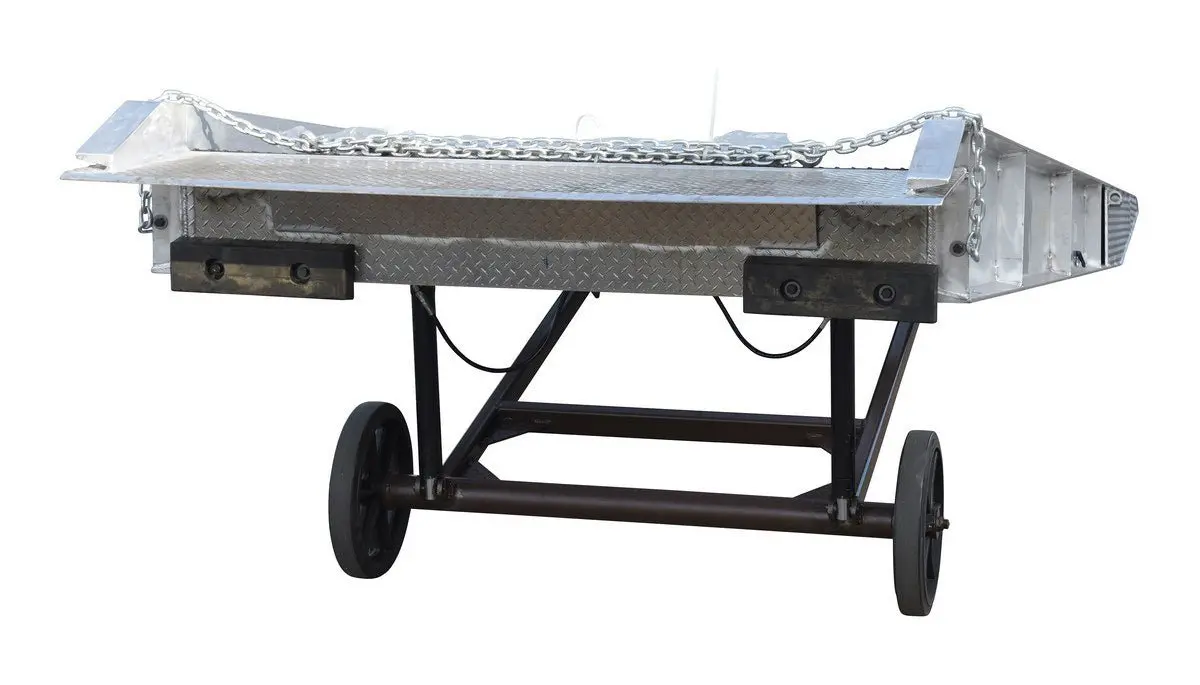

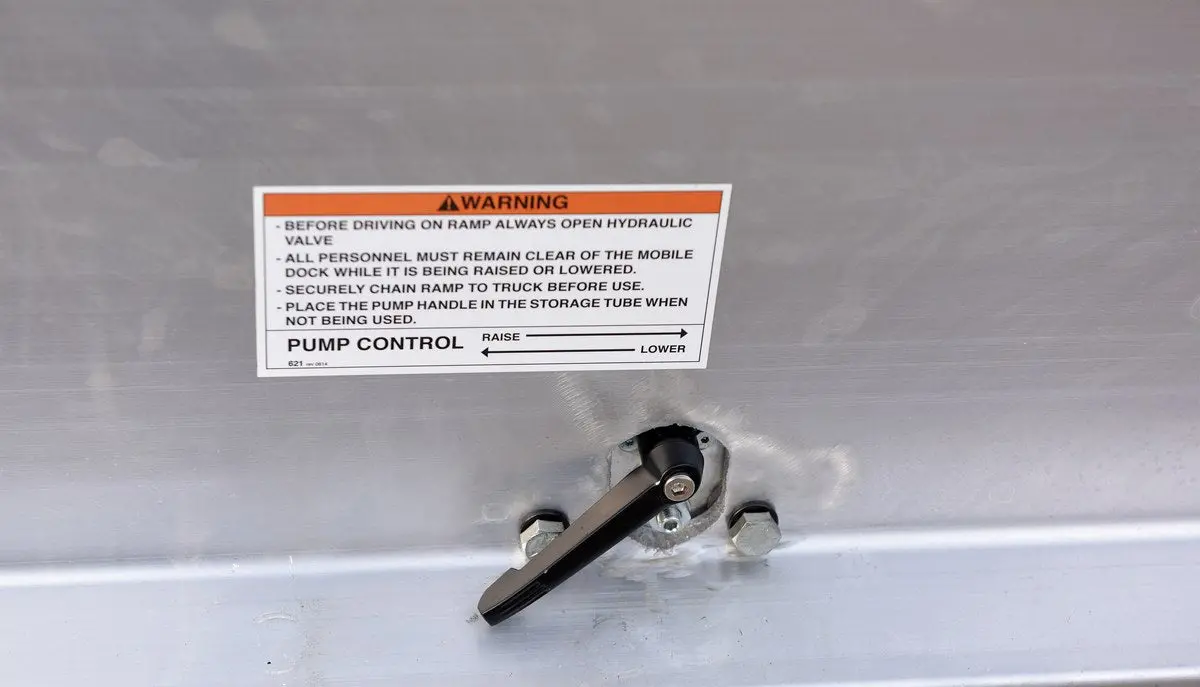

Available with steel or rust resistant aluminum grating. Standard features: Manual hydraulic hand pump (safety pressure relief valve),18″ x 5″ mold-on-rubber tires, 4″ high curbs, service range of 45″ to 62″, anchor chains, and tow bar pocket. Yard ramps ship flatbed truck. (Yellow guards are optional)

Check out our Steel Yard Ramps

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Aluminum Yard Ramps – Alum. Grating
Model	Image	PDFs	Capacity (lbs)	Overall Width	Usable Width	Length	Wt. (lbs)
AY-167230			16,000	74″	66″	30′	2783
AY-168430			16,000	86″	78″	30′	3150
AY-169330			16,000	95″	87″	30′	3465
AY-167236-L			16,000	74″	66″	36′	3360
AY-168436-L			16,000	86″	78″	36′	3728
AY-169336-L			16,000	95″	87″	36′	3990
AY-207230			20,000	74″	66″	30′	3565
AY-208430			20,000	86″	78″	30′	3255
AY-209330			20,000	95″	87″	30′	3570
AY-207236-L			20,000	74″	66″	36	3465
AY-208436-L			20,000	86″	78″	36′	3833
AY-209336-L			20,000	95″	87″	36′	4095
AY-257230			25,000	74″	66″	30′	2940
AY-258430			25,000	86″	78″	30′	3308
AY-259330			25,000	95″	87″	30′	3675
AY-257236-L			25,000	74″	66″	36′	3578
AY-258436-L			25,000	86″	78″	36′	3885
AY-259336-L			25,000	95″	87″	36′	4200
AY-307230			30,000	74″	66″	30′	3092
AY-308430			30,000	86″	78″	30′	3360
AY-307236-L			30,000	74″	66″	36′	3570
AY-308436-L			30,000	86″	78″	36′	3938
Aluminum Yard Ramps – Steel Grating
SY-167230			16,000	74″	66″	30′	3518
SY-168430			16,000	86″	78″	30′	4043
SY-169330			16,000	95″	87″	30′	4515
SY-167236-L			16,000	74″	66″	36′	4305
SY-168436-L			16,000	86″	78″	36′	4830
SY-169336-L			16,000	95″	87″	36′	5303
SY-207230			20,000	74″	66″	30′	3623
SY-208430			20,000	86″	78″	30′	4148
SY-209330			20,000	95″	87″	30′	4620
SY-207236-L			20,000	74″	66″	36′	4410
SY-208436-L			20,000	86″	78″	36′	4935
SY-209336-L			20,000	95″	87″	36′	5408
SY-257230			25,000	74″	66″	30′	3675
SY-258430			25,000	86″	78″	30′	4200
SY-259330			25,000	95″	87″	30′	4725
SY-257236-L			25,000	74″	66″	36′	4463
SY-258436-L			25,000	86″	78″	36′	4988
SY-259336-L			25,000	95″	87″	36′	5513
SY-307230			30,000	74″	66″	30′	3728
SY-308430			30,000	86″	78″	30′	4253
SY-307236-L			30,000	74″	66″	36′	4515
SY-308436-L			30,000	86″	78″	36′	5040

KEY: = Approval Drawing — = Warranty — = Testing Certificate
