Description

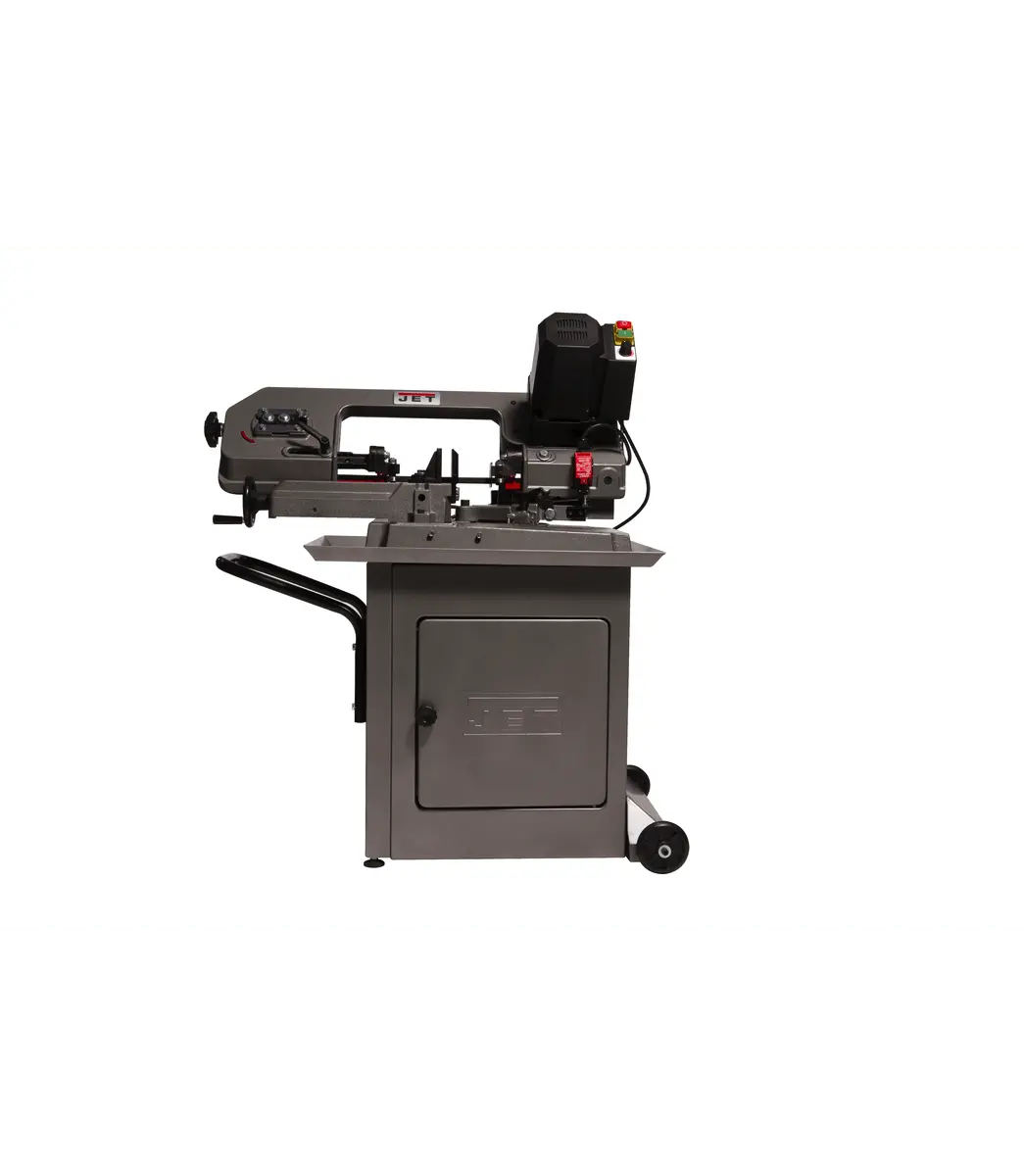

This JET Variable Speed, Mitering Bandsaw packs the features in a small package. The exclusive 5×6 Portable Variable Speed Mitering Bandsaw includes a newly designed motor with a 3-step gear transmission for unprecedented torque output.
The versatile heavy-duty casted head swivels for a maximum cut at 45° & 60° allowing precision cuts without the hassle of moving the material. CSA/CUS Certified.
Front legs feature leveling padsFully adjustable ball bearing blade guidesHardened Ferrous 82-130 SFPMQuick speed changes with the turn of a dial, no more belt changesVariable Speed gives you the ability to cut various materialWheels come standard for ease of movement around your shop
| Stock Number | 414558 |
|---|---|
| Amperage | 3.8 |
| Amperage Draw @ 115V 1Ph | 3.8 |
| Bed Height (In.) | 28 |
| Blade Speed (SFPM) | Variable 80-230 |
| Blade Speeds (SFPM) | Variable, 80-230 |
| Blade Wheel Diameter (In.) | 7-3/8 |
| Electrics | 1/2HP, 115/230V/ 1Ph Prewired 115V |
| Gross Weight (Lbs) | 147 |
| Motor (HP) | 1/2 HP, 115V, Single Phase |
| Net Weight (Lbs.) | 136 |
| Overall Assembled (Bow Lowered) (L x W x H) | 38.58 x 20.47 x 47.3 |
| Overall Dimensions (L x W x H) (In.) | 38.58 x 20.47 x 43.3 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Rectangle at 45 Degrees (In.) | 3-3/4 x 2-1/3 |
| Rectangle at 60 Degrees (In.) | 1-1/4 x 1-3/4 , 5 x 1-3/4 |
| Rectangle at 90 Degrees (In.) | 5 x 6 , 2 x 6 |
| Round at 45 Degrees (In.) | 3-3/4 |
| Round at 90 Degrees (In.) | 5 |
| Shipping Dimensions (L x W x H) (In.) | 35.43 x 17.5 x 21.65 |
| Shipping Weight (Lbs.) | 147 |
| Vise Swivels (Deg.) | 0 – 60 |
| Weight (Lbs.) | 147 |
| Blade Size (In.) | 1/2 x .025 x 64-1/2 |
