Description
Groves Bundle Rack
Store bundles or slabs in your shop or warehouse with ease in this well designed, patented rack!
Features:
- Heavy-Duty powder coated finish.
- Post height options available (40″, 60″ or 80″)
- Complete with 11” connector tube for butting rails together in a straight line for desired length
- Rails built with 2” square holes spaced 4” apart (10 holes). A steal plate with identical holes is welded and boxed inside the rail, 1” up from the bottom

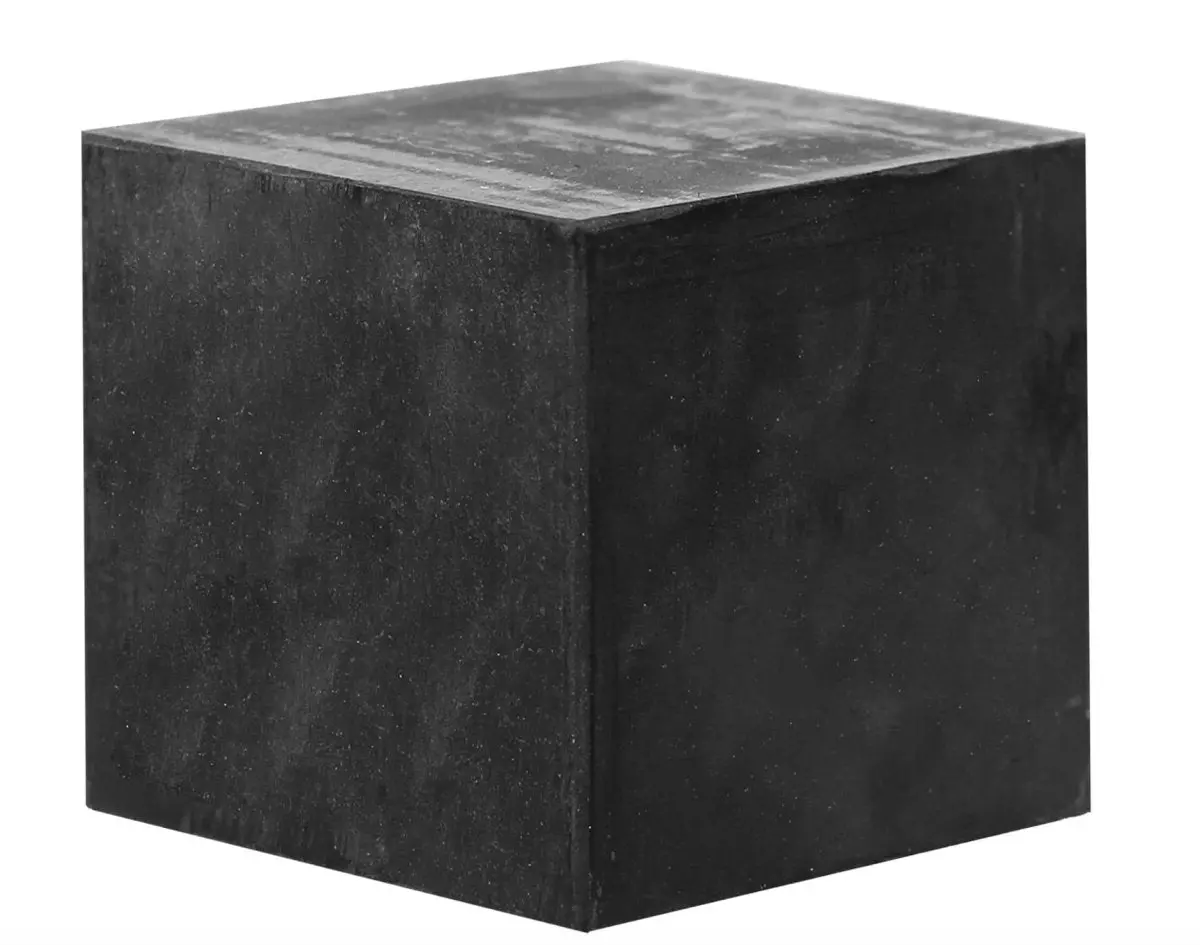

- 2” square tube posts ad 2” square rubber post caps to separate bundles and slabs

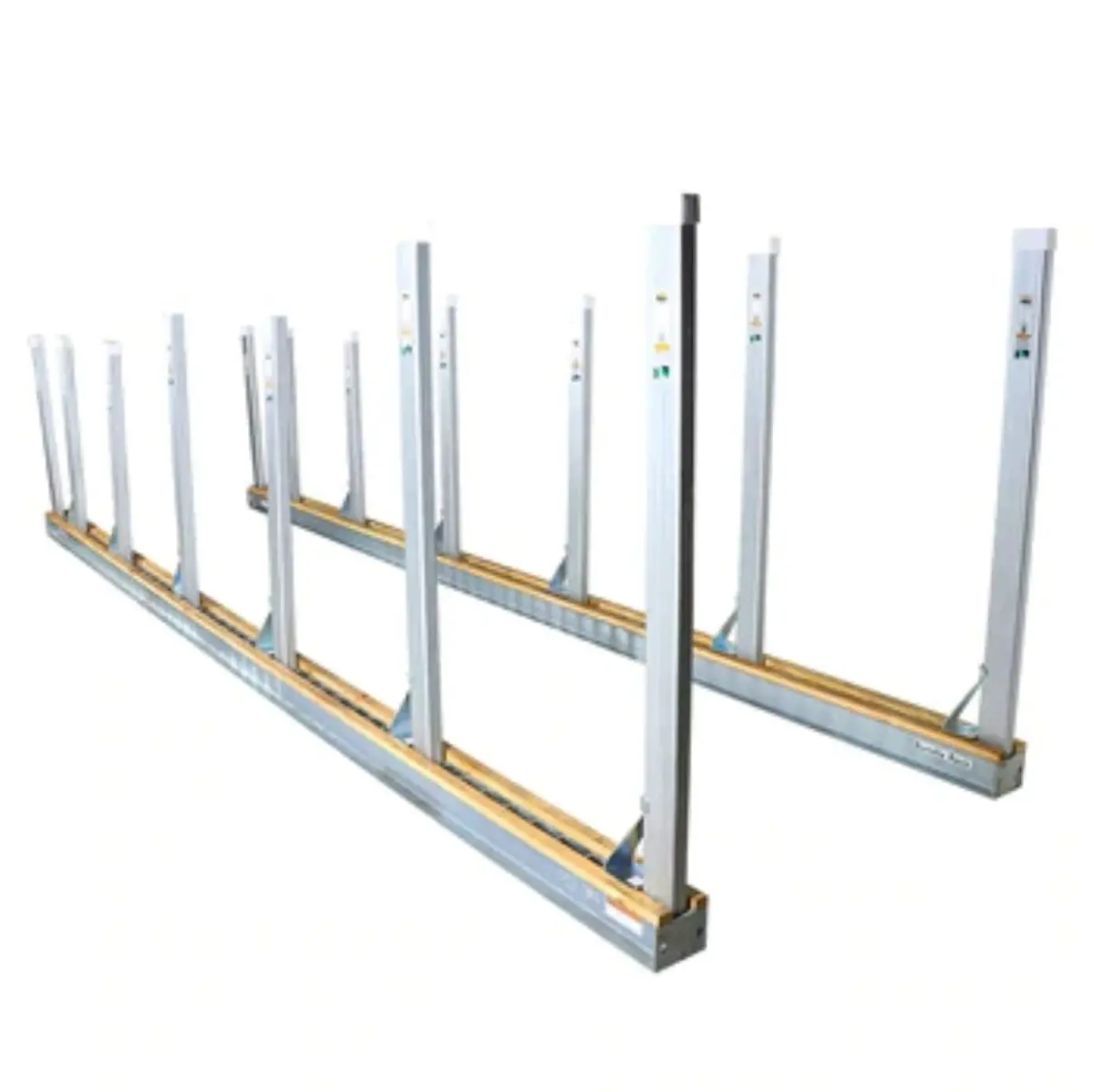

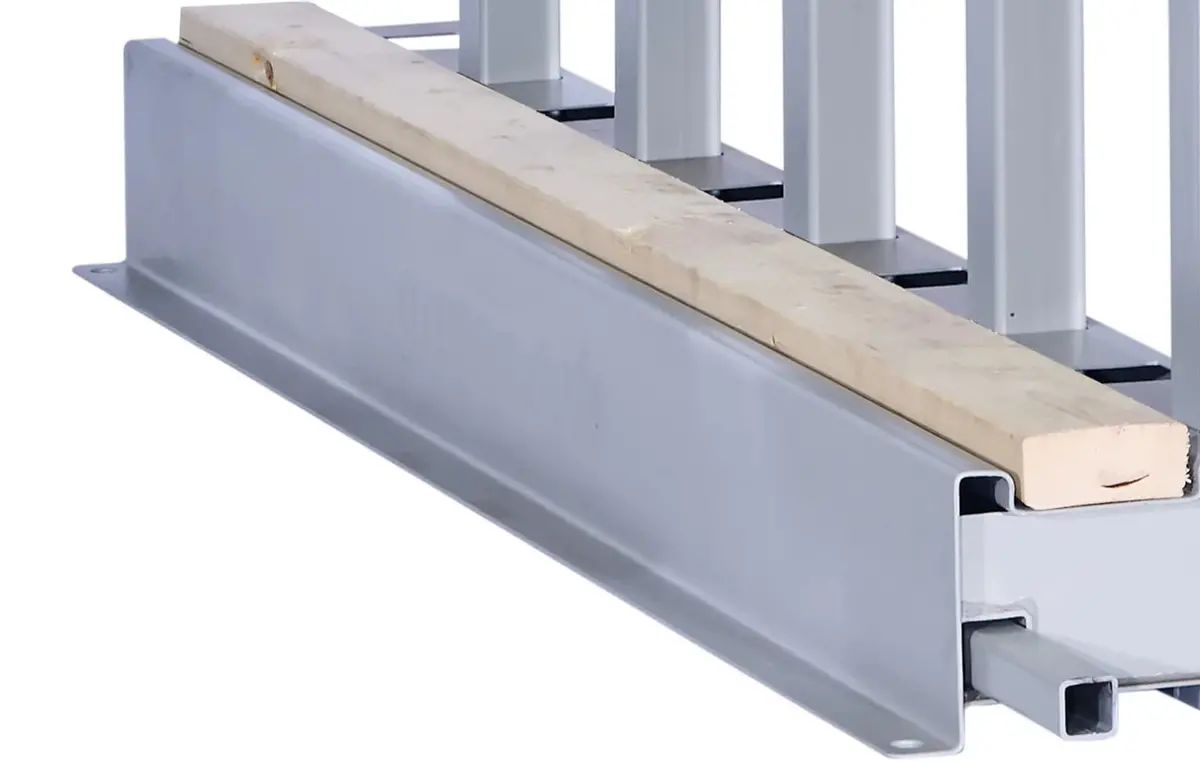

- Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4’s not included)
- Patent # 7143901
Specifications:
| SUGGESTED PACKAGES FOR BUNDLES OR SLABS USING 60″ POSTS | ||||
|---|---|---|---|---|
| Part No. | Length | Openings | Parts in Package | Weight lbs. |

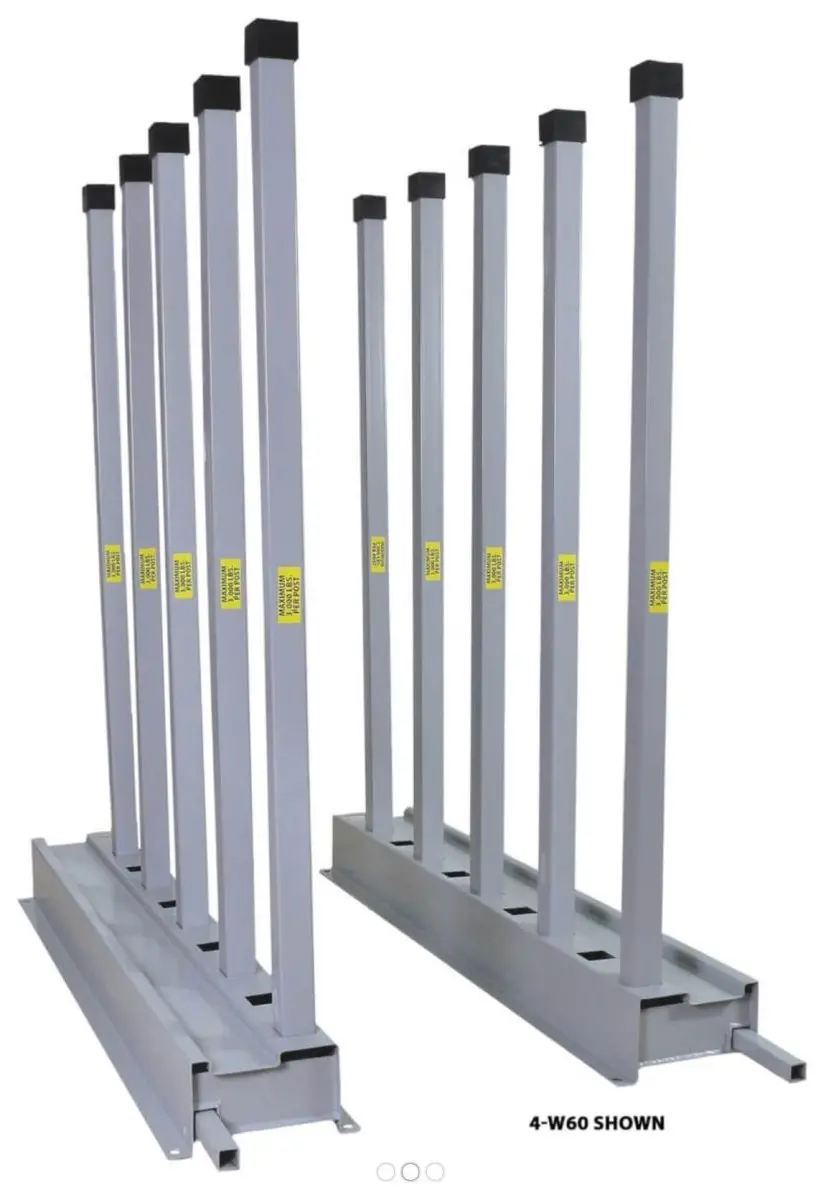

| 4-W60 | 5′ | 4 | 2 BR-5, 10 SP-60 | 260 |
| 9-W60 | 10′ | 9 | 4 BR-5, 20 SP-60 | 520 |
| 19-W60 | 20′ | 19 | 8 BR-5, 40 SP-60 | 1,040 |
| 49-W60 | 50′ | 49 | 20 BR-5, 100 SP-60 | 2,600 |
SAFETY WARNING:
MAXIMUM WEIGHT ALLOWED PER OPENING IN BASE IS 9,000 LBS. (4,500 LB. PER POST)
MINIMUM OF 2-DEGREE ANGLE WHEN DROPPING STONE IN-BETWEEN POSTS
INSPECT POSTS EACH TIME USED
NOTE: WHEN ASSEMBLED THE OVERALL HEIGHT OF THE POSTS ARE 5.5″ LESS THAN LISTED (EXAMPLE: 60″ POST WILL BE 54.5″ ABOVE THE TOP OF THE RAIL)
