Description

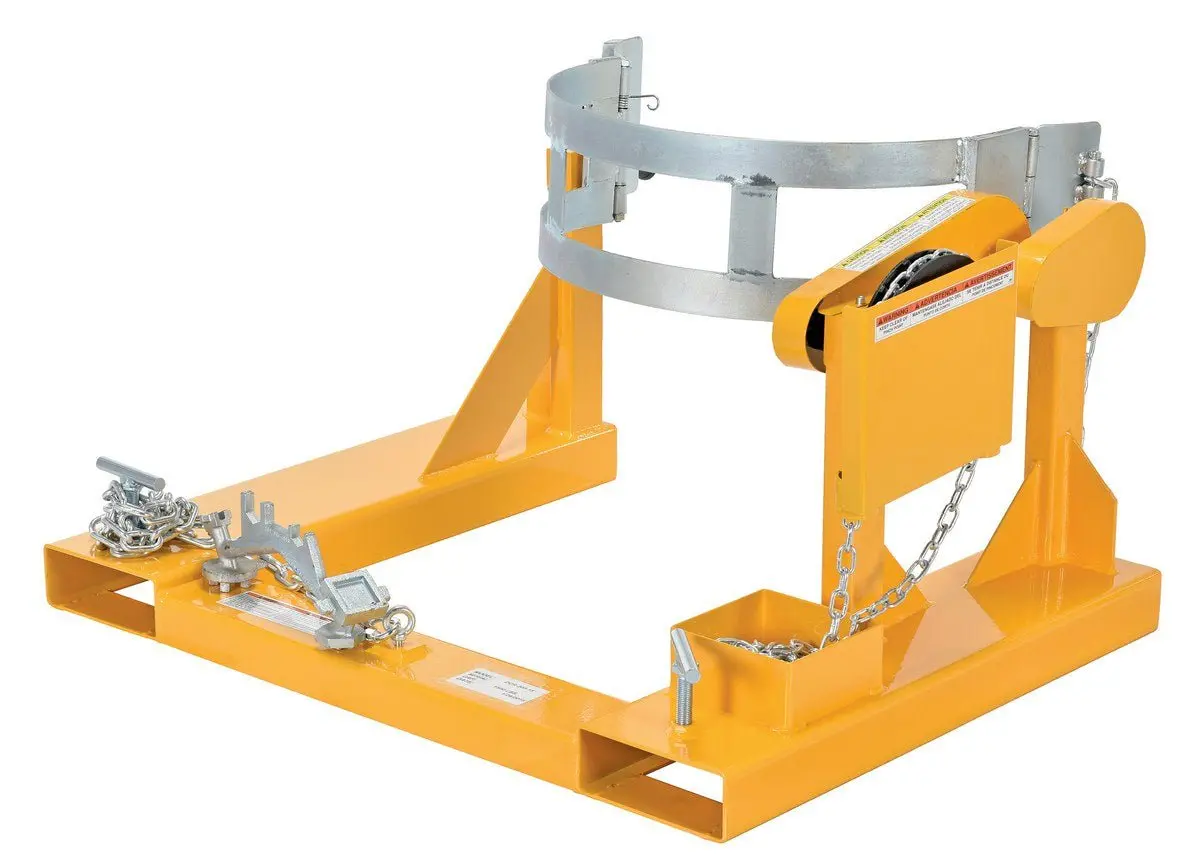

This product allows you to easily transport and rotate 55-gallon steel drums using a fork truck.

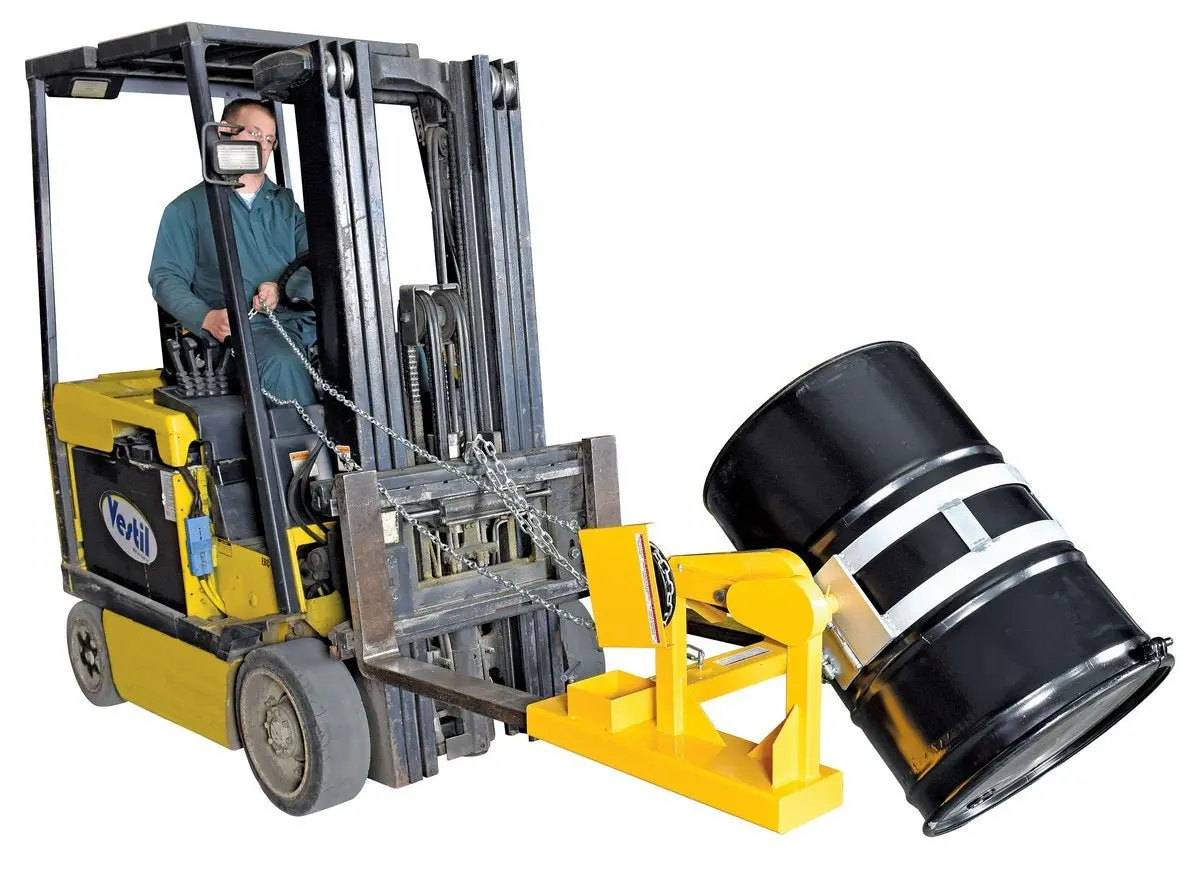

Each standard unit is provided with a 15 foot long chain to allow the drum to be rotated up to 360 degrees from the fork truck operator’s seat. Fork pockets measure 7-5/8″W x 2-5/8″H usable, except DCR-205-8 and DCR-205-15 usable is 7″ W. DC powered units include (2) two 12V batteries, on-board charger, battery charge indicator gauge, and hand held control on a 4 ft. to 20 ft. long coil cord. Safety restraint is used to secure unit to fork truck. Bung Nut Wrench, model BNW-I, is also included for opening and closing drums.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Fork Mounted Drum Carrier/Rotator | |||||||
| Model | Image | PDF’s | Drum Restraint Method |
Acceptable Drum Styles |
Capacity (lbs) | Crank Turns Per 90 Degrees Rotation |
Wt. (lbs) |
| 15 Foot Pull Chain Rotation | |||||||
| DCR-205-8 |  |
   |
33″ Chain | 55 Gallon Steel | 800 | 10 | 228 |
| DCR-205-15 |  |
|
33″ Chain | 55 Gallon Steel | 1,500 | 10 | 222 |
| DCR-205-20 |  |
|
Dual Ratchet Strap | 55 Gallon Steel | 2,000 | 15 | 229 |
| 12V DC Battery Powered Rotation | |||||||
| DCR-205-8-DC |  |
|
36″ Chain | 55 Gallon Steel | 800 | — | 375 |
| DCR-205-12-DC |  |
|
36″ Chain | 55 Gallon Steel | 1,200 | — | 375 |
KEY: = Approval Drawing — = Warranty — = Testing Certificate
