Description

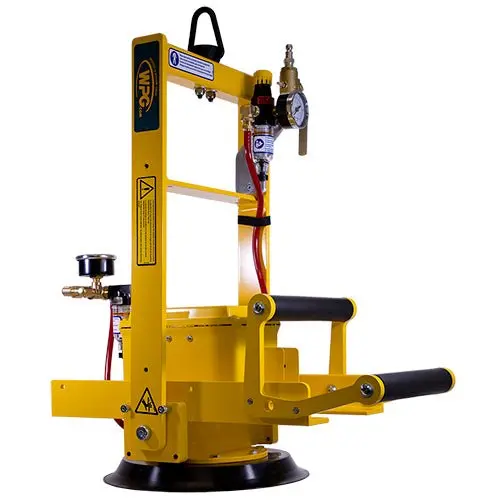

FLAT LIFTER 300 Single Pad Vacuum Lifter designed for lifting heavy objects, glass, and stone
FL1 Lifter Series Full Specifications
| Stock# | Model# | Description | Load Capacity | Power |
|---|---|---|---|---|
| 97500 | FL1HV11DC | Battery power provides cord-free operation. | 300 lbs. [135 kg] | DC |
| 97505 | FL1HV11AIR |
Uses compressed air – never lose time charging batteries. |
300 lbs. [135 kg] | Air |
| FL1HV11ACS | FL1HV11ACS | SPECIAL ORDER:
Corded, AC outlet powered lifter – never lose time charging batteries. |
300 lbs. [135 kg] | AC |
With a single vacuum pad for quick attachment and release, this Powr-Grip® vacuum lifter enables ergonomic handling of heavy loads by a single person.
Standard Pad Spread:
11″ x 11″ [279 x 279 mm]
Standard Vacuum Pad:
10″ [25 cm] diameter, lipped pad
Maximum Load Capacity:
300 lbs [135 kg]
Weight of Lifter:
35 lbs [16 kg]
Standard Operating Power:
Compressed air, 2 SCFM [57 liters/minute] @ 80 psi [552 kPa]
Apply / Release Times:
2 seconds / 3 seconds (approx)
Load Movement:
Flat to flat
Standard Features:
Vacuum gauge
Vacuum line filter
Vacuum reserve tank
| Load Capacity | 300 lbs [135 kg] |
| Per-Pad Capacity | 300 lbs [135 kg] |
| Pad Model | HV11 |
| Air Power | Standard |
| Air Pressure | 80 |
| Apply Time (Air Powered) | 2 |
| Release Time (Air Powered) | 3 |
| Weight (Air Powered) | 40 |
| Manipulation | F |
| Max Pad Spread (L) | 11 |
| Min Pad Spread (L) | 11 |
| Max Pad Spread (W) | 11 |
| Min Pad Spread (W) | 11 |
| Max Height | 26.5 |
| Min Ambient Temp | 32°F [0° C] |
| Min Load Temp | 32°F [0° C] |
| Max Ambient Temp | 100° F [38° C] |
| Max Load Temp | 100° F [38° C] |
