Description

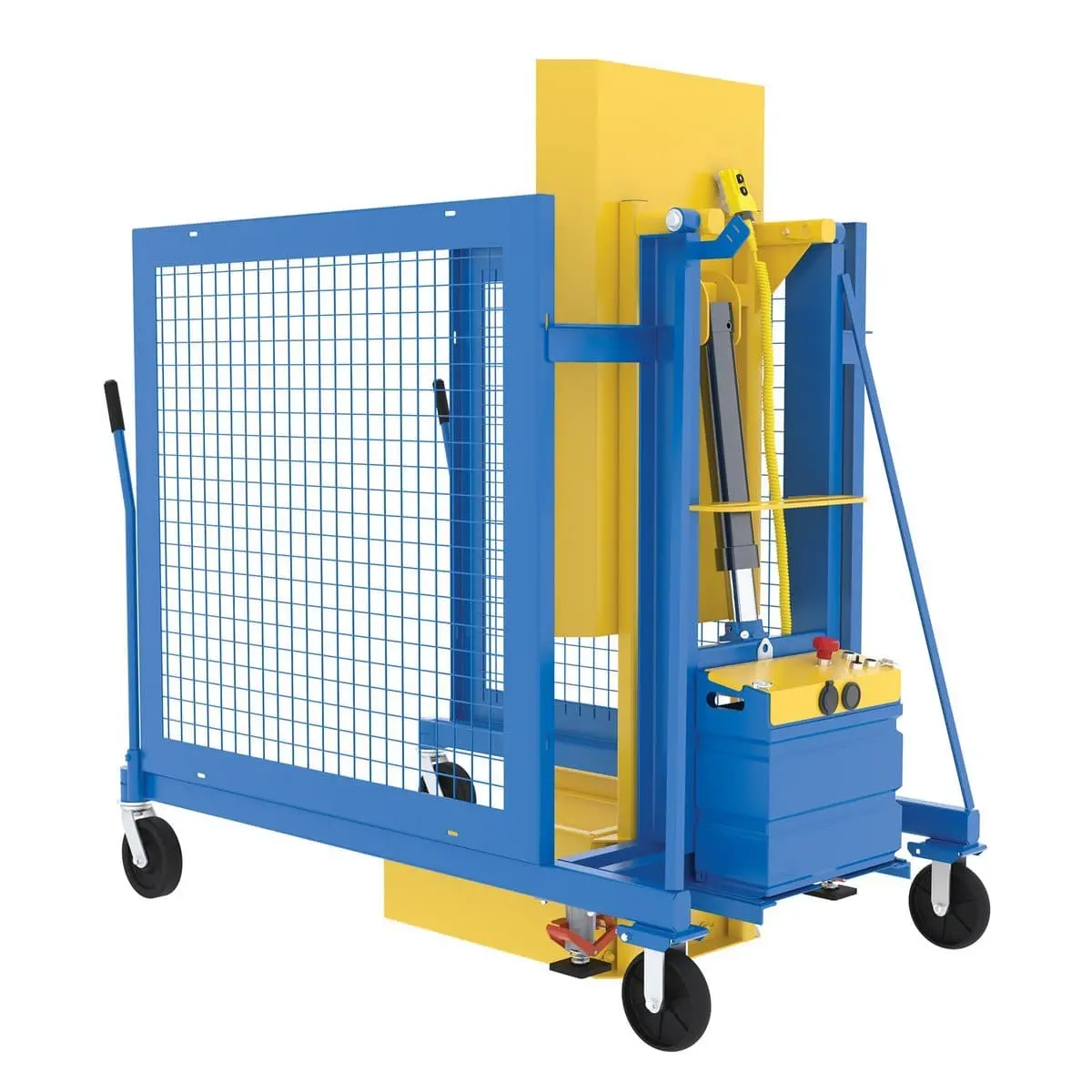

Trash Can Dumpers are designed so one person can easily dump contents of trash cans
Available in DC, or AC powered operation with hand control. DC powered units include one (1) 12V battery and an on-board battery charger, battery charge indicator gauge are standard. Heavy-duty steel construction with 8″ x 2″ glass filled casters. Two rigid and two swivel casters for portability. Two adjustable floor locks are also included. Maximum dump angle is 135 degrees. Works with models # TH-32/64/95 (without foot lid lifter features) trash cans or approved equal.
| Trash Can Dumpers | |||||||
| Model | Image | PDF’s | Operation | Max. Dump Angle | Max. Dump Height | Capacity (lbs.) | Wt. (lbs.) |
| TCD-M-48-AC |  |
   |
115V / 1 Phase AC Powered | 135 degrees | 48-3/4″ | 400 | 703 |
| TCD-M-48-DC |  |
|
12V DC Powered | 135 degrees | 48-3/4″ | 400 | 753 |
| TCD-M-60-AC |  |
|
115V / 1 Phase AC Powered | 135 degrees | 60-3/8″ | 400 | 755 |
| TCD-M-60-DC |  |
|
12V DC Powered | 135 degrees | 60-3/8″ | 400 | 815 |
| TCD-M-72-AC |  |
|
115V/ 1 phase AC Powered | 135 degrees | 72-3/8″ | 400 | 766 |
| TCD-M-72-DC |  |
|
12V DC Powered | 135 degrees | 72-3/8″ | 400 | 826 |
KEY: = Approval Drawing —
= Warranty — = Testing Certificate
