Description
SafeLink Bases

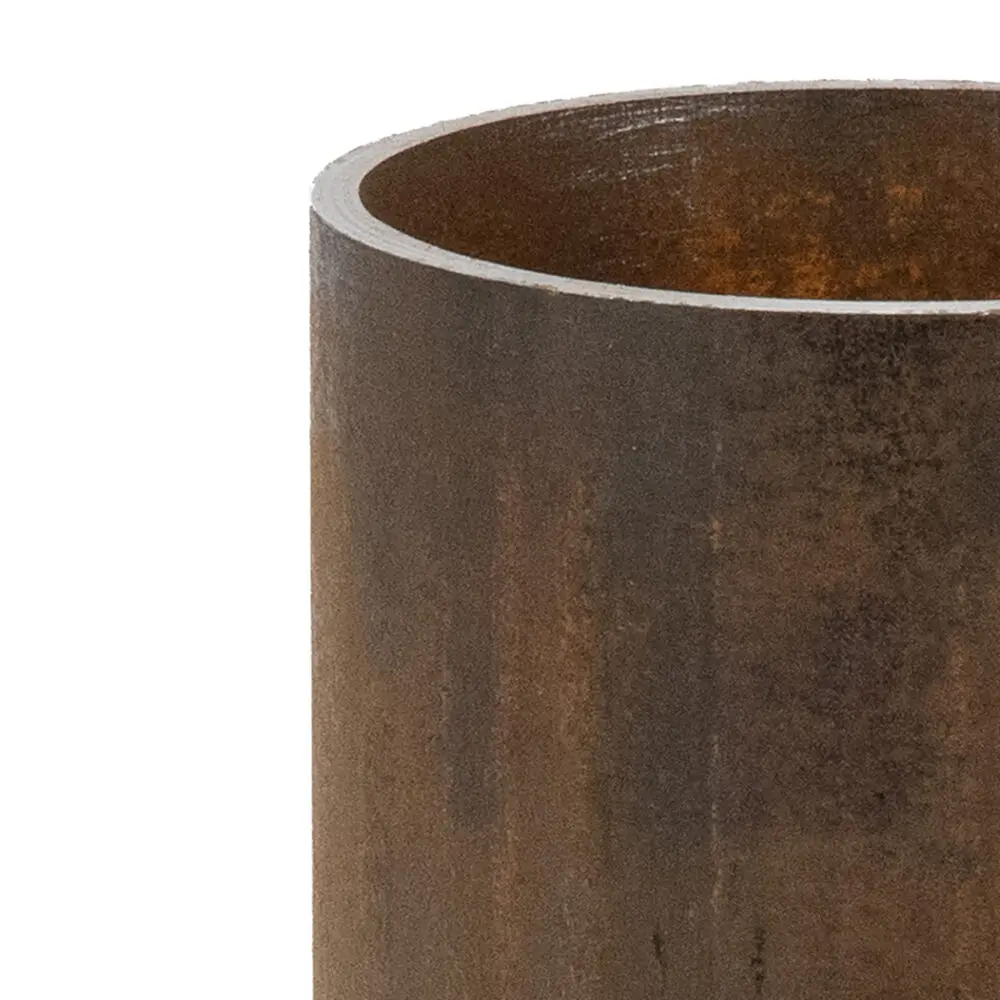

The SafeLink Steel Sleeve is an embedded base that provides extra reinforcement for the post when used with the Safewaze SafeLink HLL System. Specifically engineered for areas with heightened seismic activity, this sleeve enhances the overall stability of the system.
Features:
- Alternative to FS-EX2504 for use in seismic regions
- Cast in place at a minimum depth of 11″ (279.4 mm)
- No closer than 3-1/2″ (89.9 mm) to any concrete edge
- Must be installed into 2,000 psi (13.79 MPa) or greater concrete
- Use with FS-EX5501-5 aluminum posts
Specifications:
| Materials: | Unfinished steel |
| Length: | 12″ (304.8 mm) |
| Inside Diameter: | 3.7″ (94 mm) |
| Outside Diameter: | 4″ (102 mm) |
| Thickness: | 0.16″ (4 mm) |
| Weight: | 7 lbs. (3.2 kg) |
| OSHA Standards: | 1926.502, 1910.66 |
