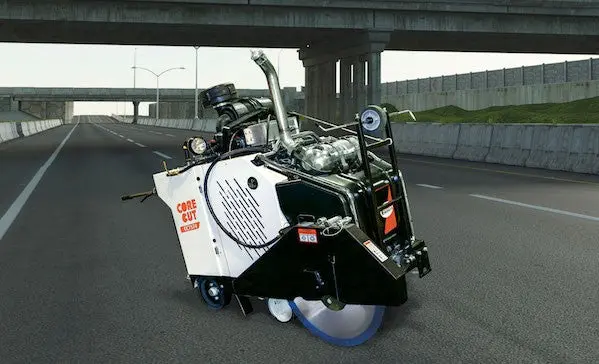

CC7574DD-P In-Line Walk-Behind Concrete Cutting Saw

Price range: $92.01 through $92.94

Quantity
SKU: N/A Category: Brand:

Description

In-line Walk Behind Saw with Increased Production, Lower Maintenance Costs and Better Fuel Efficiency.

20”-48” Blade Capacity

 Diesel Powered

Features & Benefits:

  • Tier 4 Final Deutz® diesel engine
  • Available with enhanced clutch assembly that allows the blade to be disengaged while the engine is running (single speed only)
  • Easy maneuvering self propelled drive
  • Strongest frame on the market
  • Hydraulic wheel motor drive
  • Blade shaft gearbox-oil bath for low maintenance
  • 4 stage air filter system
  • 19-3/4” maximum cutting depth
  • Maintenance-free DVERT® diesel oxidation catalytic converter (DOC-only, no DPF).
  • High pressure common rail electronic fuel injection.

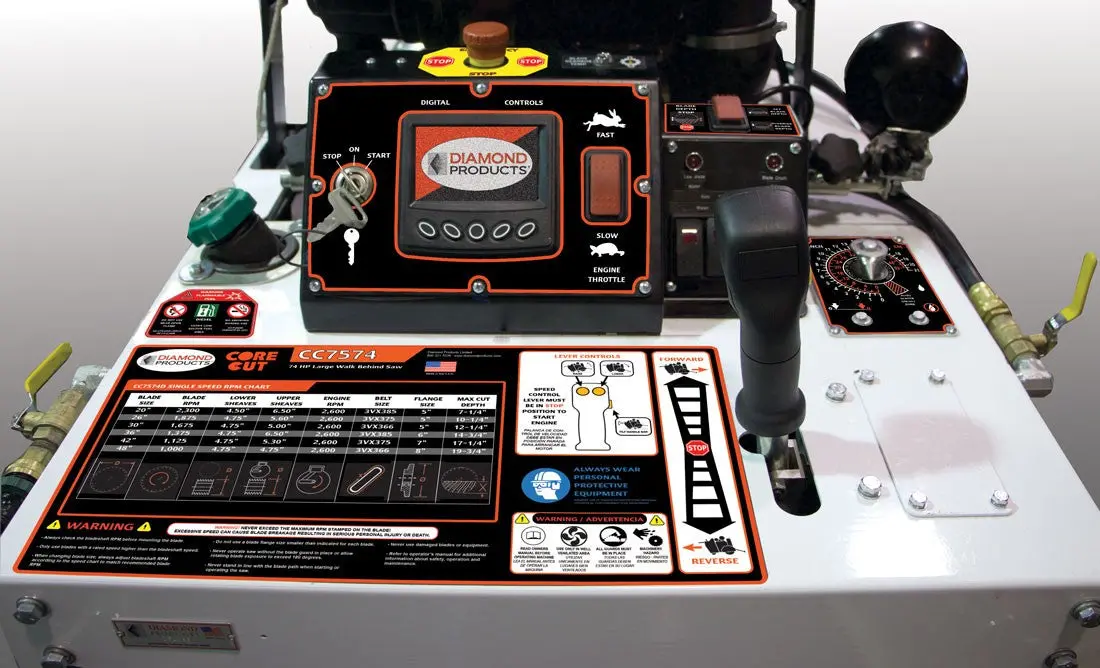

  • Modern computer interface engine controls 20”-48” Blade Capacity

Specifications:

Maximum depth of cut with 20” blade: 7-1/4” (5” flange)
Maximum depth of cut with 26” blade: 10-1/4” (5” flange)
Maximum depth of cut with 30” blade: 12-1/4” (5” flange)
Maximum depth of cut with 36” blade: 14-3/4” (6” flange)
Maximum depth of cut with 42” blade: 17-1/4” (7” flange)
Maximum depth of cut with 48” blade: 19-3/4” (8” flange)
Engine: Deutz® Turbo Diesel
Engine Specs: 4 Cylinder, 3.3 Liter
Max Engine Power: 74.3HP at 2,600 RPM
Power at the Blade Shaft: 74 Horsepower
Emission Regulation: EPA Tier 4 Final Compliant
Blade shaft diameter: 2”
Arbor size: 1” w/drive pin
Blade shaft bearings: Multiple ball bearings in oil bath
Blade shaft drive: 20 V-belts
Blade mounting: Right or Left
Blade raise & lower: Electro-hydraulic pump
Blade Coolant: Dual multi-spray tubes
Drive speed: 0-250 feet/min forward and reverse
Transmission: Hydro pump powering dual wheel motors
Air filter: 4 stage w/restriction indicator
Fuel capacity: 9 gallons
Blade Capacity Sawing Power Source Sawing Engine/Motor Make Motor/Engine Power Speeds Part Number Catalog Number
20″ Diesel Deutz® Turbo 74 HP Single Speed 5801640 112298
26” Diesel Deutz® Turbo 74 HP Single Speed 5801641 112299
30” Diesel Deutz® Turbo 74 HP Single Speed 5801642 112300
36” Diesel Deutz® Turbo 74 HP Single Speed 5801643 112301
42” Diesel Deutz® Turbo 74 HP Single Speed 5801644 112302
48” Diesel Deutz® Turbo 74 HP Single Speed 5801645 112303
30” Diesel Deutz® Turbo 74 HP 3-Speed (20”/26”/30”) 5801652 112310
36” Diesel Deutz® Turbo 74 HP 3-Speed (20”/30”/36”) 5801653 112311
42” Diesel Deutz® Turbo 74 HP 3-Speed (26”/36”/42”) 5801654 112312
48” Diesel Deutz® Turbo 74 HP 3-Speed (30”/42”/48”) 5801655 112313

Explore more from our collection.

Additional information

CC7574DK In-Line Walk Behind Saw

20" Diesel – Turbo – Single Speed, 26" Diesel – Turbo – Single Speed, 30" Diesel – Turbo – Single Speed, 36" Diesel – Turbo – Single Speed, 42" Diesel – Turbo – Single Speed, 48" Diesel – Turbo – Single Speed, 20" Diesel – Turbo w/Clutch – Single w/clutch, 26" Diesel – Turbo w/Clutch – Single w/clutch, 30" Diesel – Turbo w/Clutch – Single w/clutch, 36" Diesel – Turbo w/Clutch – Single w/clutch, 42" Diesel – Turbo w/Clutch – Single w/clutch, 48" Diesel – Turbo w/Clutch – Single w/clutch, 30" Diesel – Turbo – 3-Speed (20"/26"/30"), 36" Diesel – Turbo – 3-Speed (20"/26"/30"), 42" Diesel – Turbo – 3-Speed (20"/26"/30"), 48" Diesel – Turbo – 3-Speed (20"/26"/30")
