Carpet Poles and Rug Rams for Secure Floor Covering Installation

Description

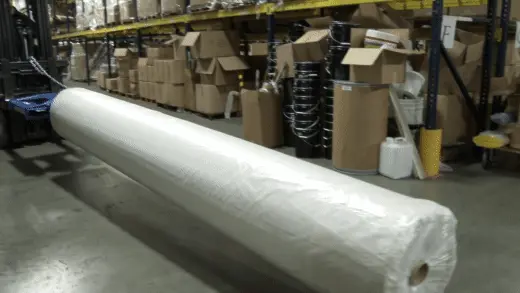

Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles.

Available in either carriage or fork mounted style. 2-3/4″ diameter high strength, rotatable, replaceable pole has tapered tip. All units are made of steel construction and painted blue.

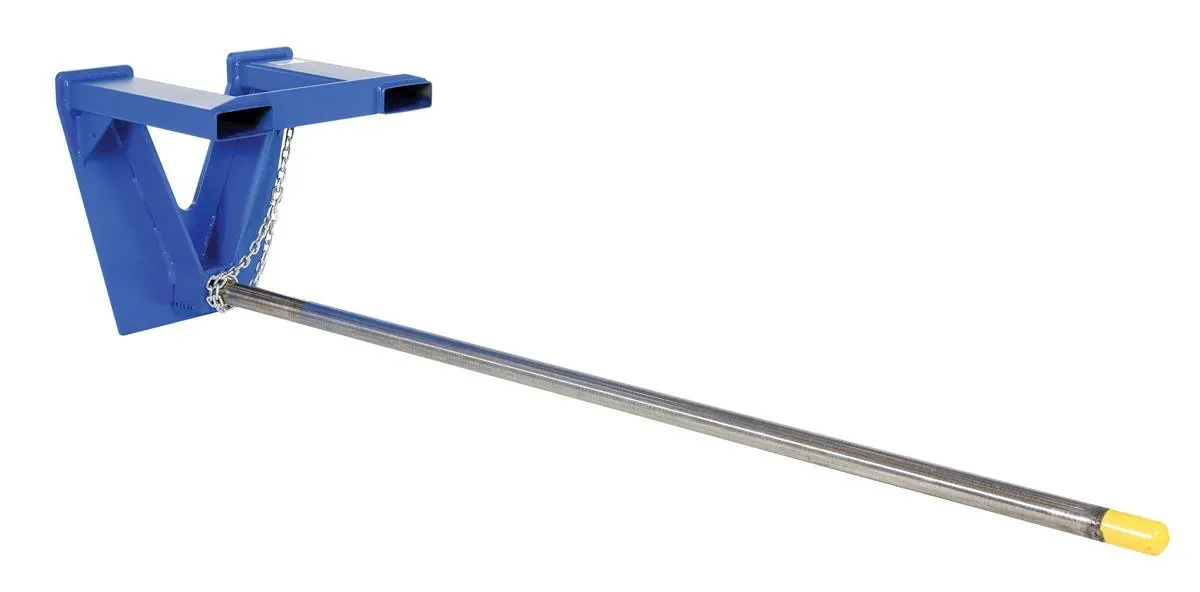

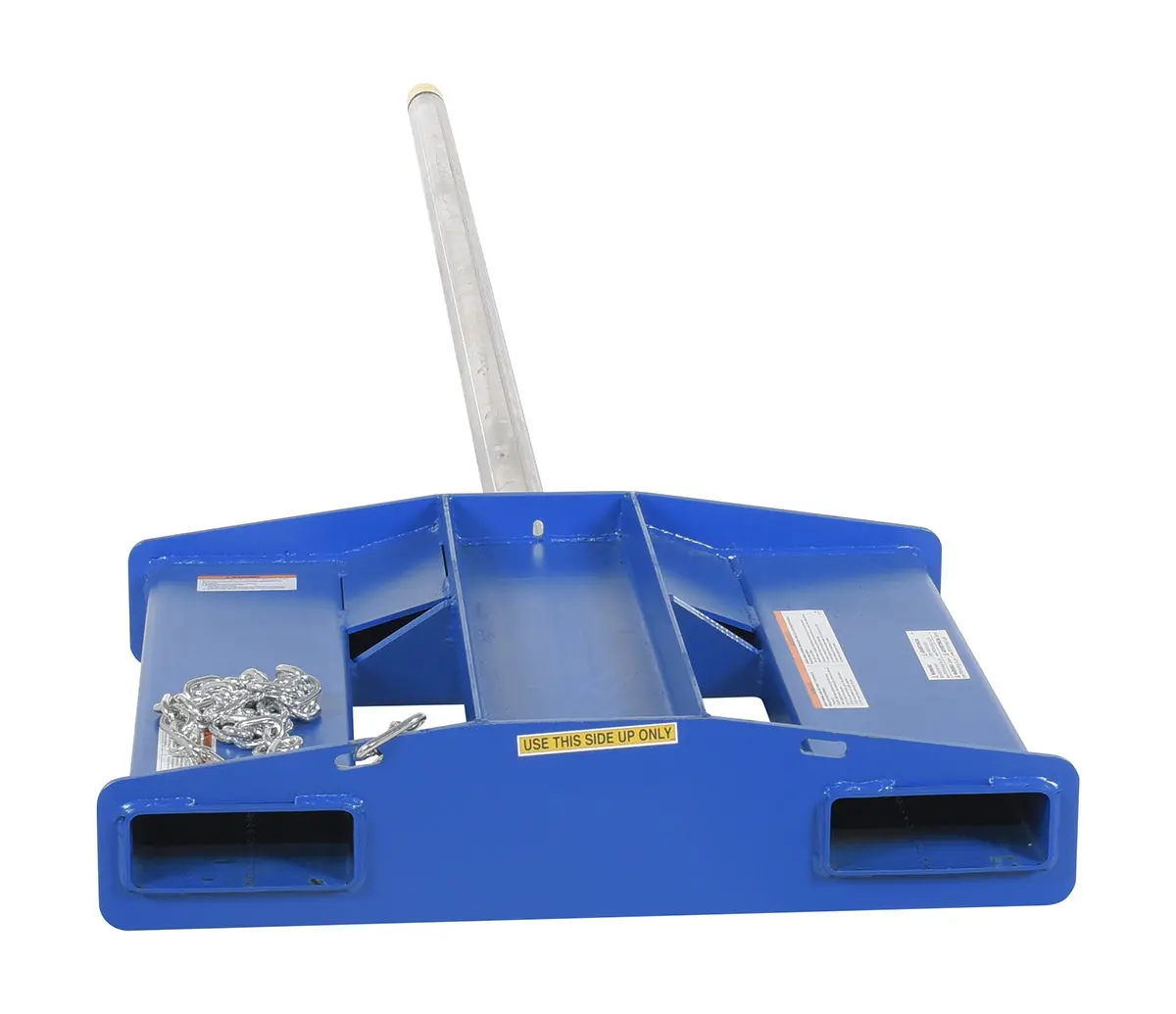

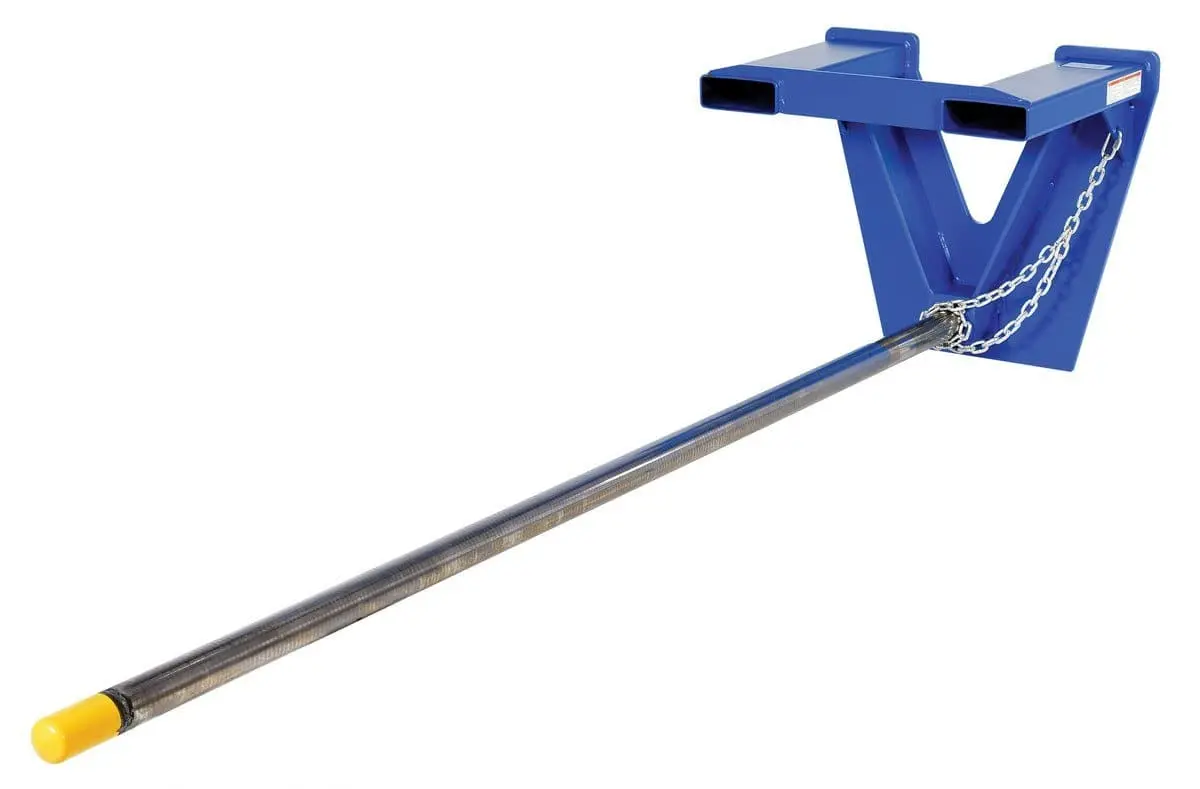

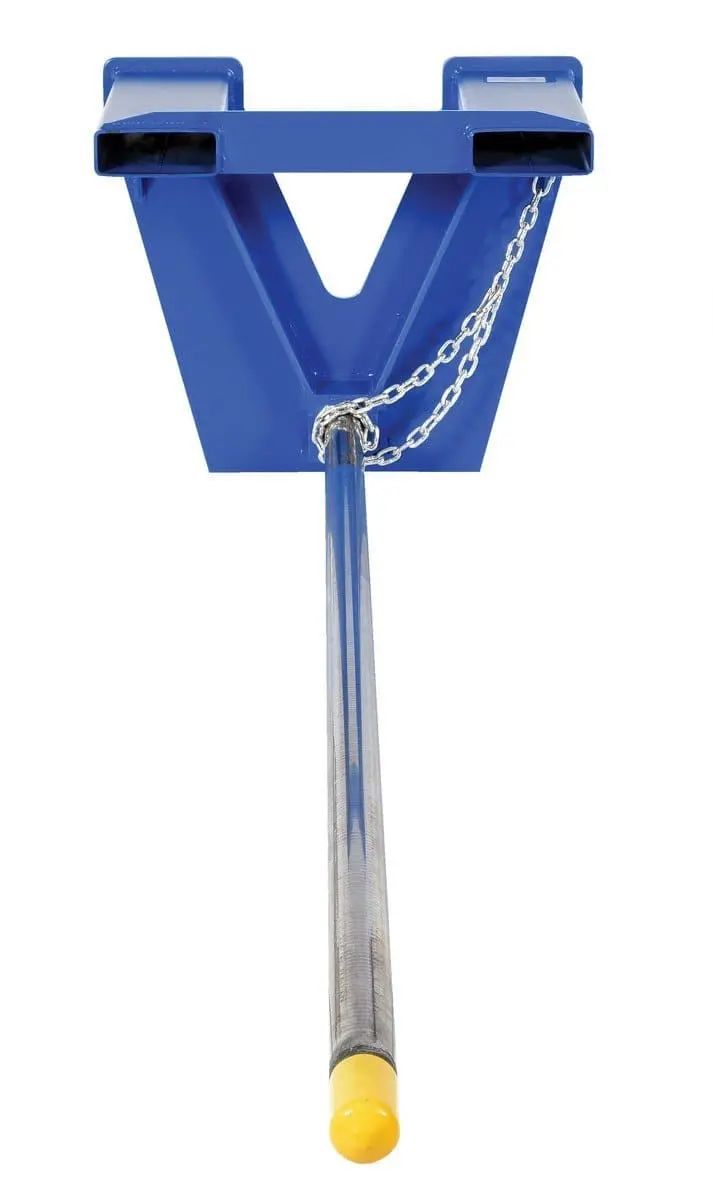

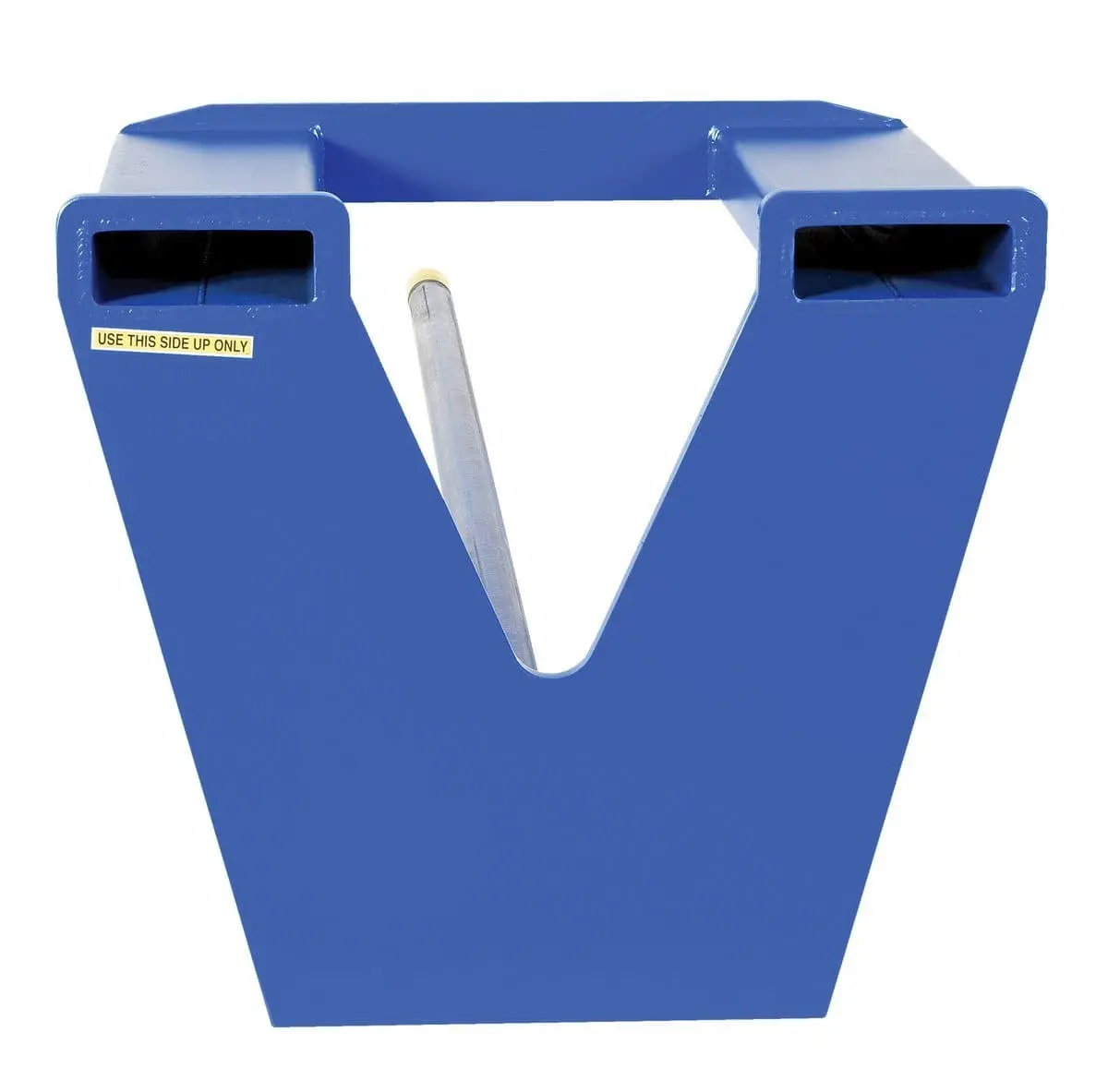

Fork Mounted Rug Rams feature 7-1/2″W x 2-1/2″H fork pockets on models CRP, 7-5/8″Wx2-5/8″H on CRF models, with 24″ centers. Safety chain is included to secure unit to fork truck.

Carriage Mounted Rug Rams are available in class II or III mount and feature a spring-loaded locking pin to secure them to the carriage.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Rug Rams/Carpet Poles
Model	Image	PDF’s	Description	Pole Length	Pole Dia.	Carriage Class	Capacity (lbs.)	Wt. (lbs.)
CRP-108			Fork Mount – Inverted	108-1/2″	2-3/4″	–	2,500	466
CRP-120			Fork Mount – Inverted	120-1/2″	2-3/4″	–	2,200	488
CRP-144			Fork Mount – Inverted	144-1/2″	2-3/4″	–	1,800	528
CRF-108			Fork Mounted	108-1/2″	2-3/4″	–	2,500	389
CRF-120			Fork Mounted	120-1/2″	2-3/4″	–	2,200	424
CRF-144			Fork Mounted	144-1/2″	2-3/4″	–	1,800	450
CR-108-2			Carriage Mount – Class II	108-1/2″	2-3/4″	2	2,500	287
CR-120-2			Carriage Mount – Class II	120-1/2″	2-3/4″	2	2,200	310
CR-144-2			Carriage Mount – Class II	144-1/2″	2-3/4″	2	1,800	342
CR-108-3			Carriage Mount – Class III	108-1/2″	2-3/4″	3	2,500	296
CR-120-3			Carriage Mount – Class III	120-1/2″	2-3/4″	3	2,200	316
CR-144-3			Carriage Mount – Class III	144-1/2″	2-3/4″	3	1,800	478

KEY: = Approval Drawing — = Warranty — = Testing Certificate
