Description

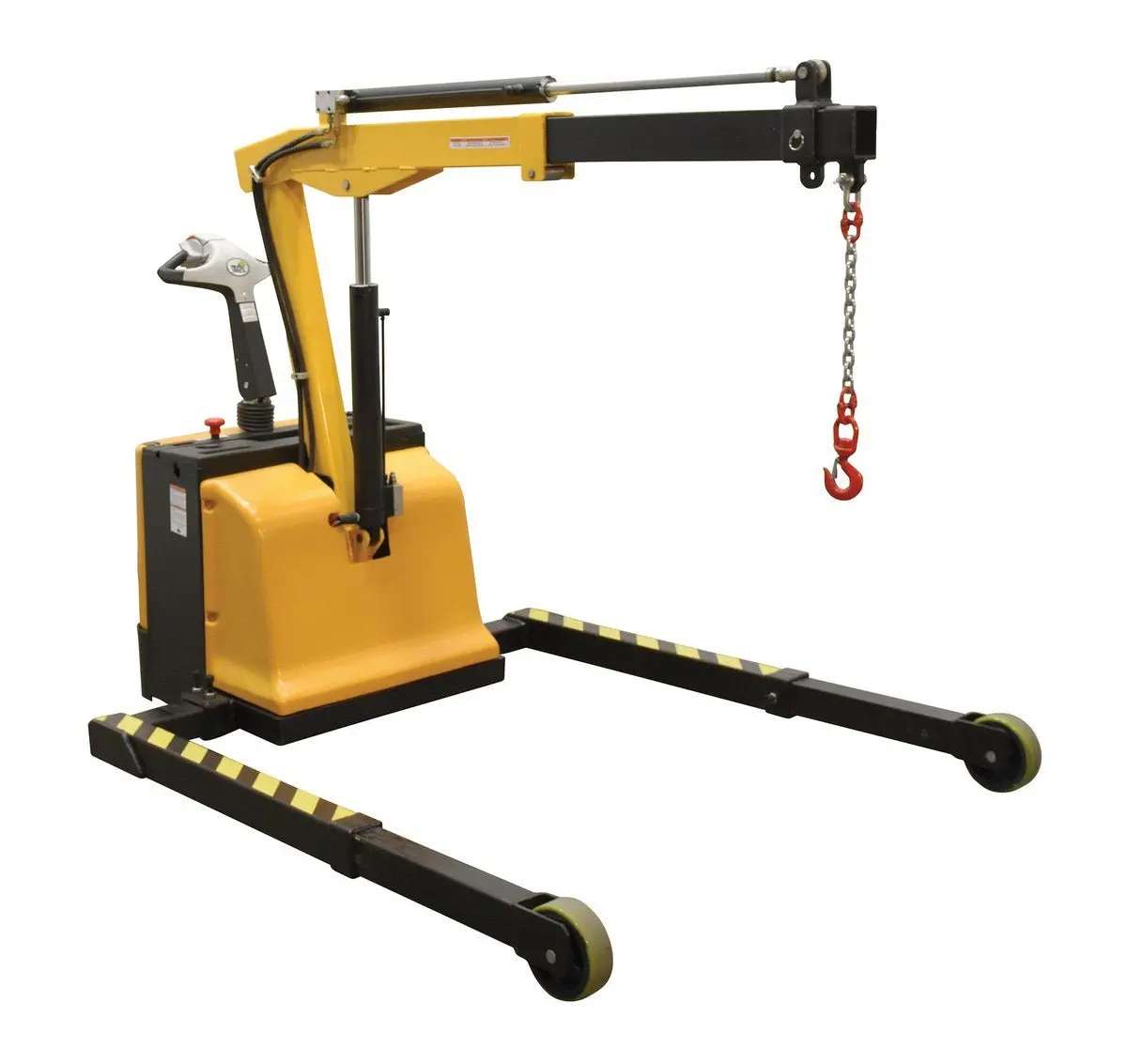

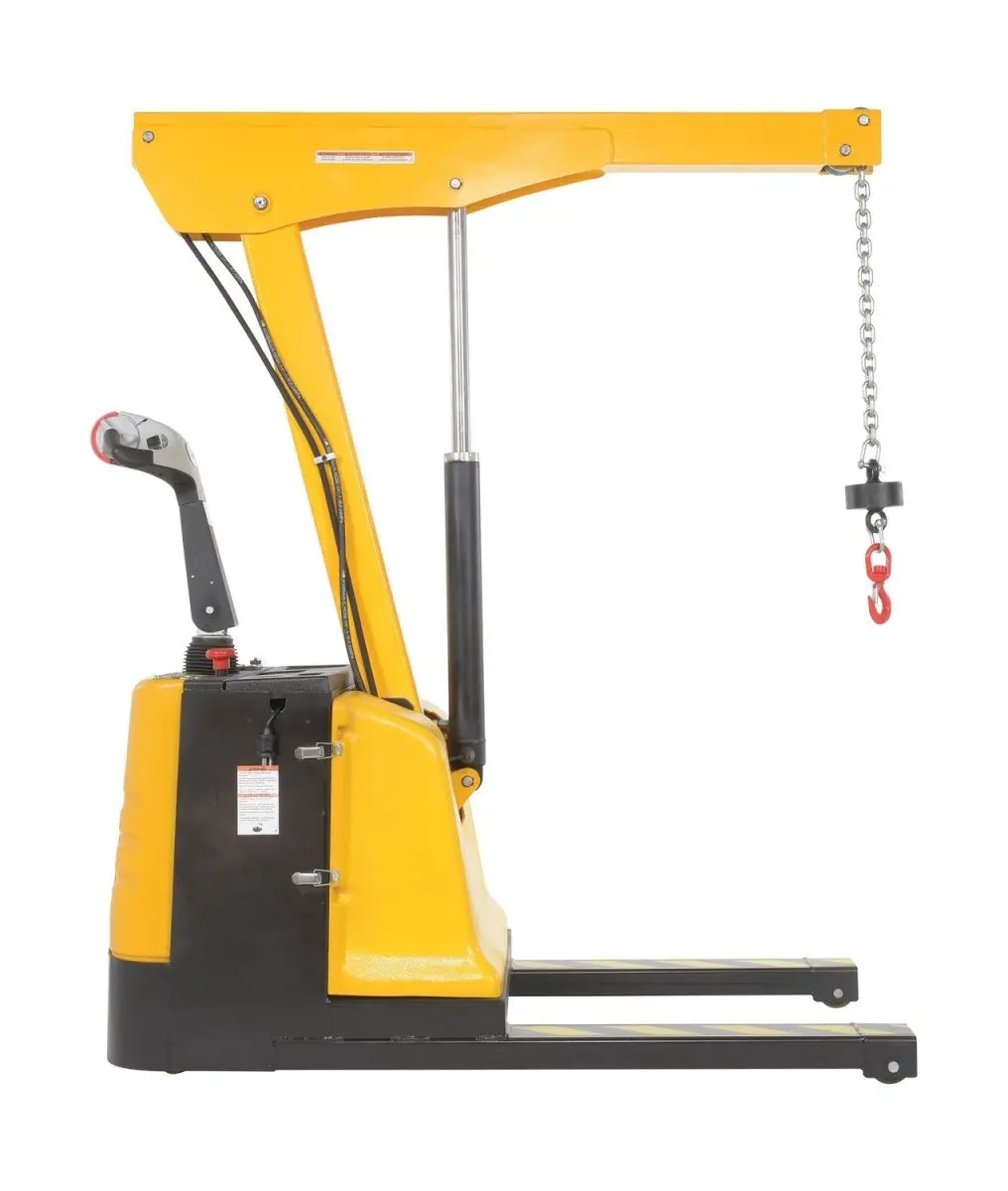

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely.
24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 – 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge – 8 hours when used intermittently. Includes rigid hook with safety latch.
- Model EPFC-25 features adjustable length legs.
- Model EPFC-25-AA features adjustable length legs and adjustable width legs.
- Model EPFC-CB-15 features fixed legs and counter balance design.
KEY:
= Approval Drawing —
= Warranty —
= Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Electric Powered Floor Crane | ||||||||
| Model | Image | Capacity (Retracted) (lbs) |
Capacity (Extended) (lbs) |
Lift Range Retracted/ Extended |
Max Height Crane Extended | Max Length Legs Extended | Retracted Size (WxLxH) |
Wt. (lbs) |
| EPFC-25 |  |
2,500 | 600 | 44-1/4″-94″ | 110 | 103-1/8″ | 30″x80″x63″ | 925 |
| EPFC-25-AA |  |
2,500 | 600 | 44-1/4″-97″ | 110 | 103-1/8″ | 43-3/4″x79-1/8″x67″ | 1,040 |
| EPFC-CB-15 |  |
1,500 | 400 | 44-1/4″-97″ | 105 | — | 33-7/8″ x 107-1/2″ x 66-3/8″ | 1,982 |
KEY: = Approval Drawing — = Warranty — = Testing Certificate
