Description

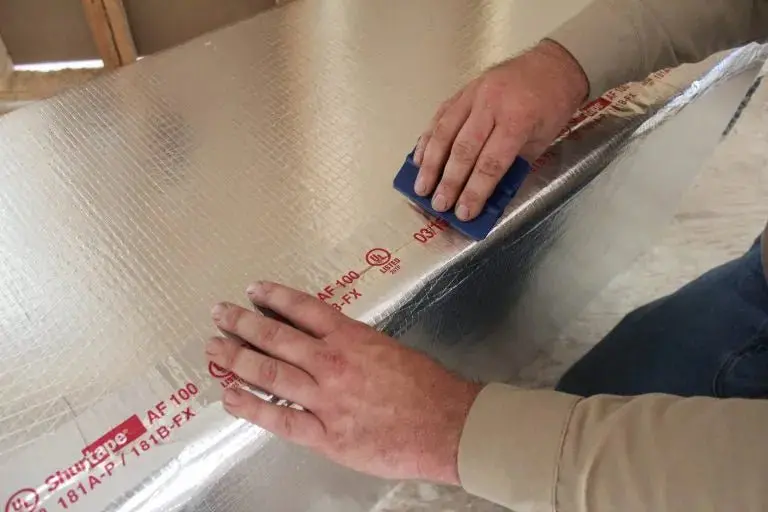

UL 181A-P/B-FX Listed aluminum foil HVAC tape for joining and sealing joints, connections and seams on rigid fiberglass ductboard and flexible air duct.
A tape that “does it all,” AF 100 is engineered to form airtight bonds on joints and seams in temperatures ranging from -20 F to 260 F and in humid conditions to deliver full system closure. As a UL 181A-P listed product, AF 100 can be used in place of a mechanical fastener on rigid ductboard.
Save up to 10%* on Home Energy Costs
*When you properly seal and insulate your home. Duck® brand weatherization products are a part of a complete home sealing and insulation solution. Energy savings is an estimate based on U.S. department of energy recommendations for improvements to a ‘typical’ U.S. existing house built between 1970 to 1989. Your actual savings may vary depending on individual factors, including how you seal and insulate your home, the size and age of your home, local energy costs, regional construction styles, and local climate.
Features & Applications
Markets
Construction
Backing: 2 mil, dead-soft aluminum foil
Adhesive: Acrylic-based adhesive
Liner: Non-contaminating, siliconized, flat, white, paper release liner
Properties & Technical Data
Product Nomenclature: AF 100
| Property | Standard | Metric |
|---|---|---|
| Adhesion to Stainless Steel | 70 oz/in width | 7.66 N/10 mm |
| Elongation | 2% | 2% |
| Service Temperature Range | -20 F to 260 F | -29 C to 127 C |
| Tensile | 25 lbs/in width | 43.8 N/10 mm |
| Thickness – With Liner | 6.8 mils | 0.17 mm |
| Thickness – Without Liner | 4.2 mils | 0.11 mm |
Physical and performance characteristics shown above are obtained from tests recommended by PSTC, ASTM, government agencies or Shurtape Technologies, LLC, Quality Assurance and Technical Service departments and do not represent a guarantee of product performance. Individual rolls may vary slightly from these averages. The user should determine whether the product is fit for a particular purpose and is suitable for the user’s method of application before use.
Downloads
Downloads
Technical Data Sheet
Safety Data Sheet
HVAC Pro Guide
Sizes & Colors
Colors Available:
Lengths Available: 60.1 yd
Widths Available: 2.5 in, 2.83 in
Sizes and colors disclaimer: Lead times may apply. Please contact Shurtape customer service for information related to stock and non-stock sizes and colors.
Storage & Usage Conditions
Tape should be stored in its original packaging in a cool, dry area away from direct sunlight and should be used within 12 months of date of shipment. Surfaces to which tape is applied should be clean, dry and free of grease, oil or other contaminants.
Applicable Standards
UL 181A-P
UL 181B-FX
UL Listed
FSI 25/SDI 50
Tested in accordance with UL 723
