Description

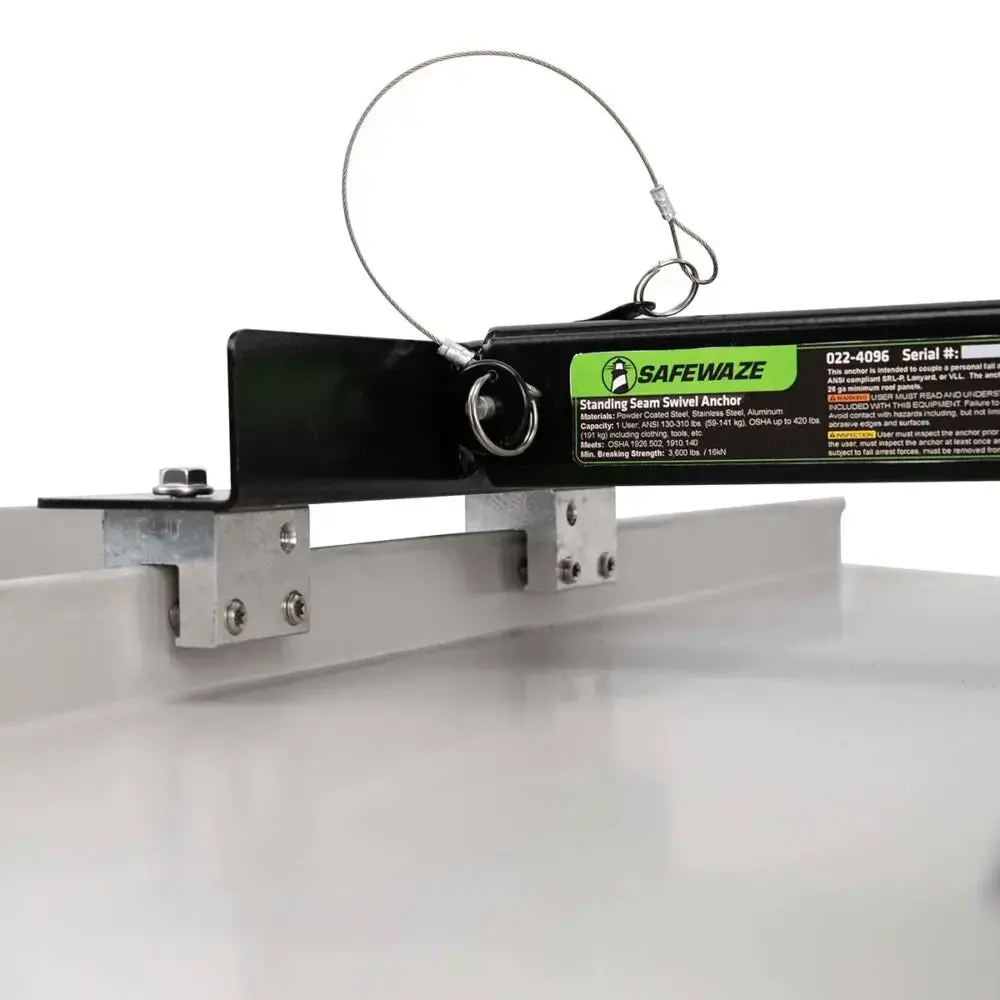

The Standing Seam Swivel Anchor is a non-penetrating roof anchor that is easy to install and versatile to fit different profiles on both flat and pitched standing seam roofs.
The swivel D-ring improves mobility for workers connecting personal SRLs, lanyards and vertical lifelines.
Features:
- Easy to install, reusable non-penetrating anchor point
- Designed for flat or pitched standing seam roofs minimum gauge 26
- Equipped with (4) S-5-U clamps for attachment onto a variety of standing seam profiles
- Adjustable crossarm spans 24″-40″ and locks with detent pins
- 360° swivel D-ring connection point for SRL-Ps, energy absorbing lanyards and VLLs (not for use with HLLs)
| Materials: | Powder coated steel, stainless steel, aluminum |
| Weight: | 19.2 lbs. (8.7 kg) |
| Base Plate: | 27 in. x 12 in. (68.6 cm x 30.5 cm) |
| Height: | 6 in. (15.2 cm) |
| Minimum Breaking Strength: | 3,600 lbs. (16 kN) |
| System Capacity: | 1 user maximum |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | up to 420 lbs. (191 kg) |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
