Description

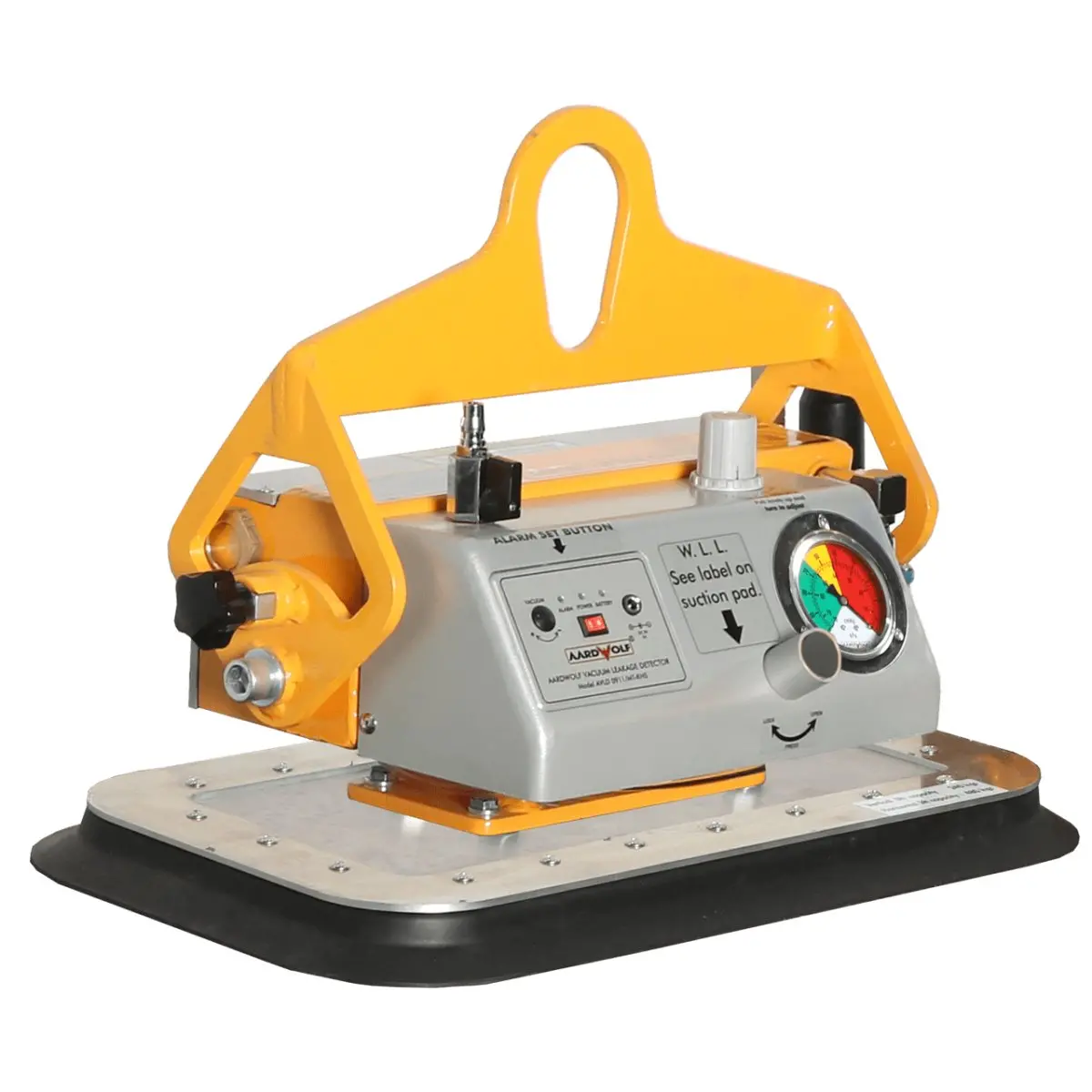

Aardwolf Hand Pump Vacuum Lifter AVLHP480 for horizontal transportation of polished stone, steel plate, glass, and aluminum plate
The AVLHP480 is powered by a hand pump or venturi pump designed to be used in the factory or on the building site. It is especially suitable for the horizontal transportation of non-porous sheet materials such as steel plate, glass, aluminium plate and polished marble or granite.
Features
- Dust and fire resistant
- Attach/release materials with an ON/OFF slide valve
- Acoustic/visual alarm system
- Replaceable suction pads
Specifications
| Metric (mm-kg) | Imperial (inch-lbs) | |
| W.L.L for 300mm pad size | Vertical: 120 Horizontal: 240 |
264.5 529 |
| W.L.L for 520x320mm pad size | Vertical: 240 Horizontal: 480 |
529 1058 |
| Net weight | 14.8 | 32.6 |
| Gross weight | 20.7 | 45.6 |
| Packaging dimension | 530x370x420 | 20.9×14.6×16.5 |
