Description

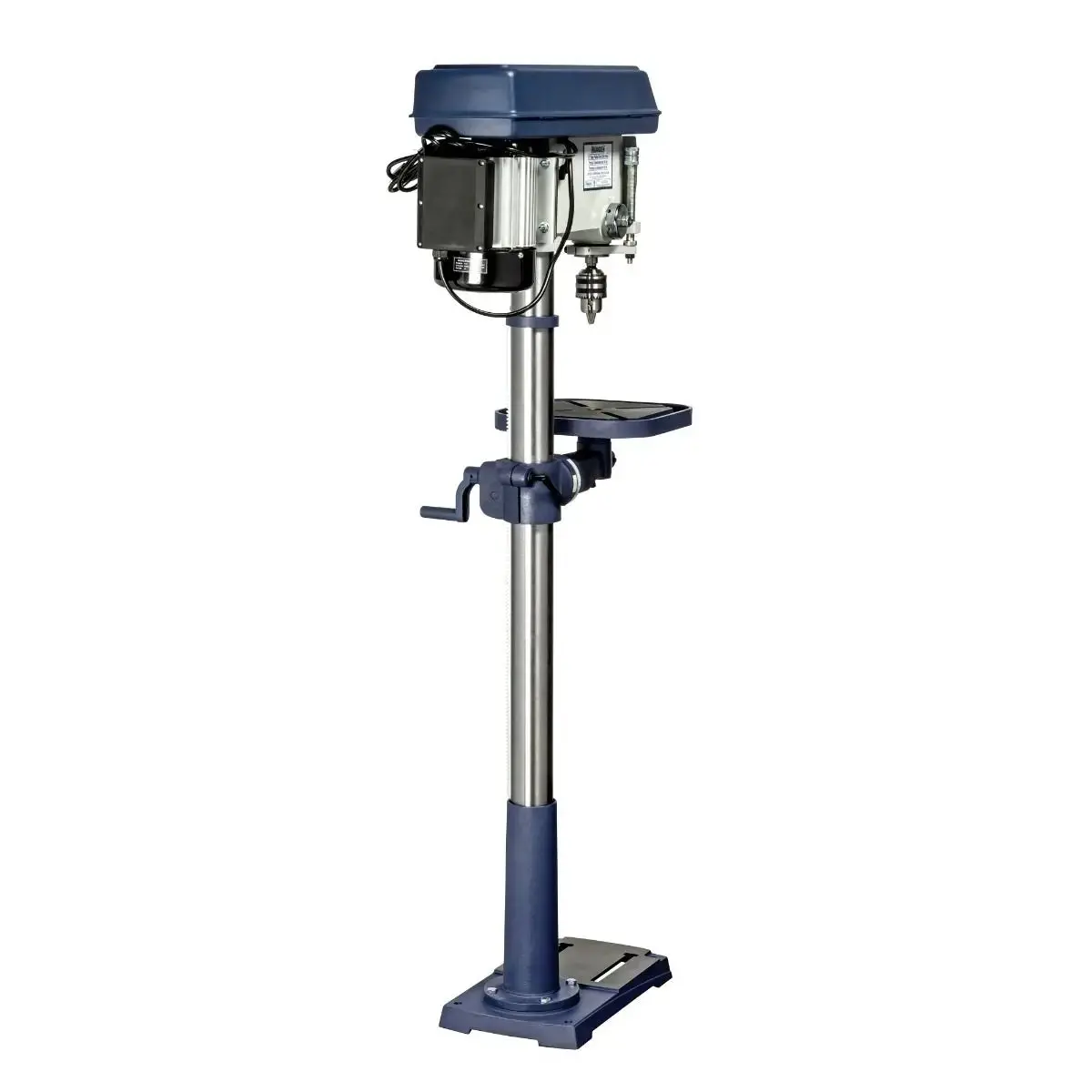

The Palmgren step pulley drill presses have the weight and rigidity to maintain the built-in tolerances for metal and woodworking applications.
16 Speeds allow the operator to drill a wide range of large and small holes into a variety of materials. The cast iron table can swivel around the column, tilt L to R up to 45° or rotate 360°.
- Quick change vertical depth stop for repetitive accurate operations
- Rack and pinion table height adjustment
- Front mounted locking rocker switch to prevent unauthorized use
- 5/8″ Chuck and key
| More Information | Details |
|---|---|
| AMPS | 10A |
| Country of Origin | CN |
| Drill Press Model | Floor Model |
| Drill Press Type | Step Pulley |
| Motor HP | 3/4 |
| Overall Dimensions (LxWxH) | 18″D x 12″W x 62″H |
| Speed Range | 240 to 3200 |
| Spindle Taper | MT2/JT3 |
| Spindle Travel | 3.34″ |
| Swing | 15″ |
| Table Dimensions | 12″ x 12″ |
| Voltage | 120 |
| Warranty | 3 Year |
| UPC | 726896802015 |
| Unit of Measure | Each |
| Product Weight (lbs) | 148 |
Product Manual
