Description

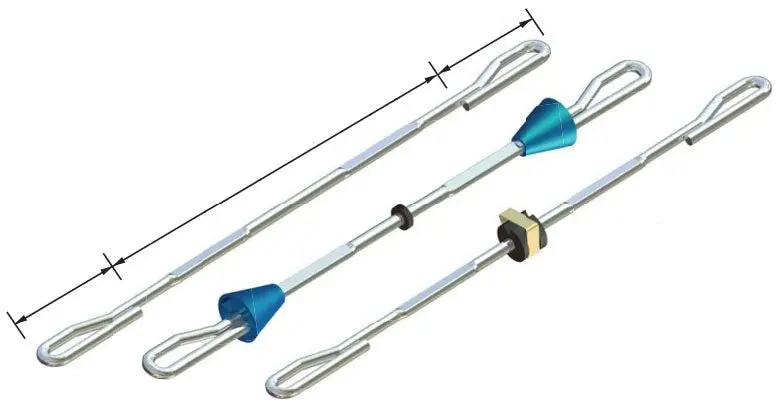

OCM Loop Ties are designed to provide dependable tying systems for OCM Steel Plywood Forms.
OCM Loop Ties are manufactured from high strength steel designed to provide a reliable method for securing formwork.
Features:
- Available in 4″ to 120″ wall size. Longer sizes available on special order.
- Available with neoprene washer placed near the center of the tie. The water-resistant washer prohibits water seepage along the tie.
- Available with Plastic Cones in 1″ and 1-1/2″
Specifications:
| OCM Part No. | Wall Size | Weight per pcs lbs. |
Carton Qty | Safe Working Load lb. |
|
|---|---|---|---|---|---|
| Heavy 2-1/8″ Ends |
LTHD-06 | 6 | 0.21 | 100 | 3000 |
| LTHD-08 | 8 | 0.23 | |||
| LTHD-10 | 10 | 0.25 | |||
| LTHD-12 | 12 | 0.28 | |||
| LTHD-14 | 14 | 0.31 | |||
| LTHD-16 | 16 | 0.34 | |||
| LTHD-18 | 18 | 0.36 | |||
| LTHD-19 | 19 | 0.38 | |||
| LTHD-20 | 20 | 0.39 | |||
| LTHD-24 | 24 | 0.44 |
